• DESCRIPTION

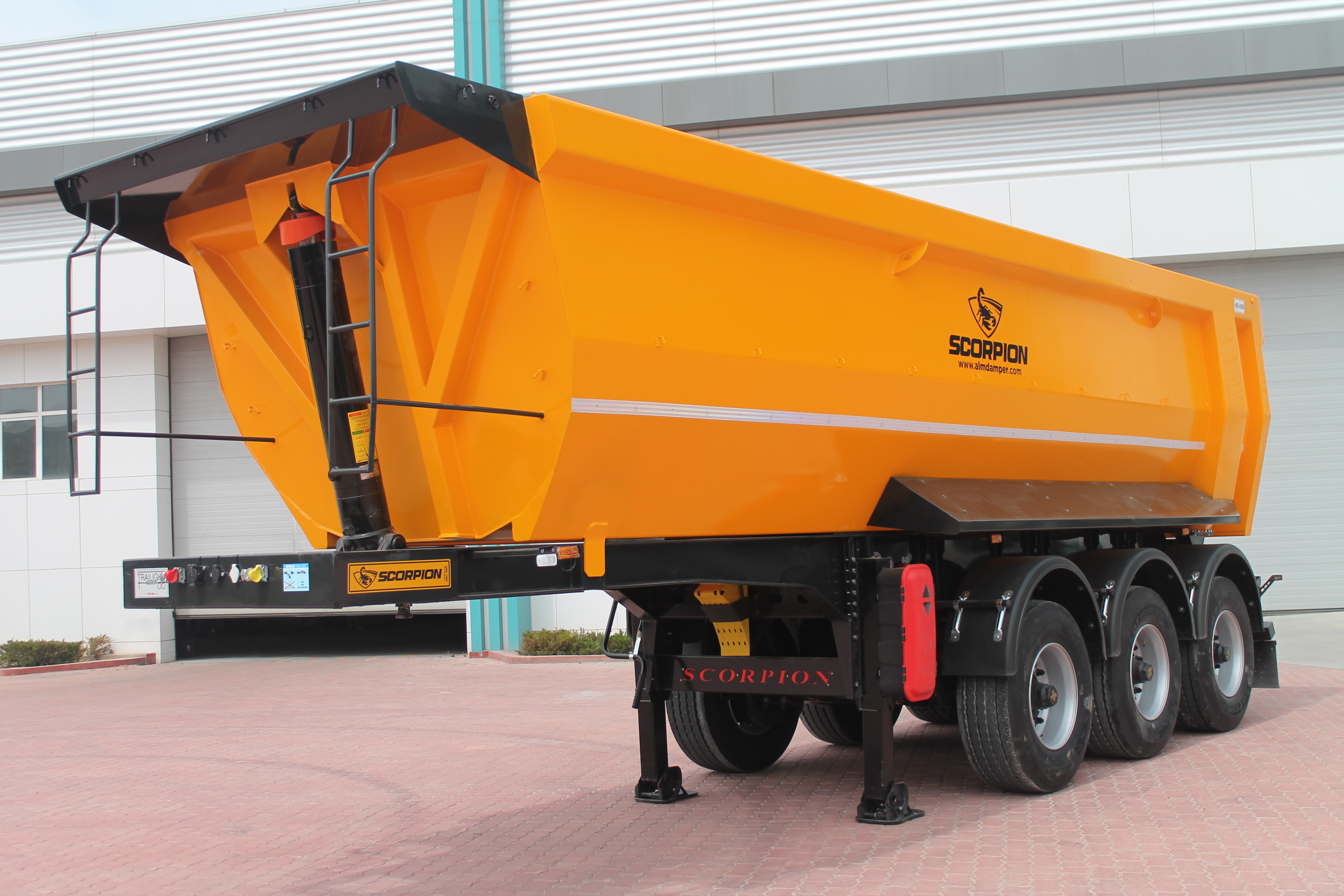

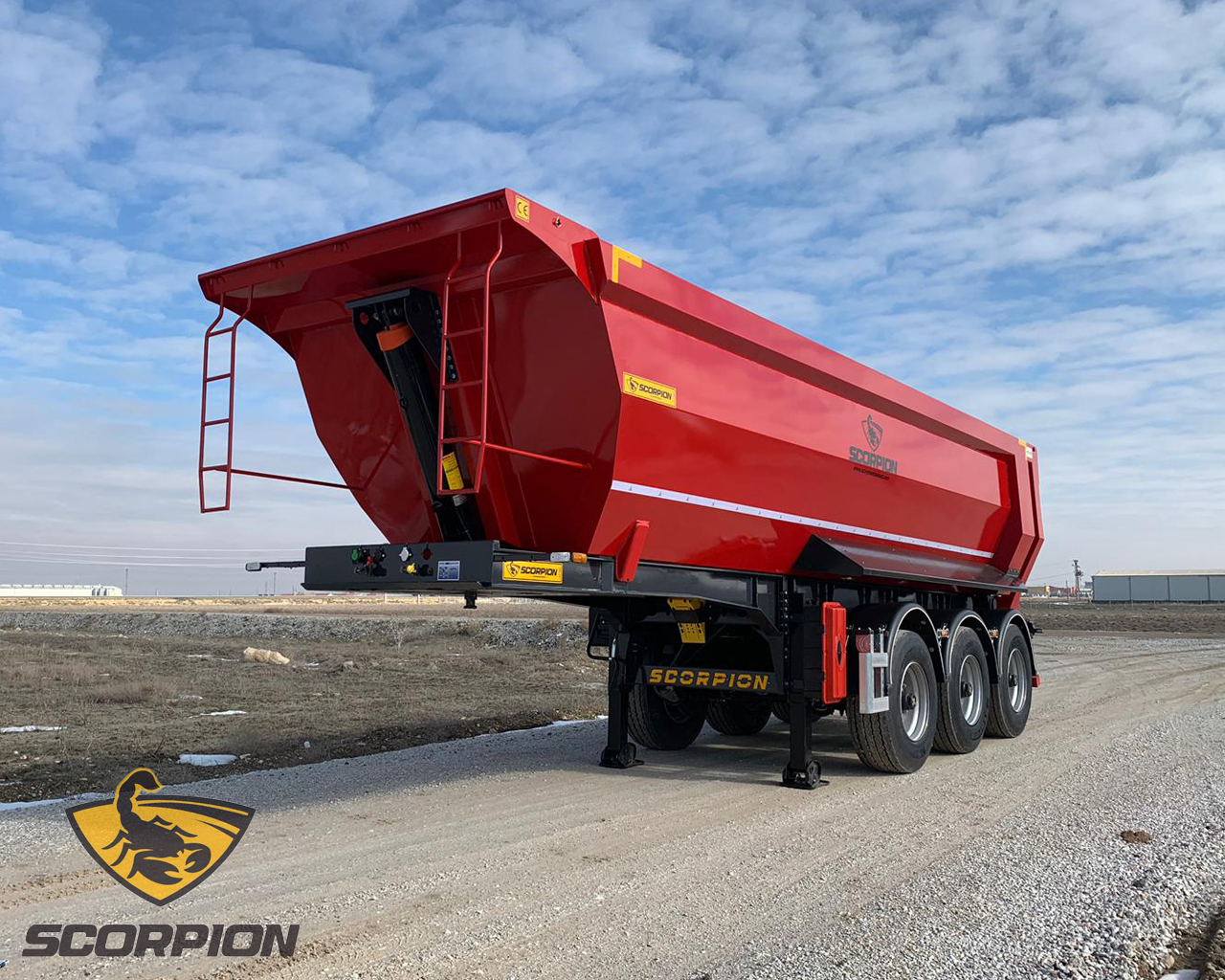

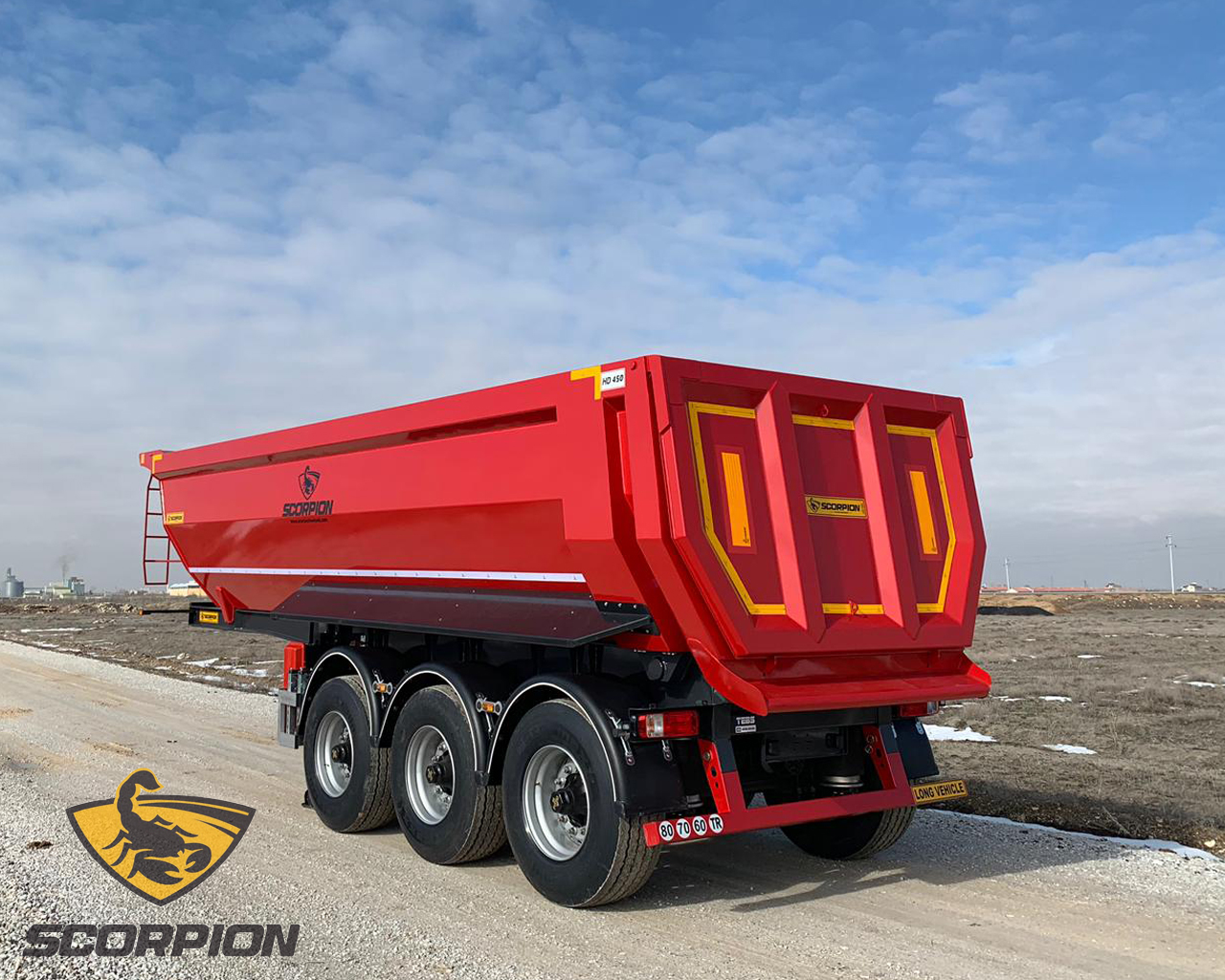

CATEGORY: Tipper Semi-Trailer
TYPE: Tipper Trailer
WHATSAPP SUPPORT:
SHARE:

• TECHNICAL DETAILS

CHASSIS: Structure steels in accordance with TS EN 10025- 2 2004

TIPPER BODY: 4/5 or 6mm HARDOX 450, DOMEX S700, ST52 (S355 JR)

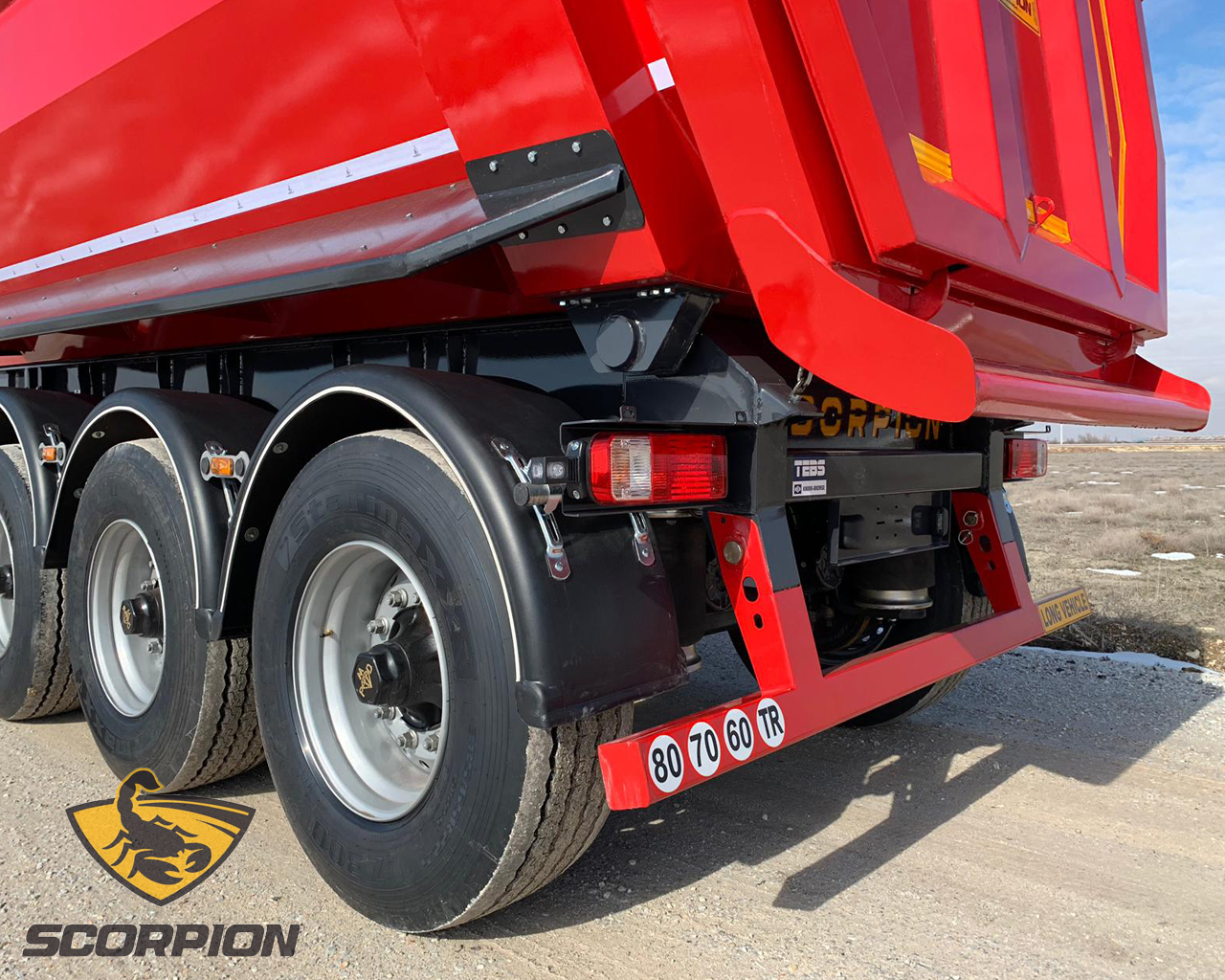

AXLE GROUP: 3pcs 12-tonner R:22.5” Turkish brand drum or disc brake axles / European Brand axles (SAF Holland)

SUSPENSION: Air Suspension TIRES AND RIMS: 385/65 R 22.5” - 385/55 R 22.5” tires

ELECTRICAL SYSTEM: 24 V electrical system (in accordance with European Standards)

BRAKE SYSTEM: EBS brake system (2S / 2M) in conformity with 71 /320/EWG and ECR 13 Regulations

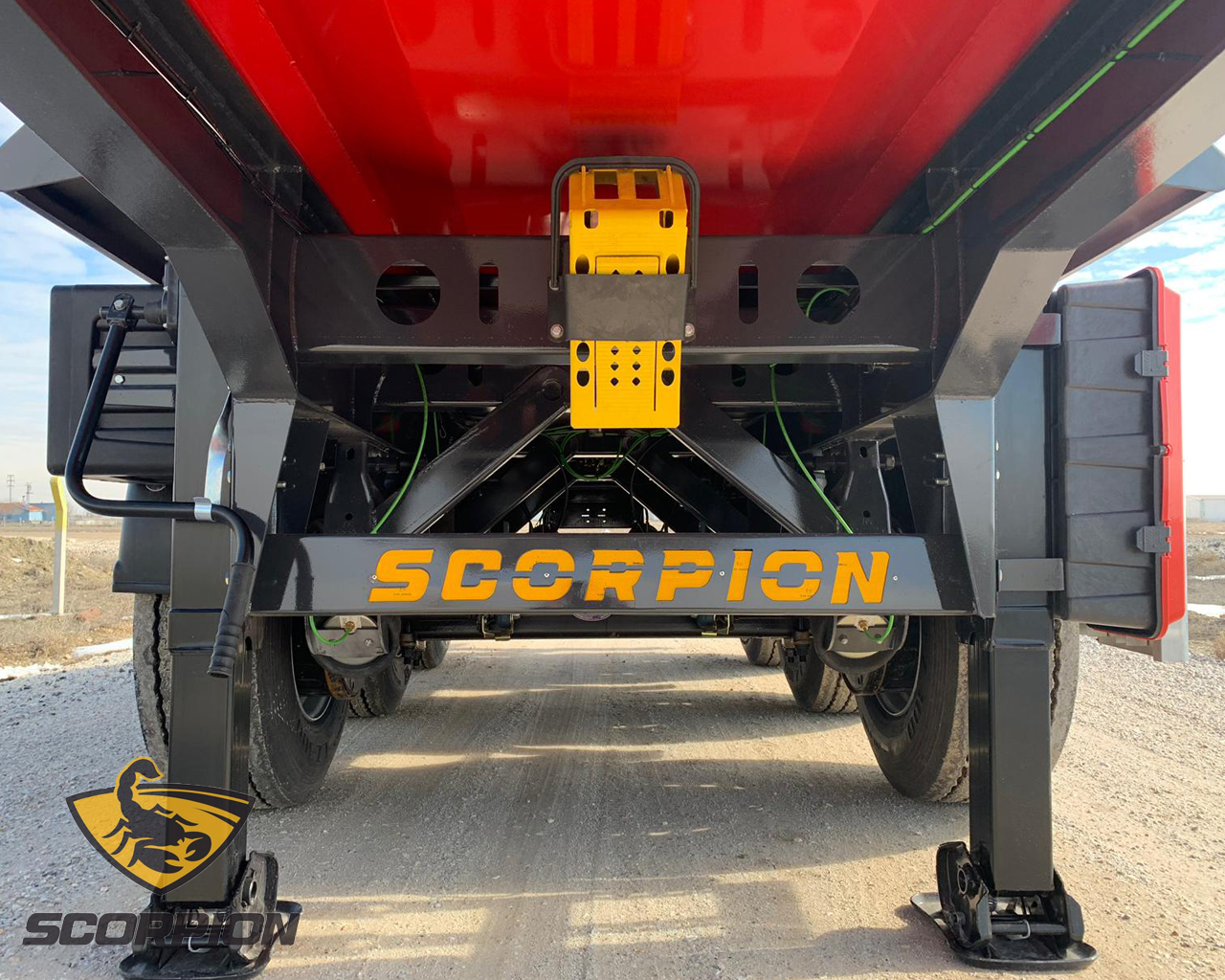

KING-PIN: 2 “ Steel King-Pin in accordance with DIN 74080 is used.

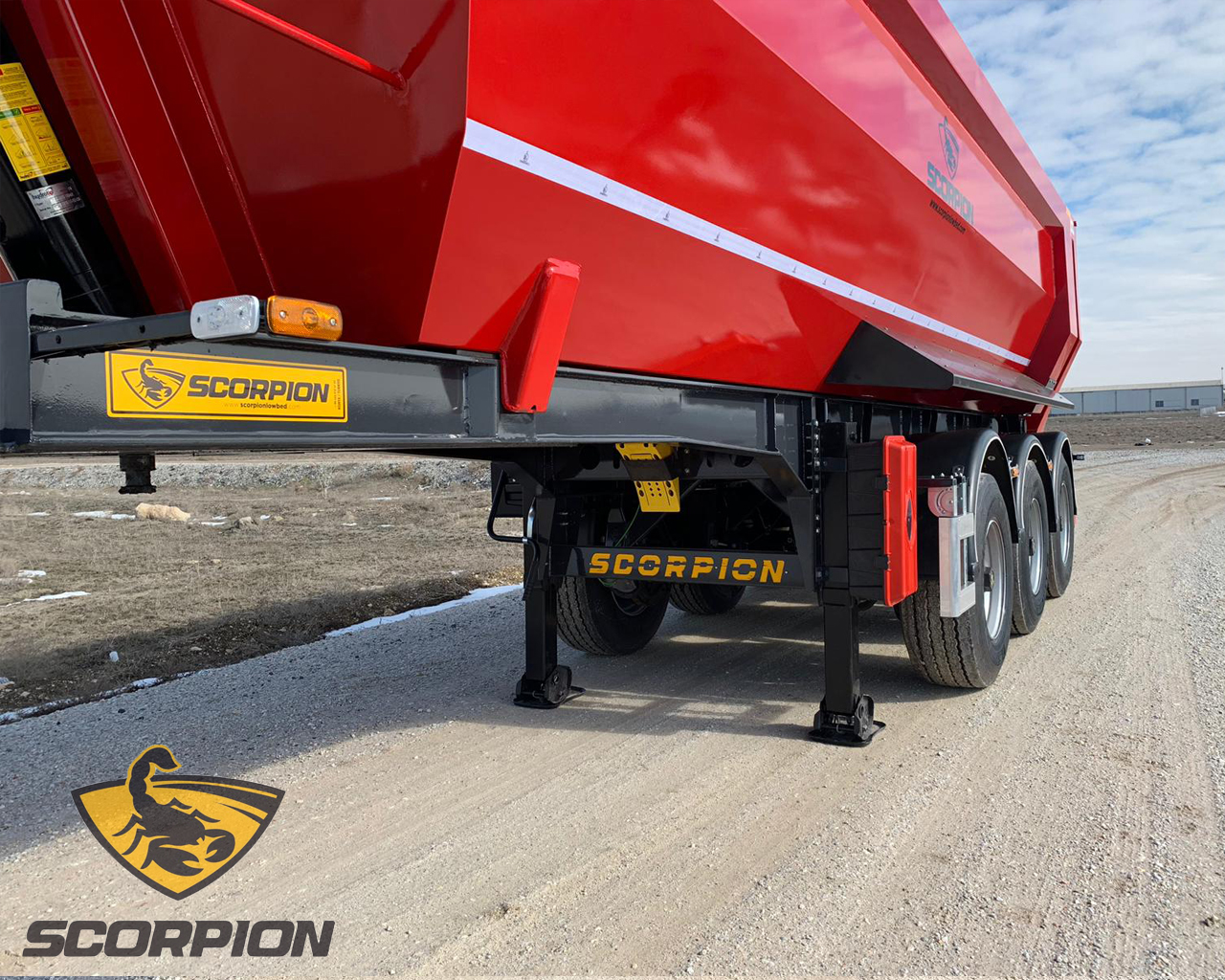

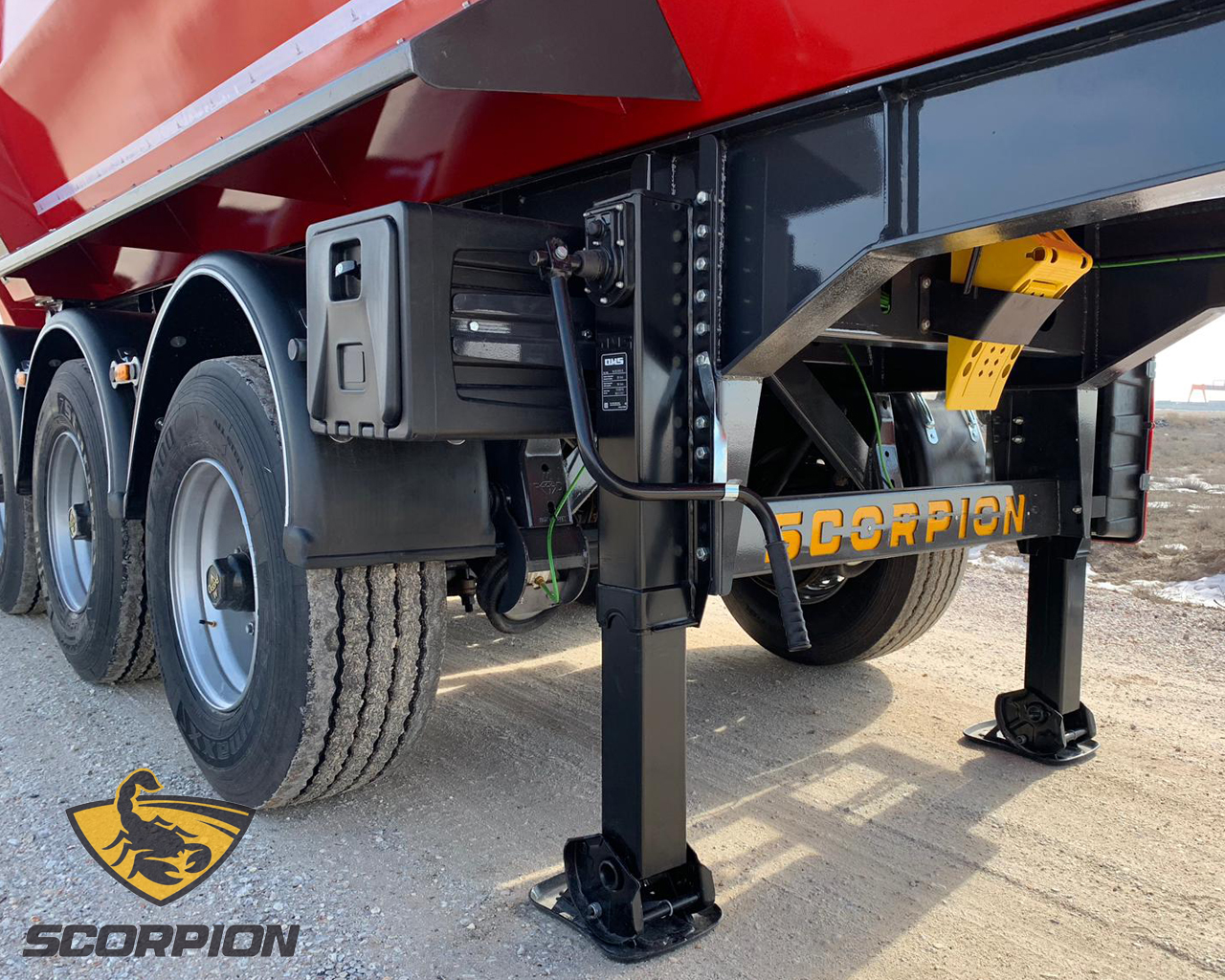

LANDING GEAR: 24 – tonner 850mm mechanical landing legs

GROSS WEIGHT: 39.000 kgs

NET WEIGHT: 7.300 kgs

LADEN MASS WEIGHT: 31.700 kgs

Main chassis and entire vehicle will be painted in paint oven as Washing + Sandblasting + two-coat epoxy primer + two-coat acrylic paint.

Color will be specified according to the customers’ requests.

Wheel Chock: Plastic (1 Pc)

Fire Extinguisher Box: 1 Pc.

Water Tank: 1 Unit

Tool Box: 1 Pc (50cm)

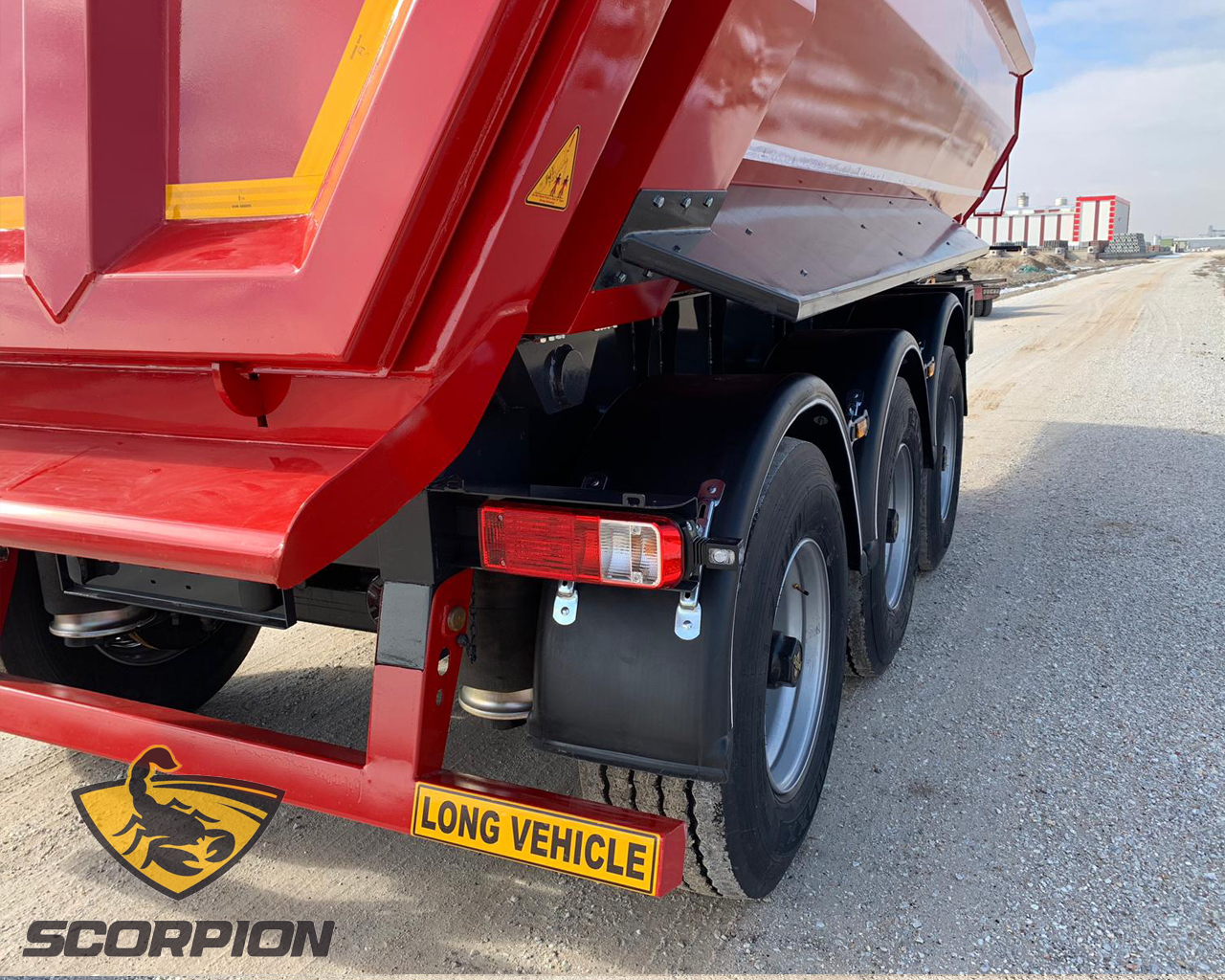

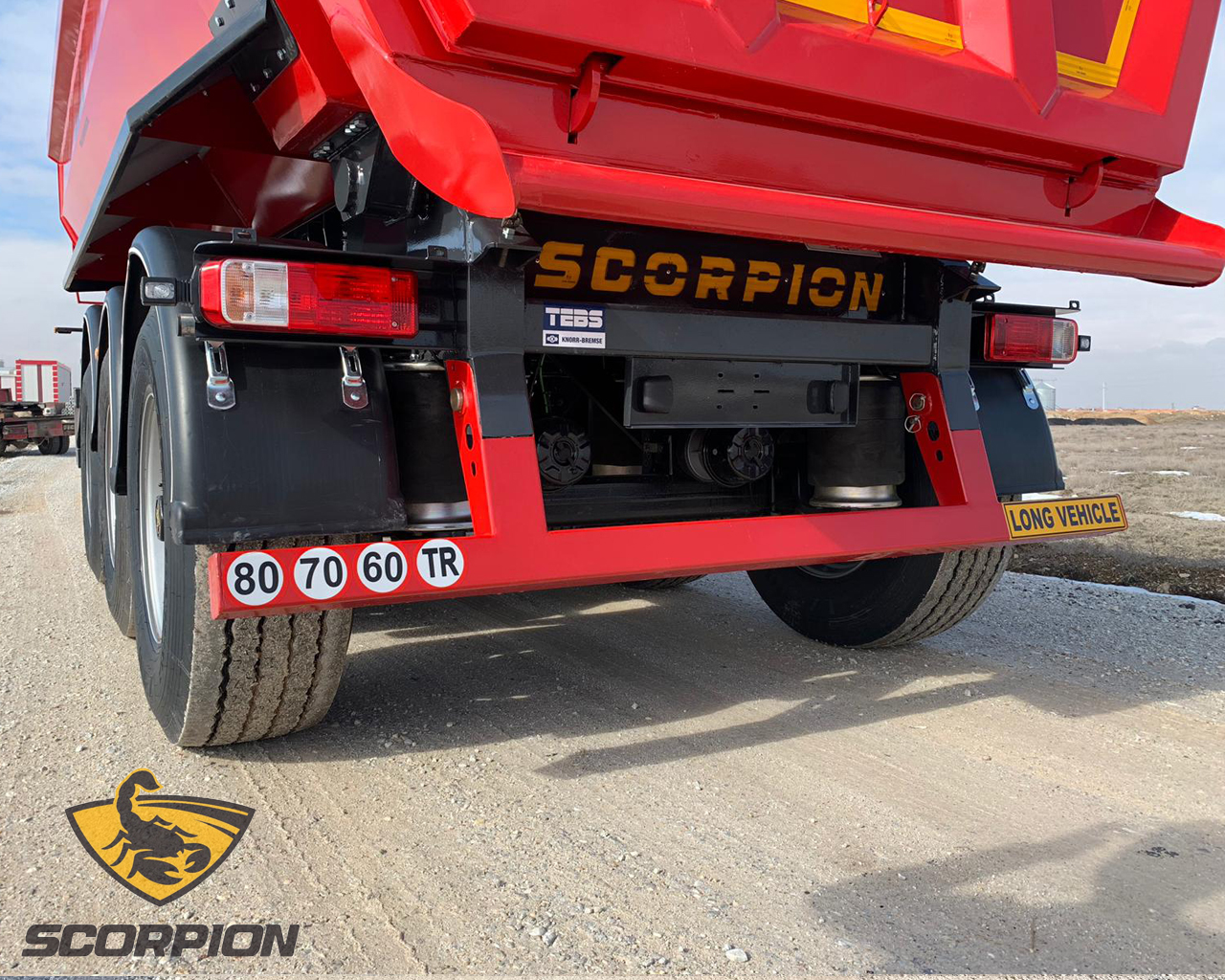

Reflectors and Anti-spray mud laps in accordance with European Standards

Tarpaulin system, according to the customers’ requests

Balcony

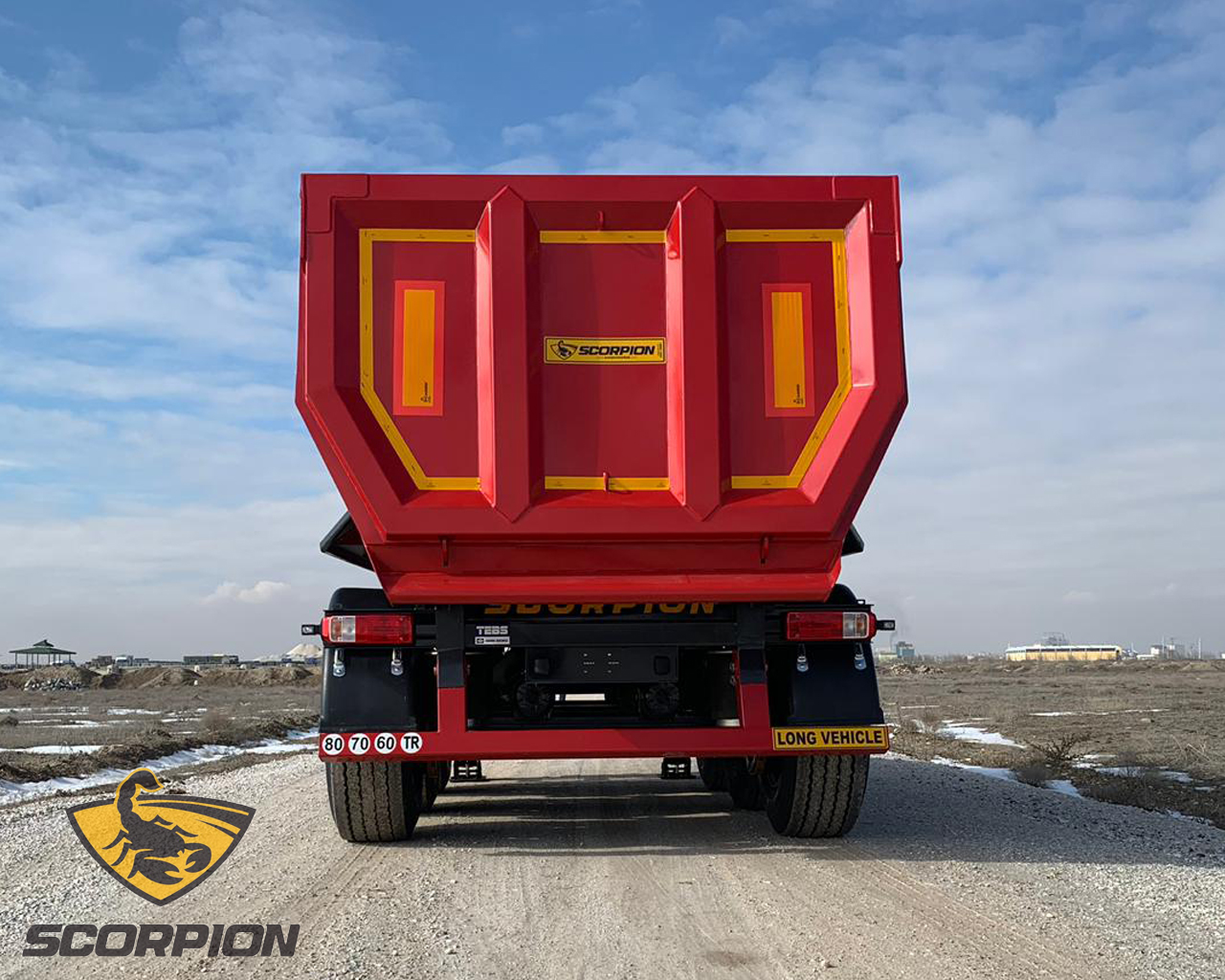

Hydraulically operated rear cover

Isolation system for hot materials carriage
