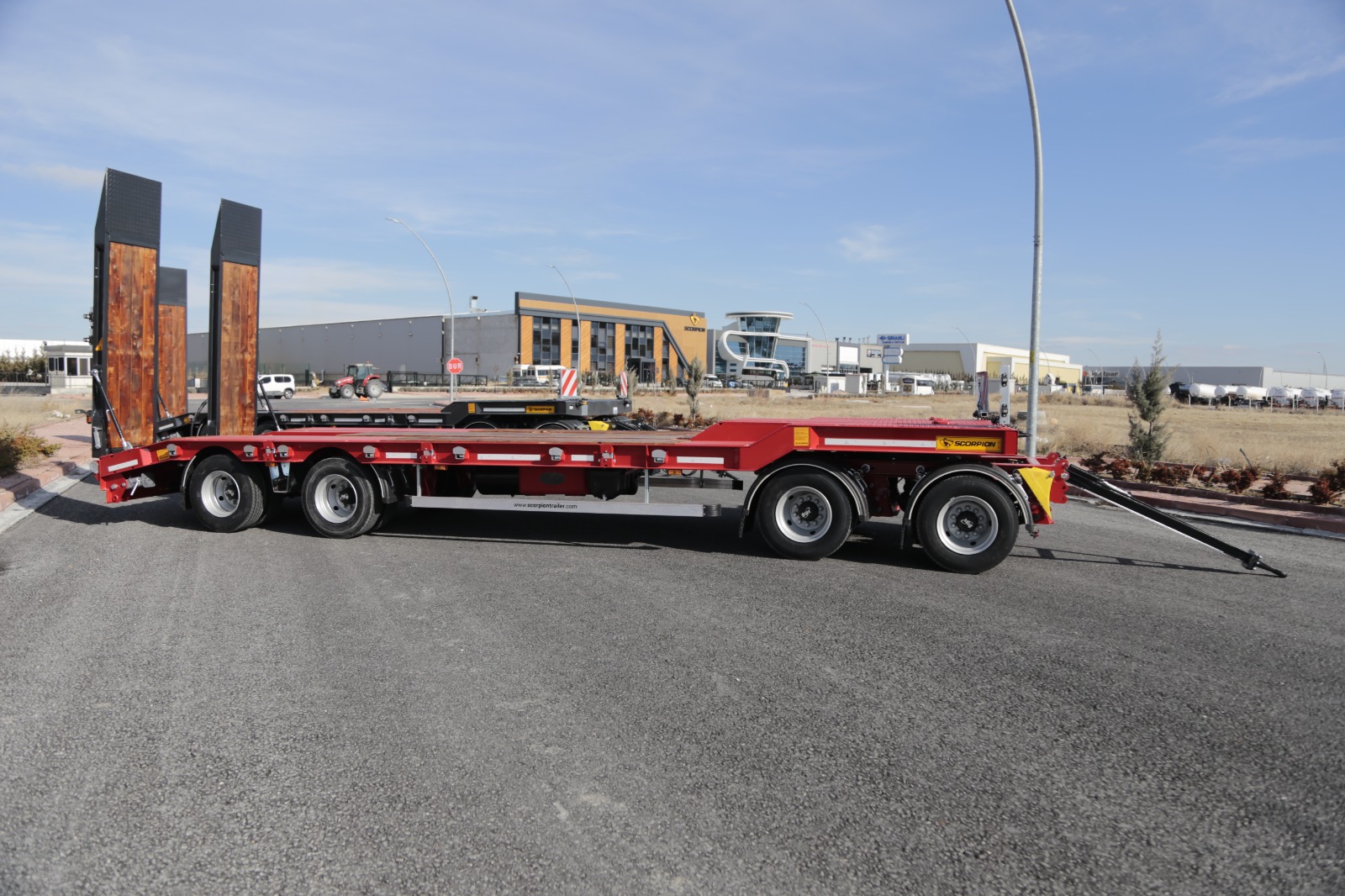

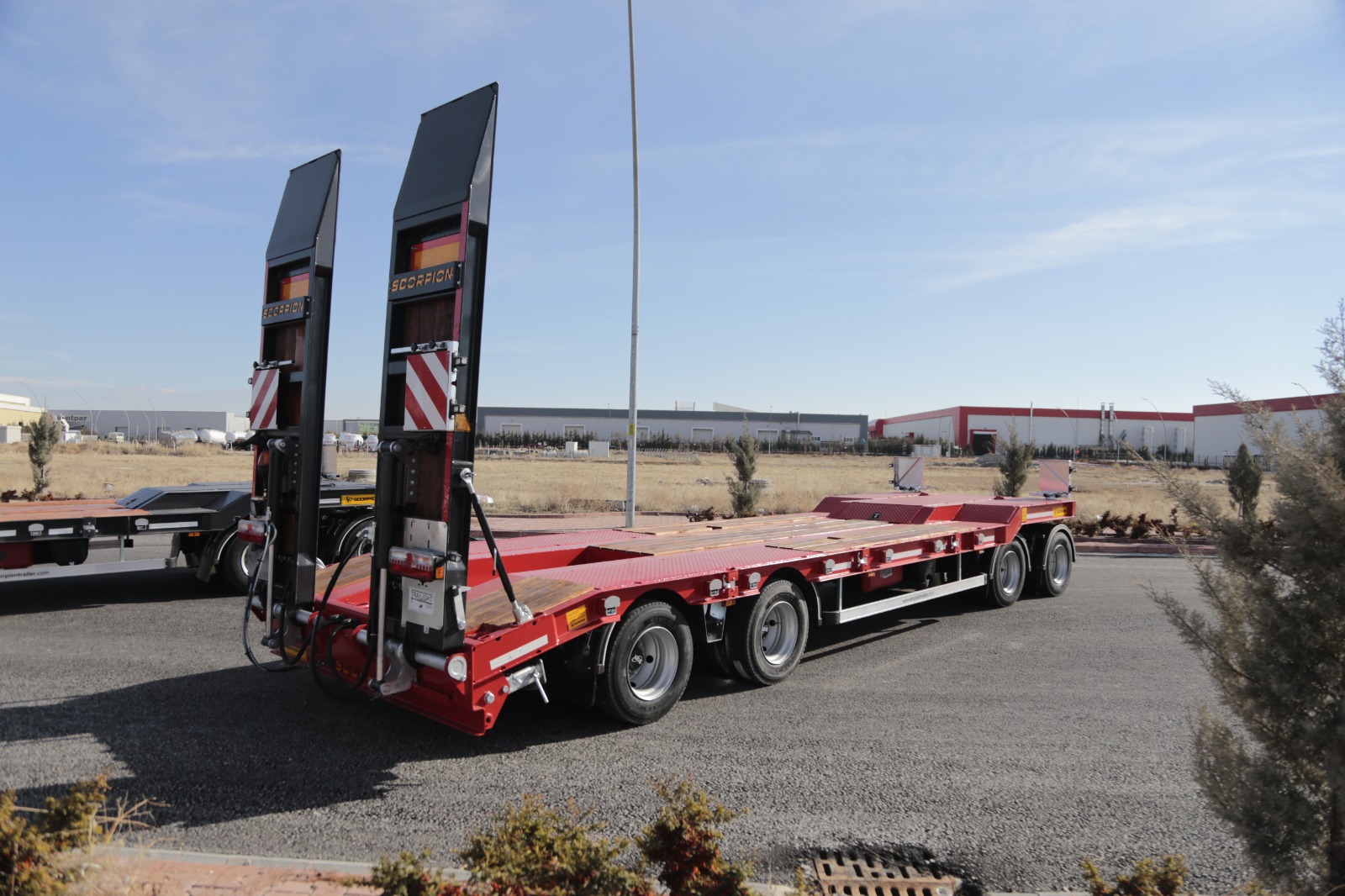

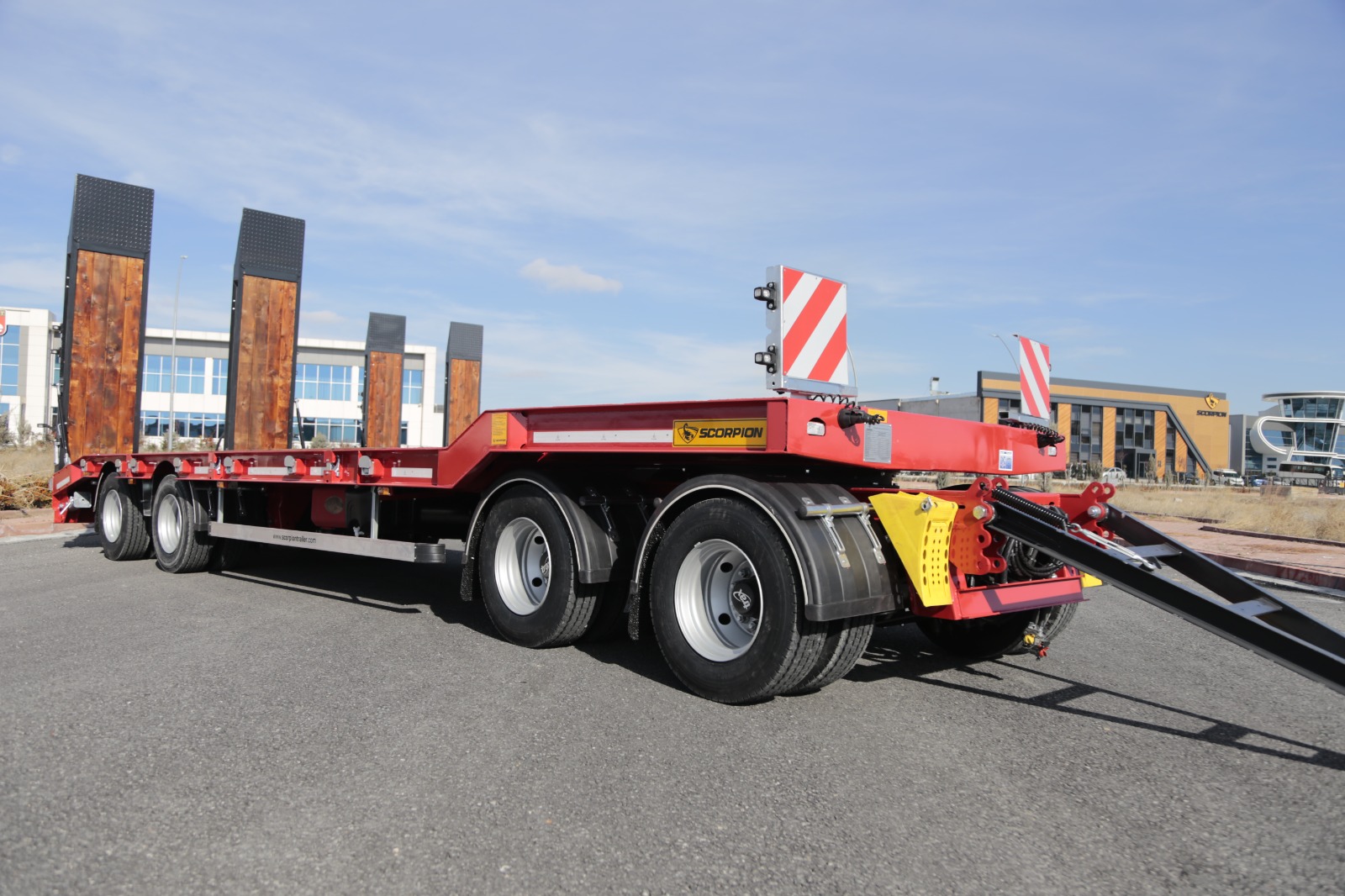

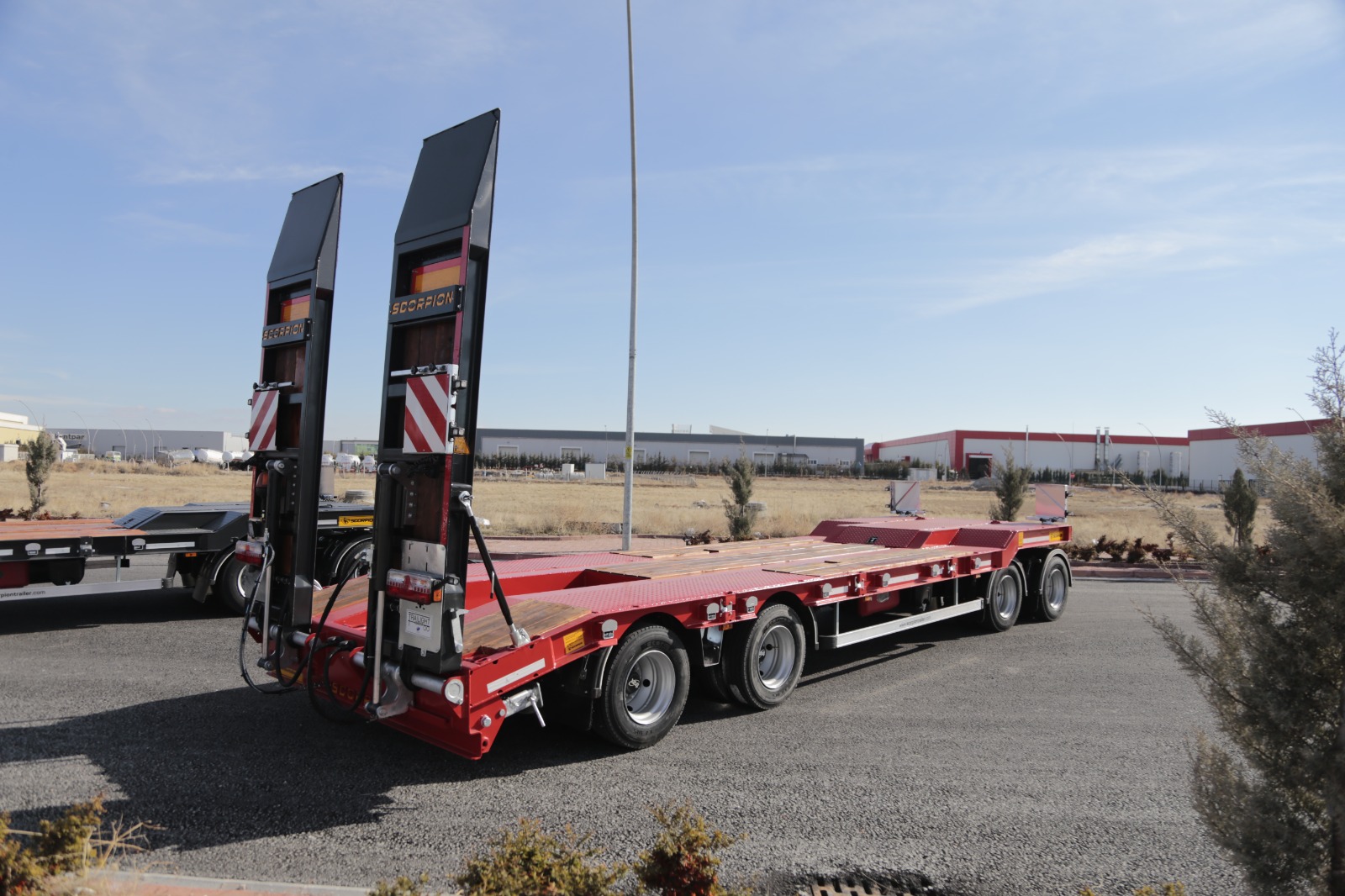

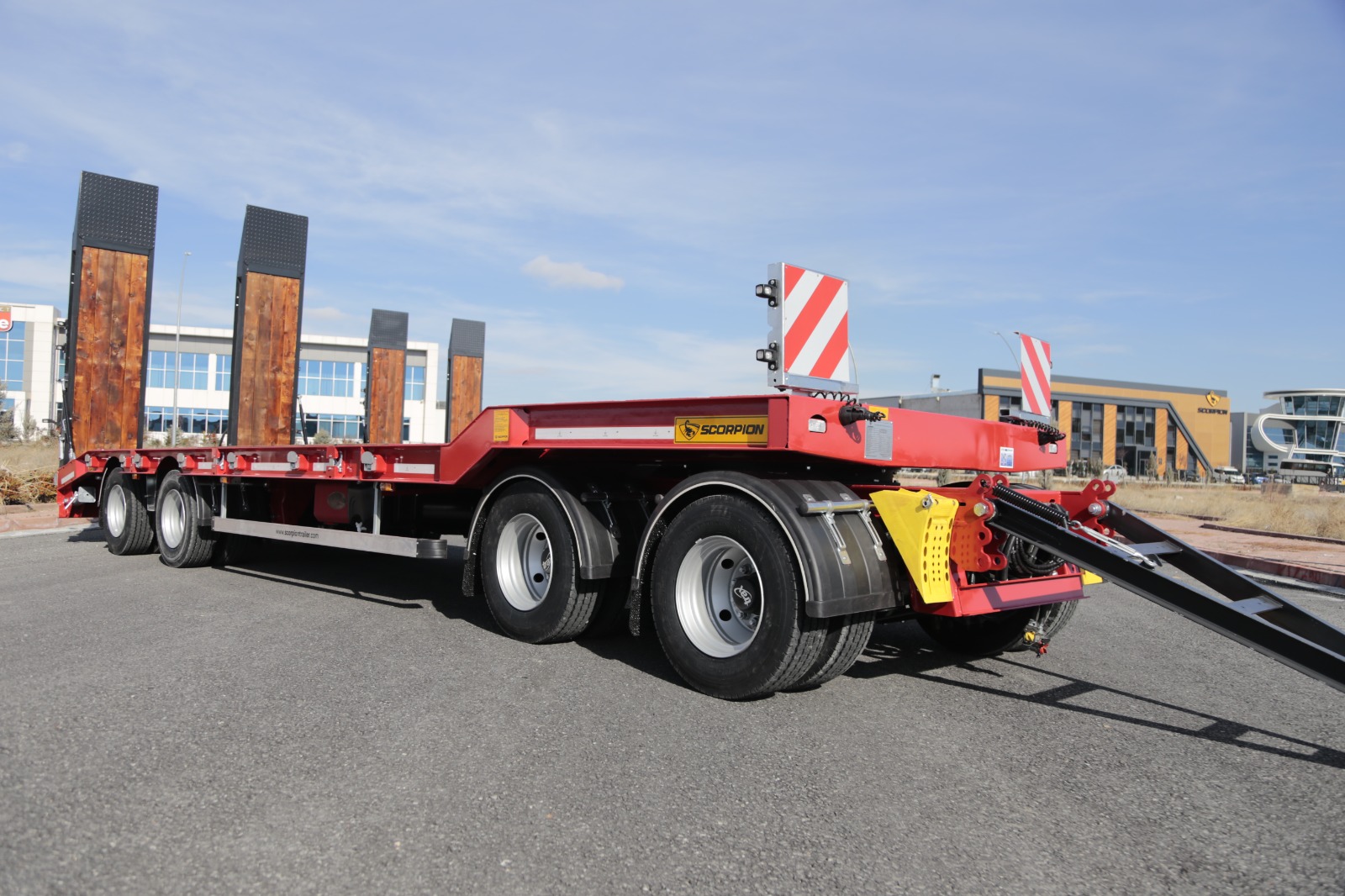

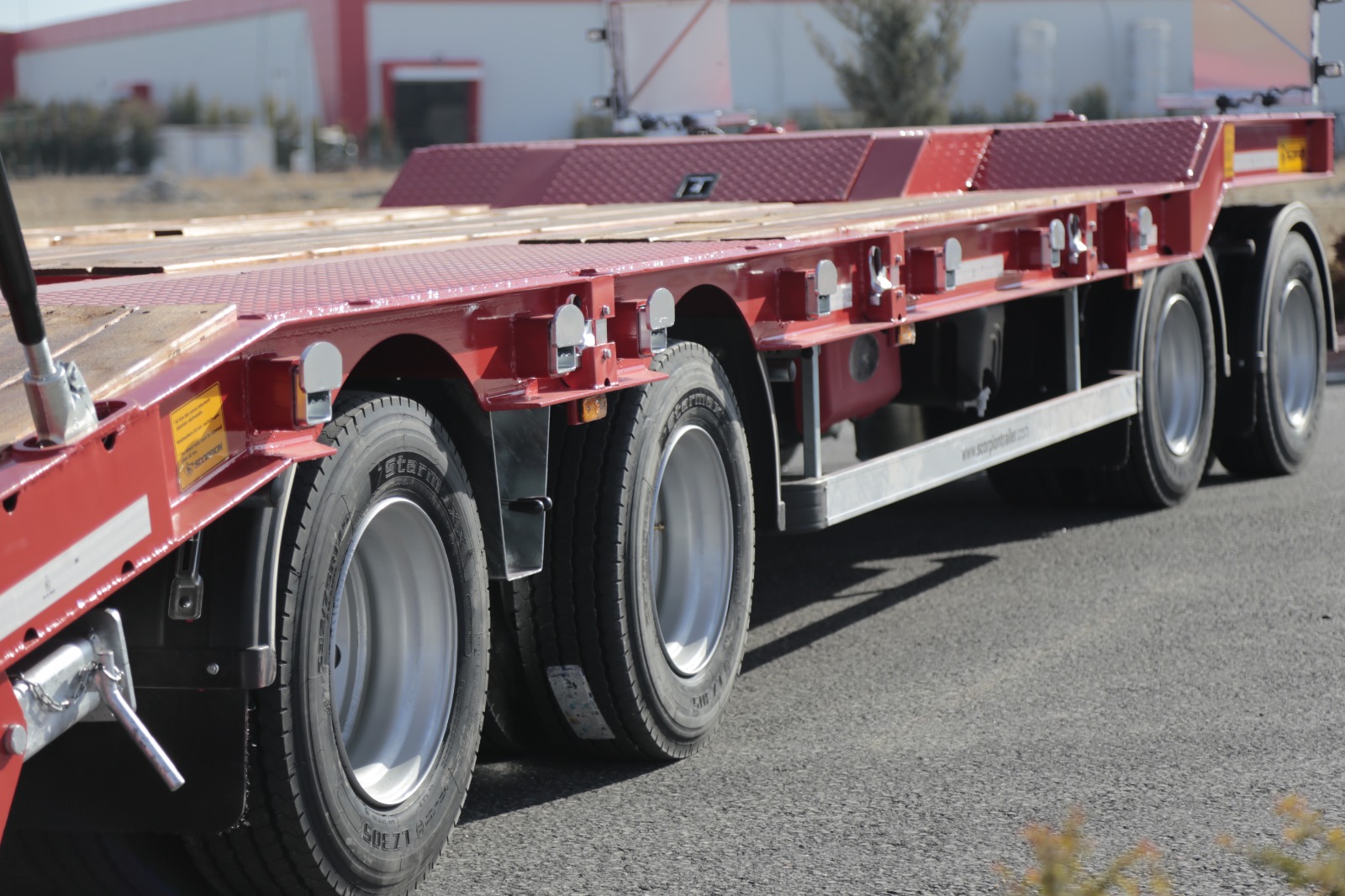

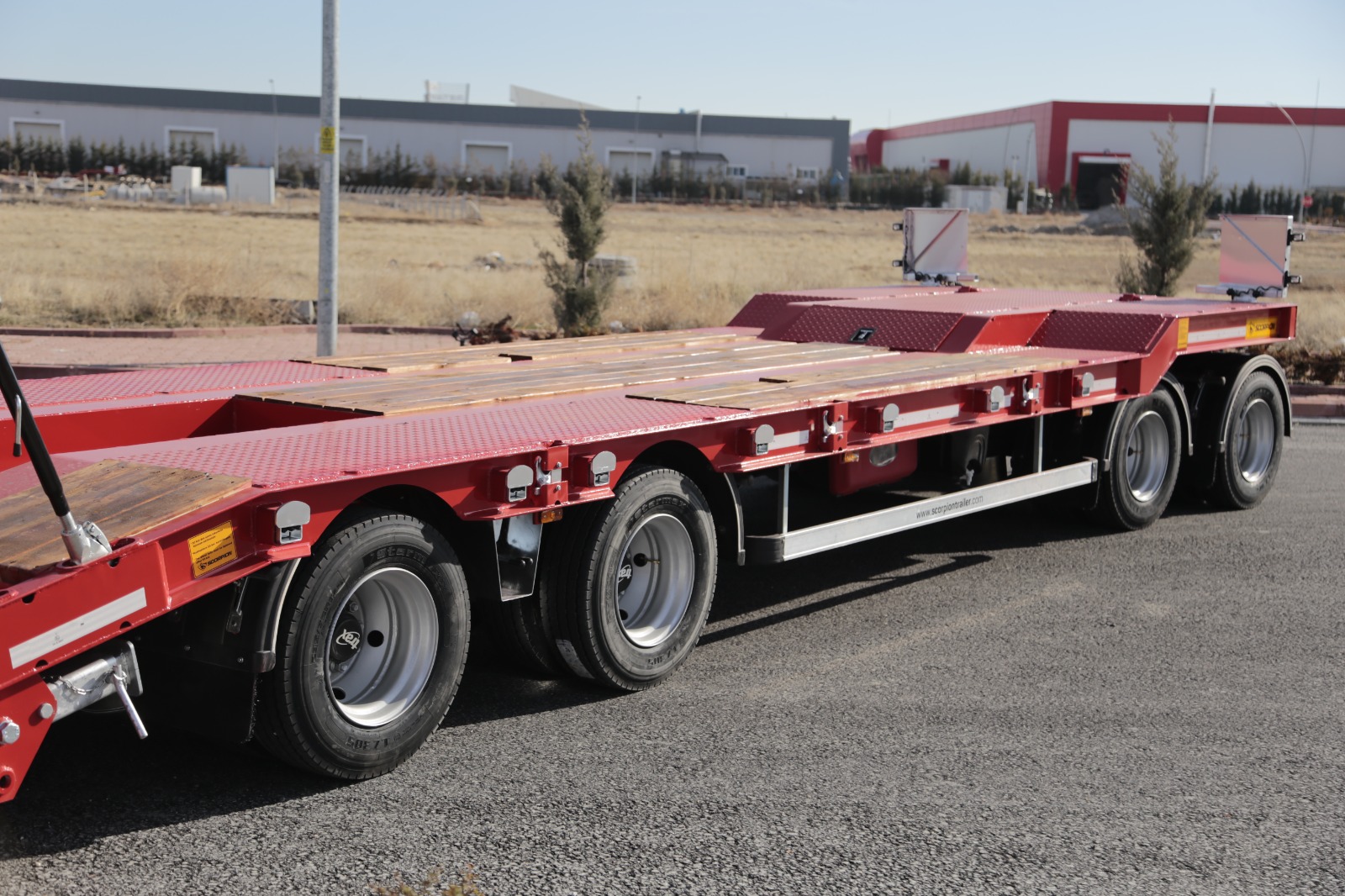

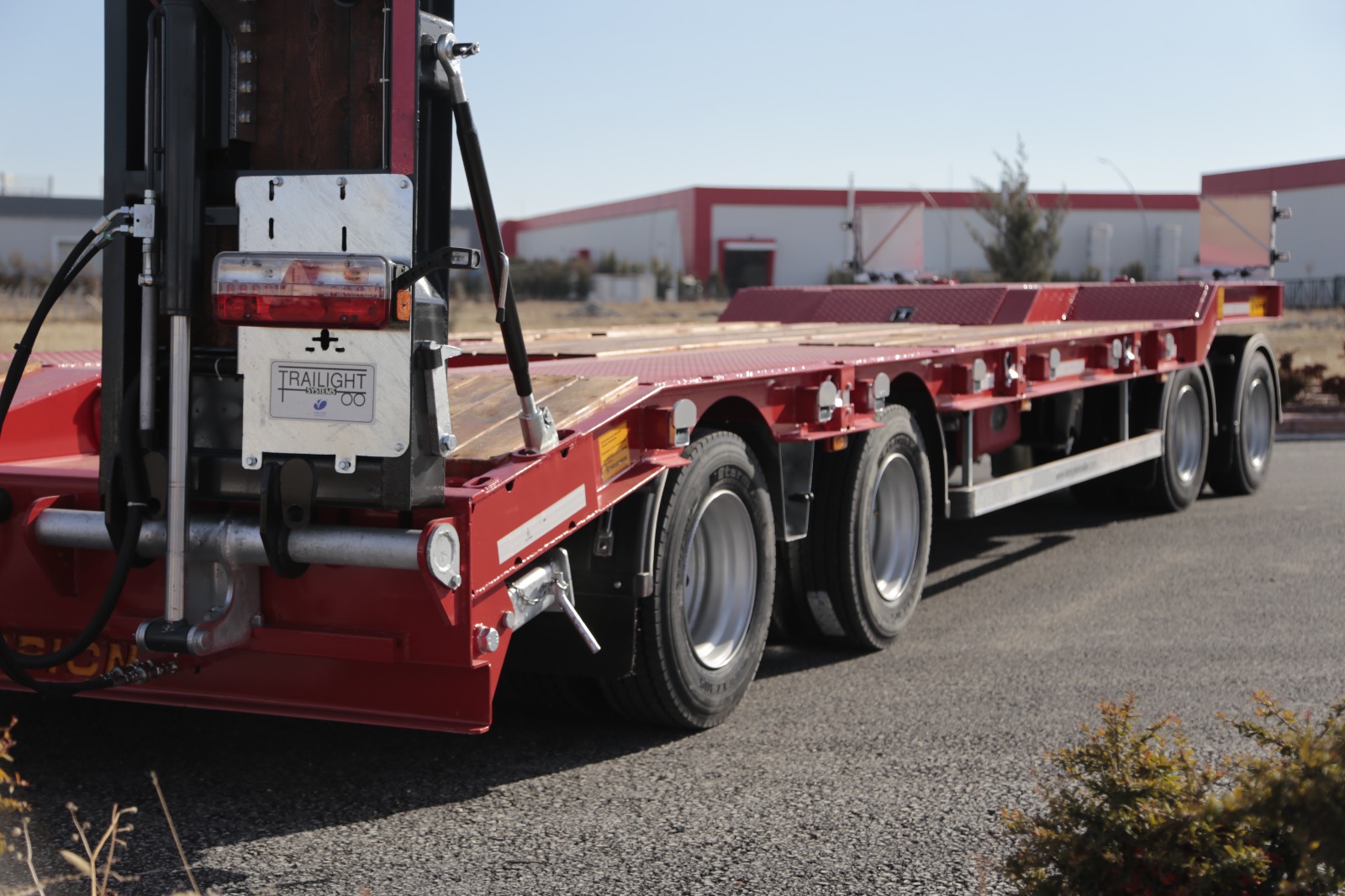

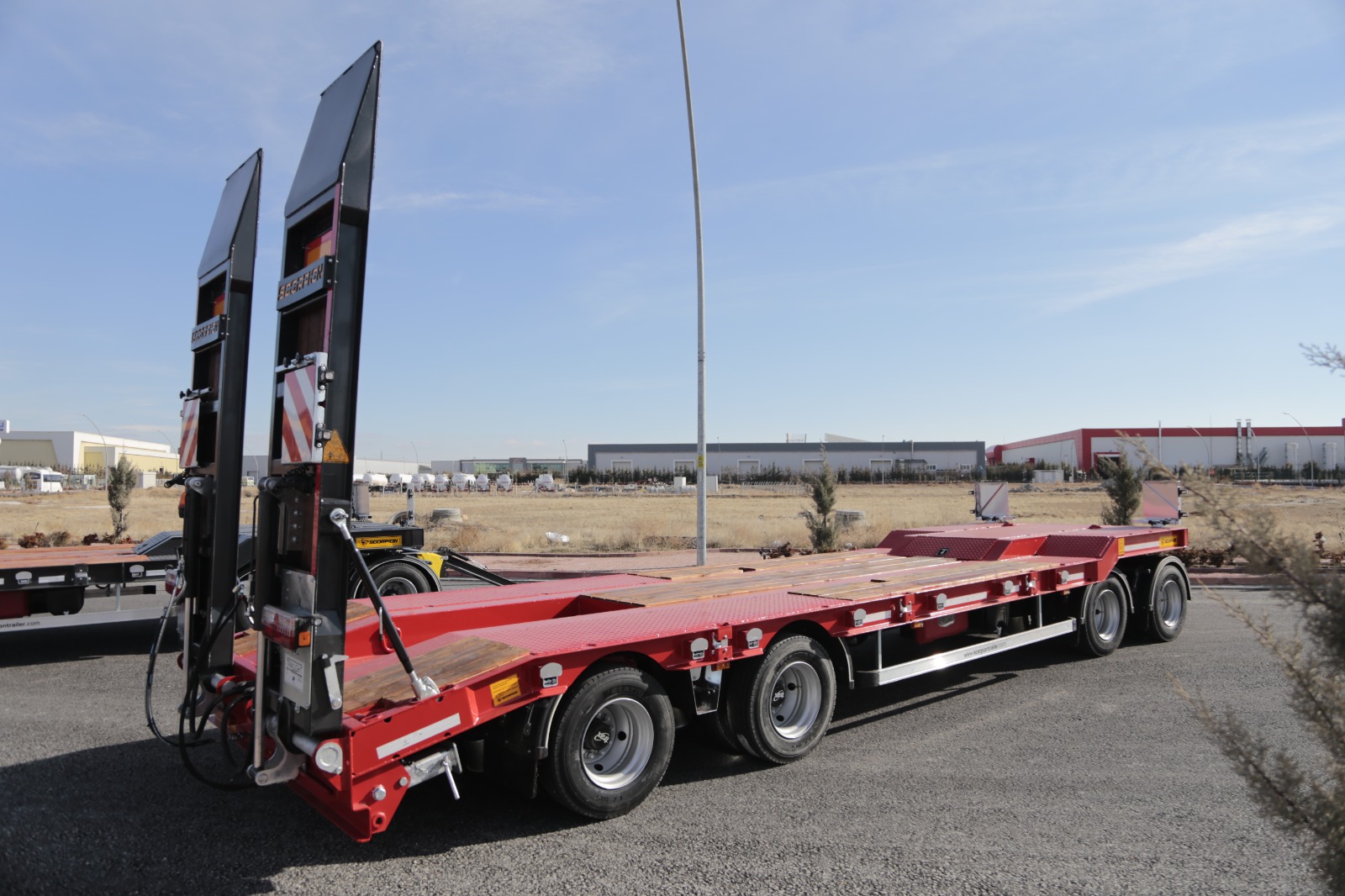

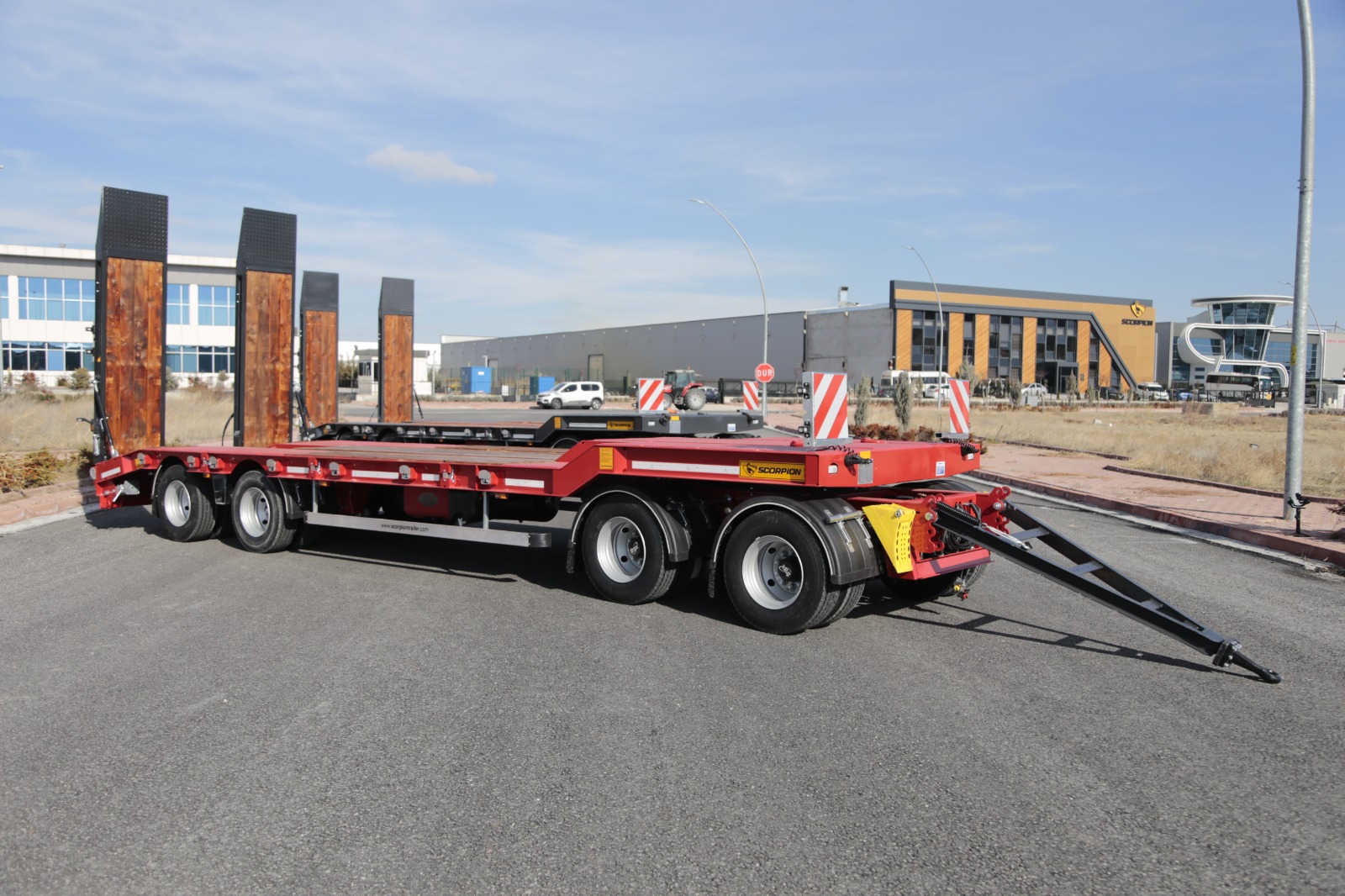

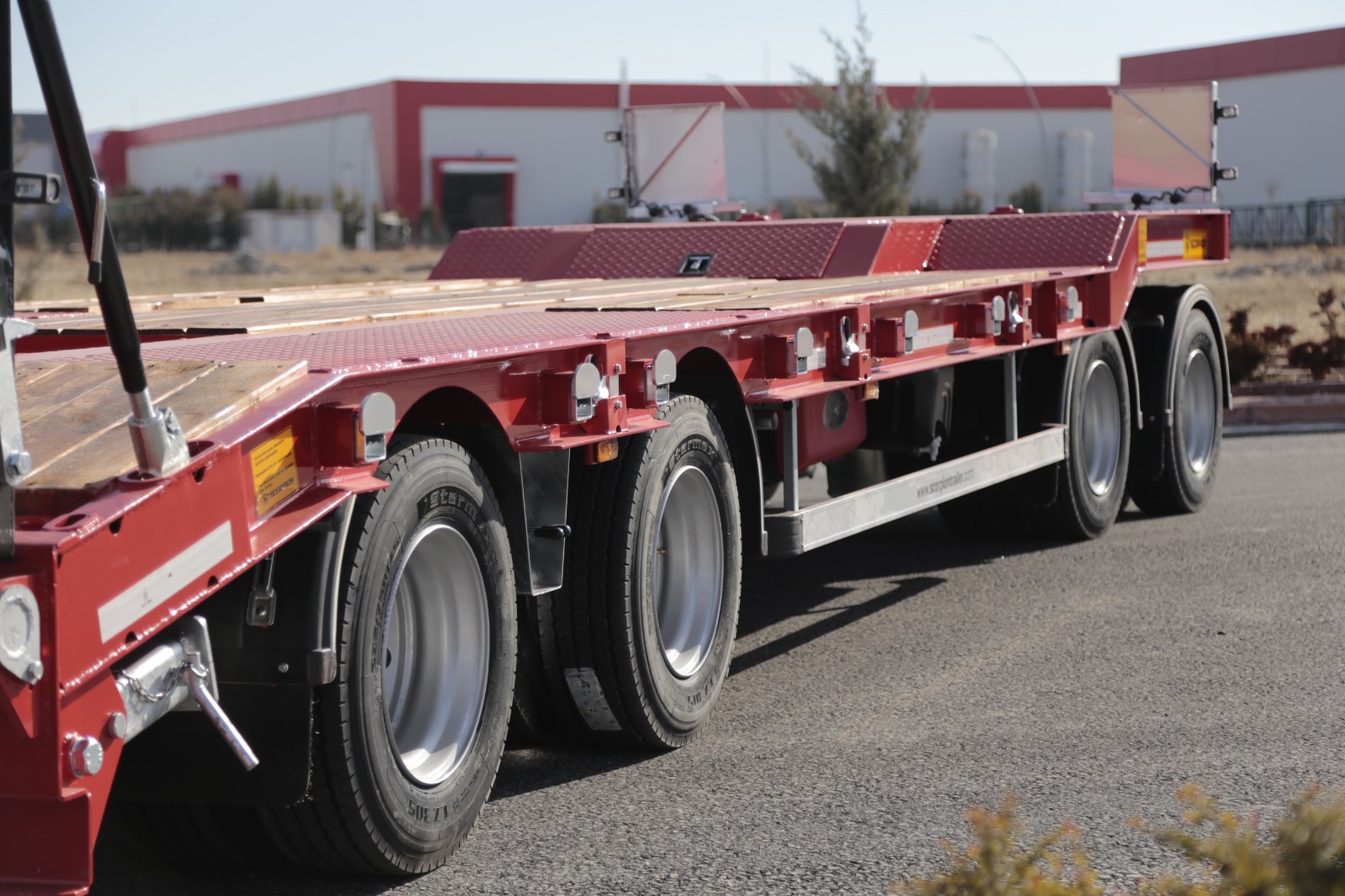

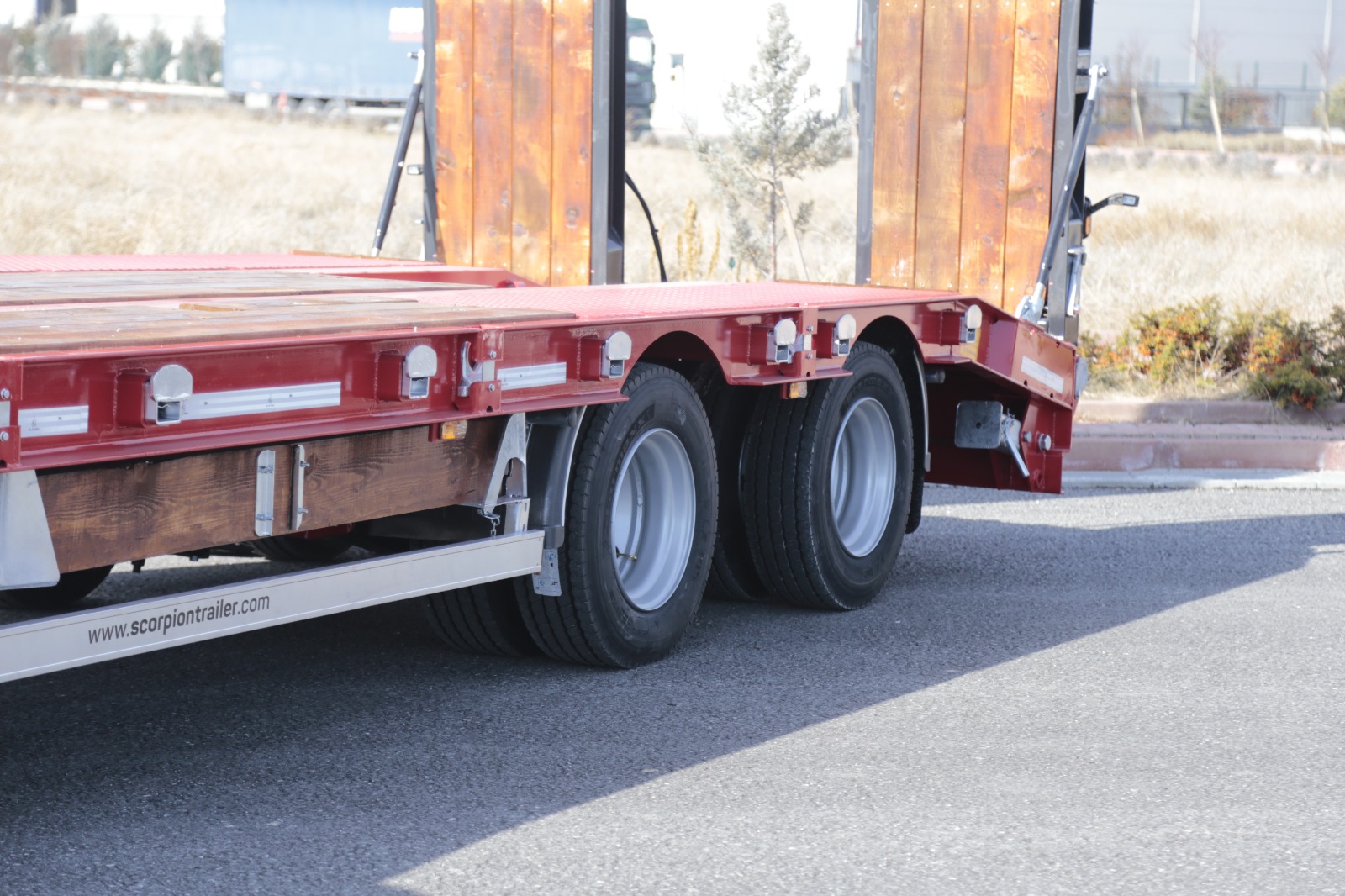

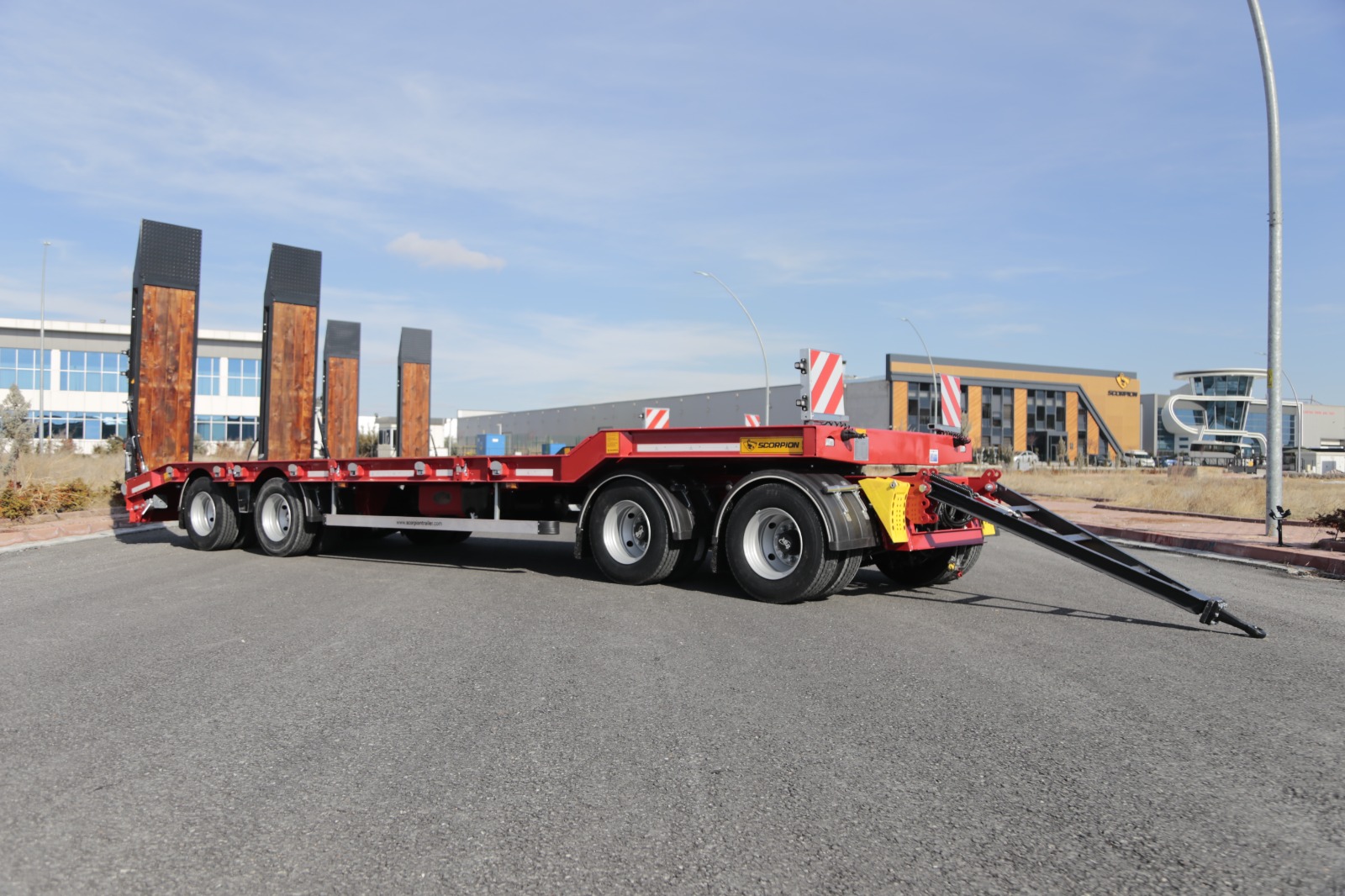

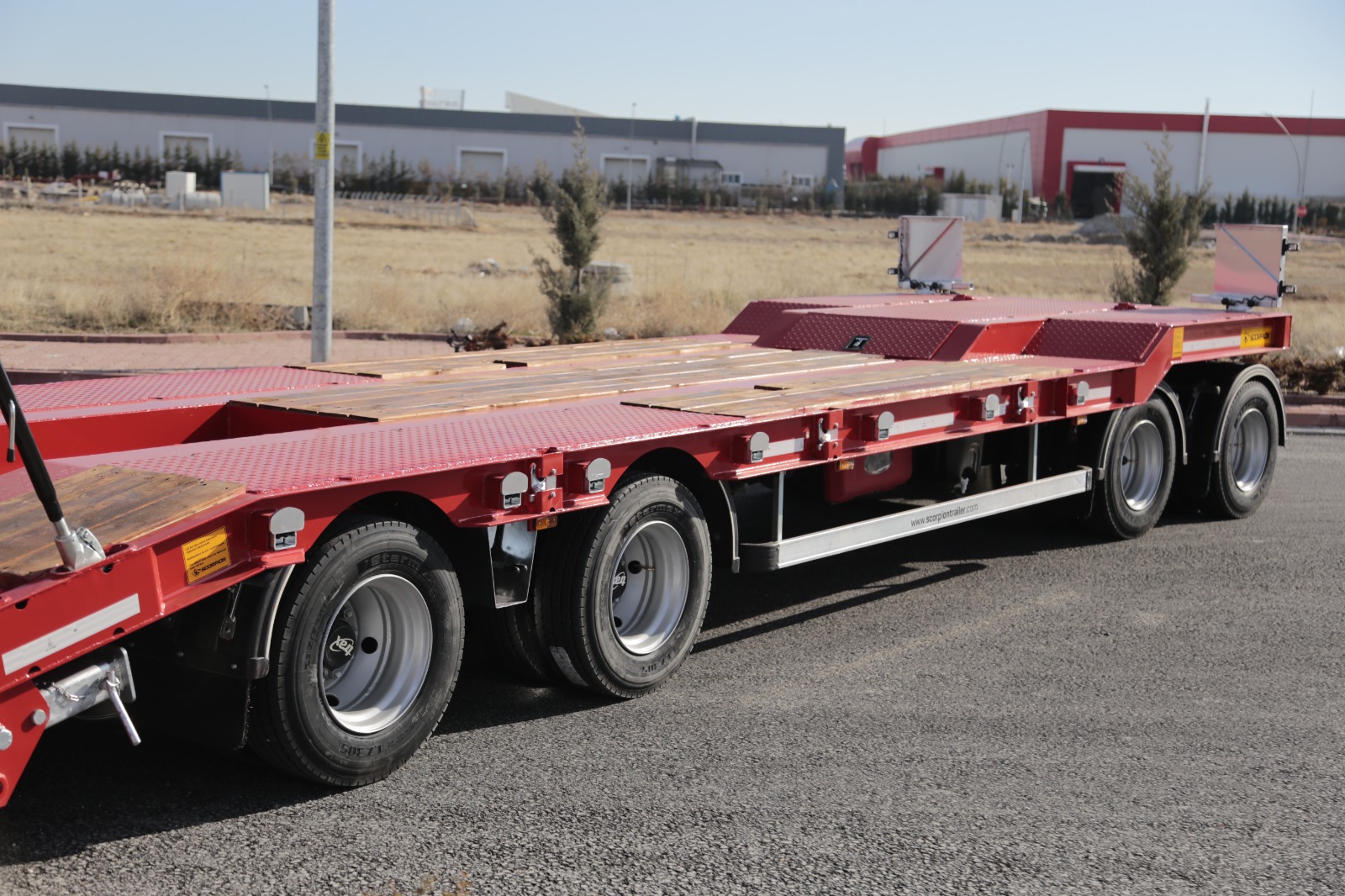

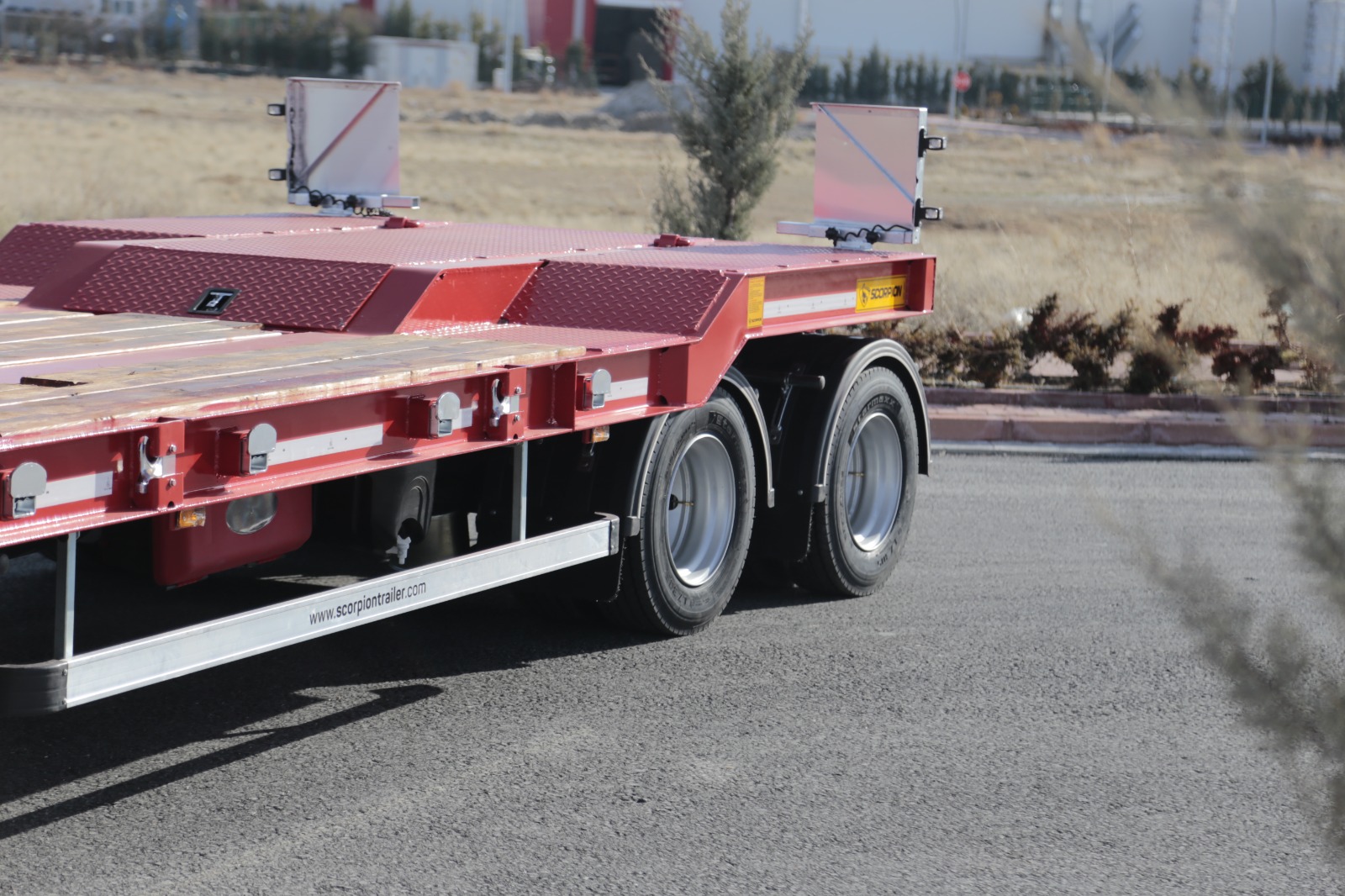

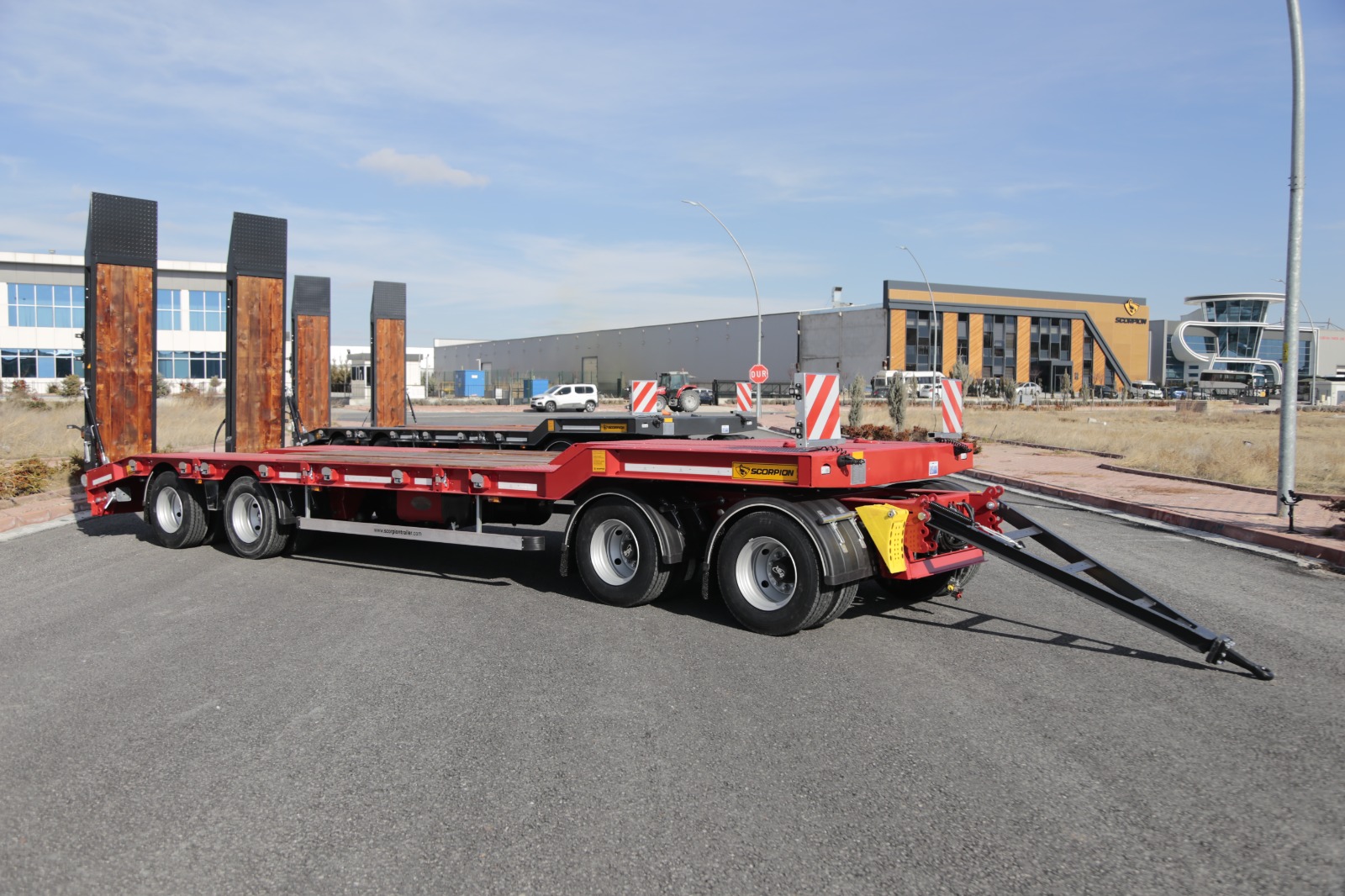

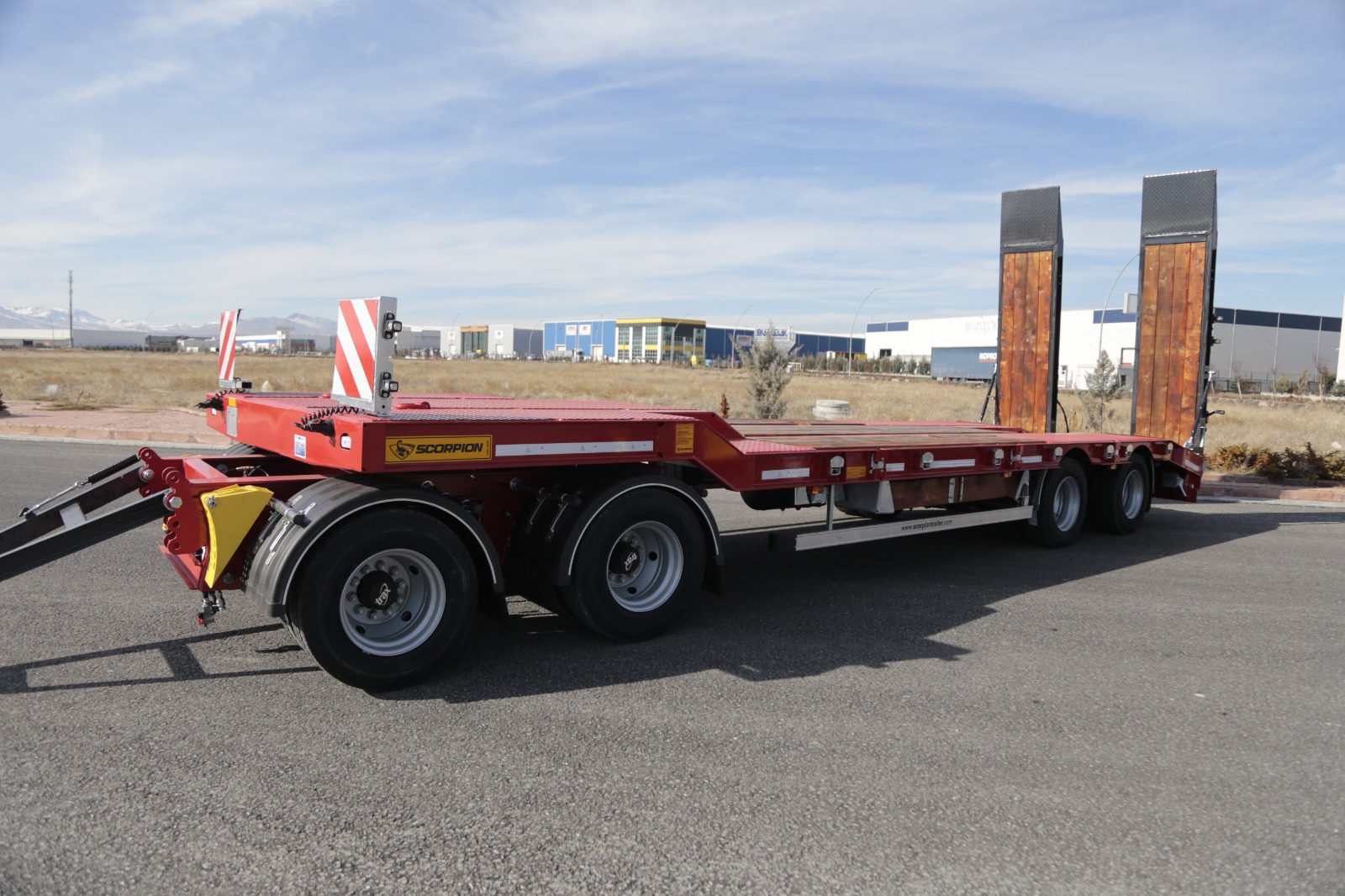

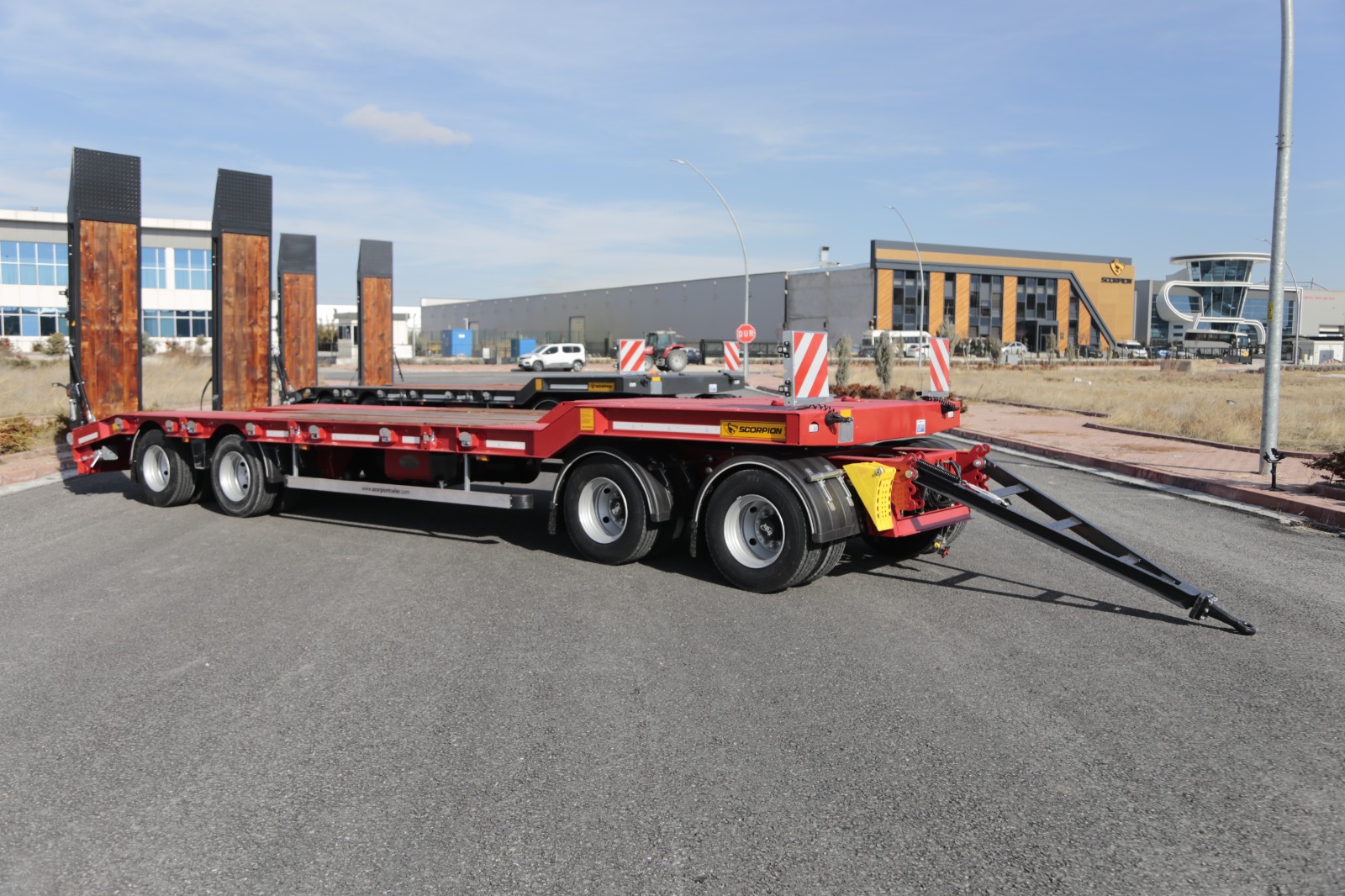

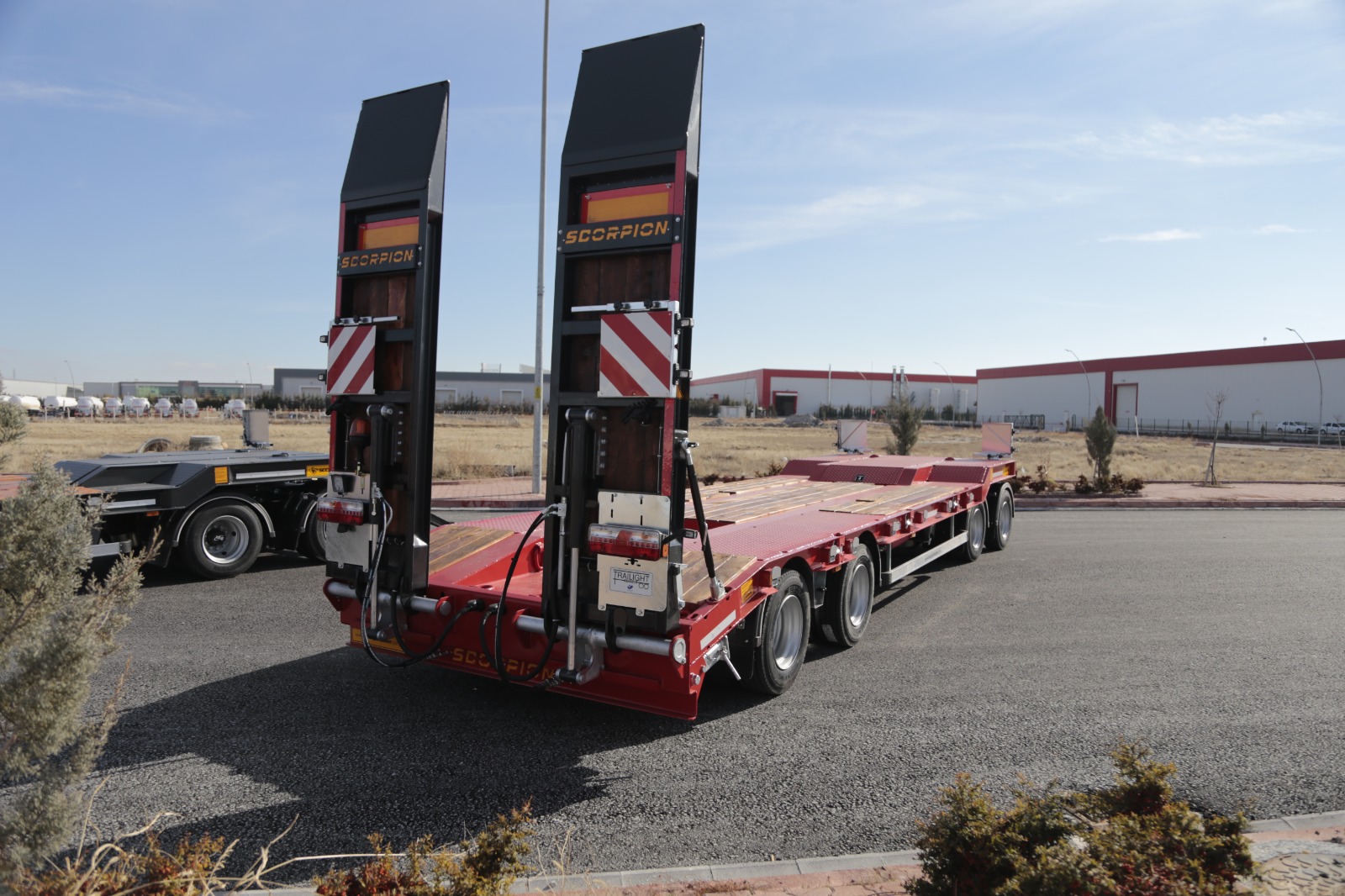

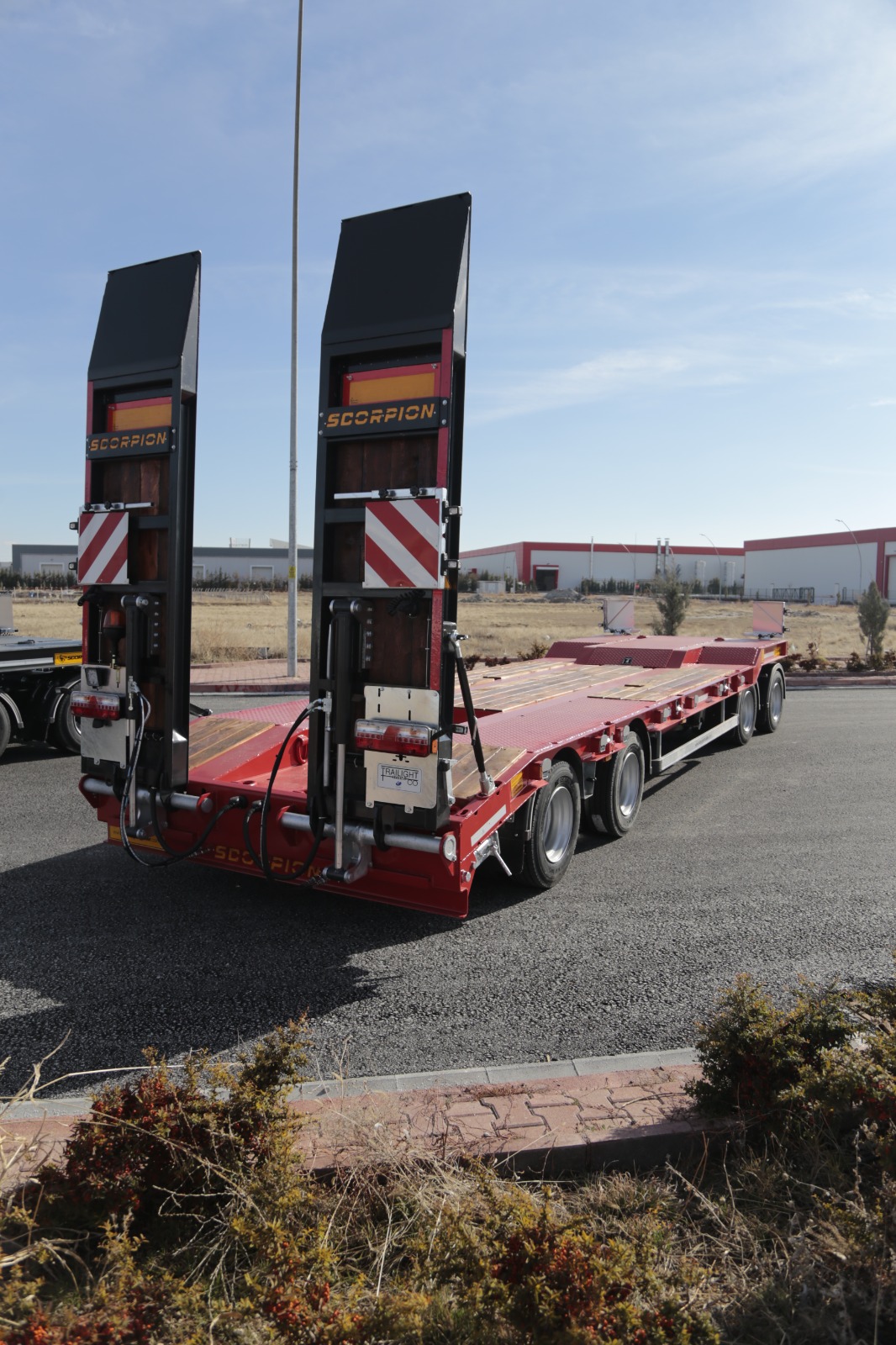

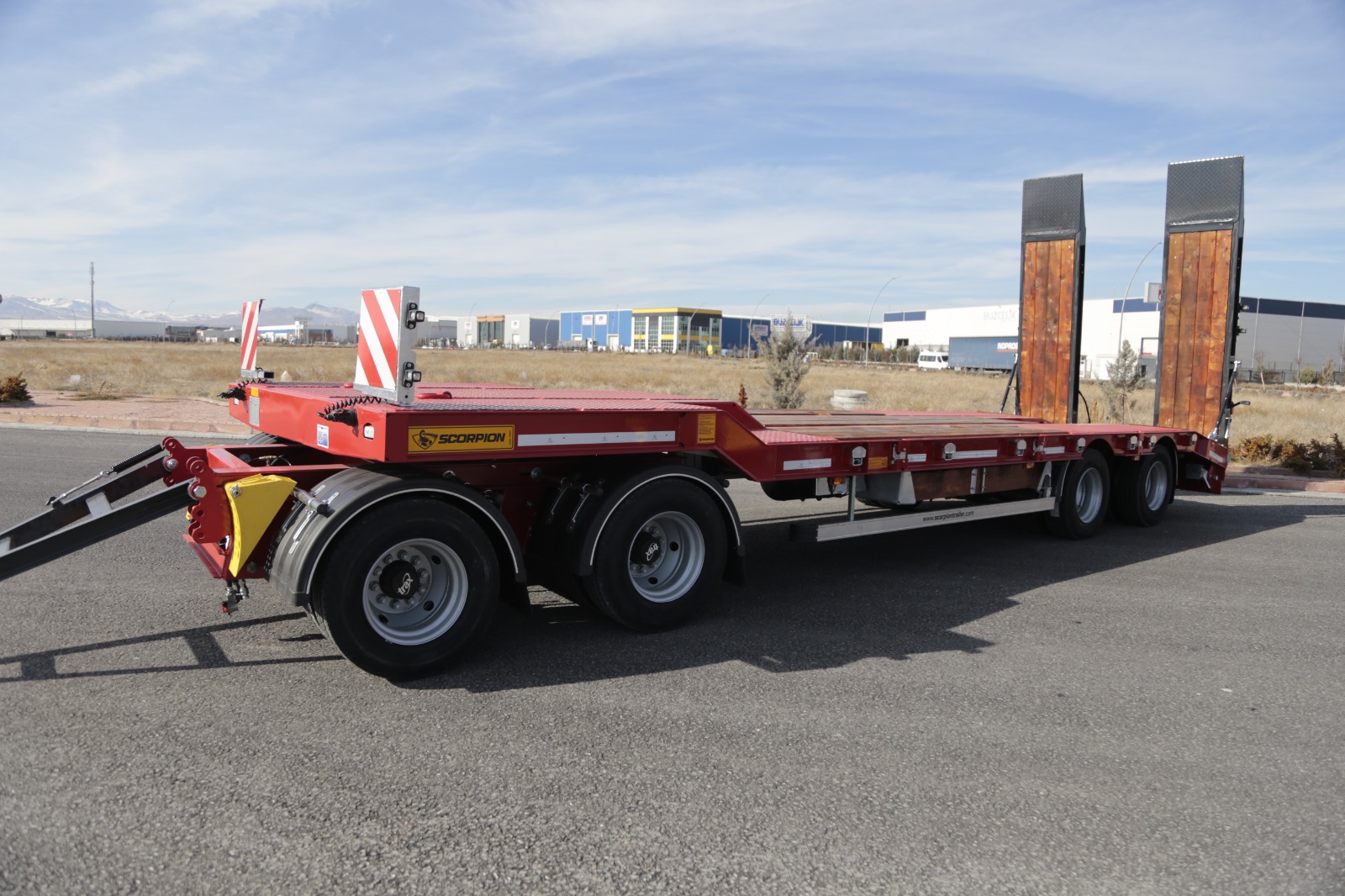

SCR4 4 Axle Low Loader Trailer
CATEGORY: Low Loader Trailer
TYPE: 4 Axle Low Loader Trailer
WHATSAPP SUPPORT:
SHARE:

• TECHNICAL DETAILS

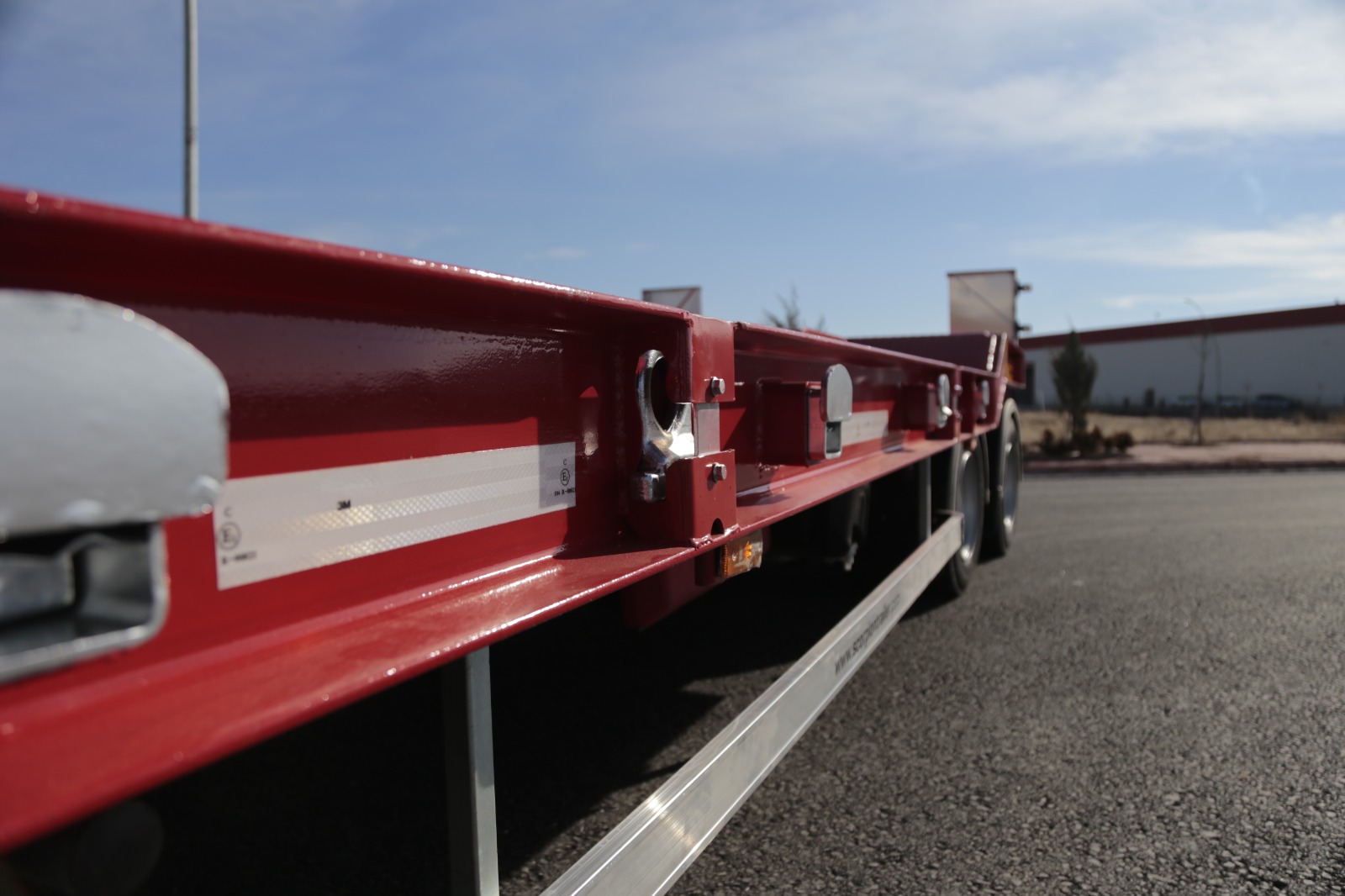

CHASSIS: ST52 main frame in accordance with EU 53-62 Standards.

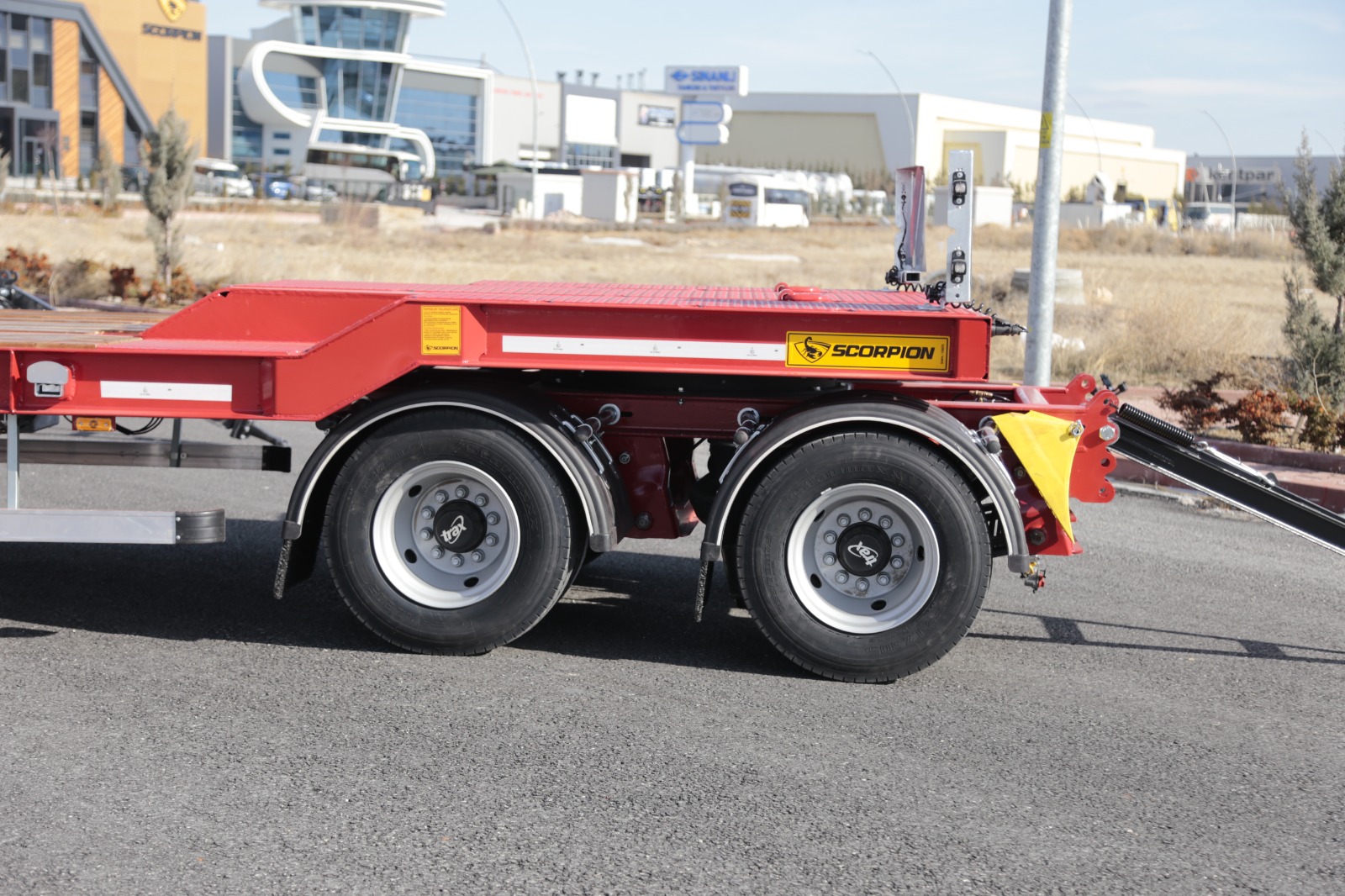

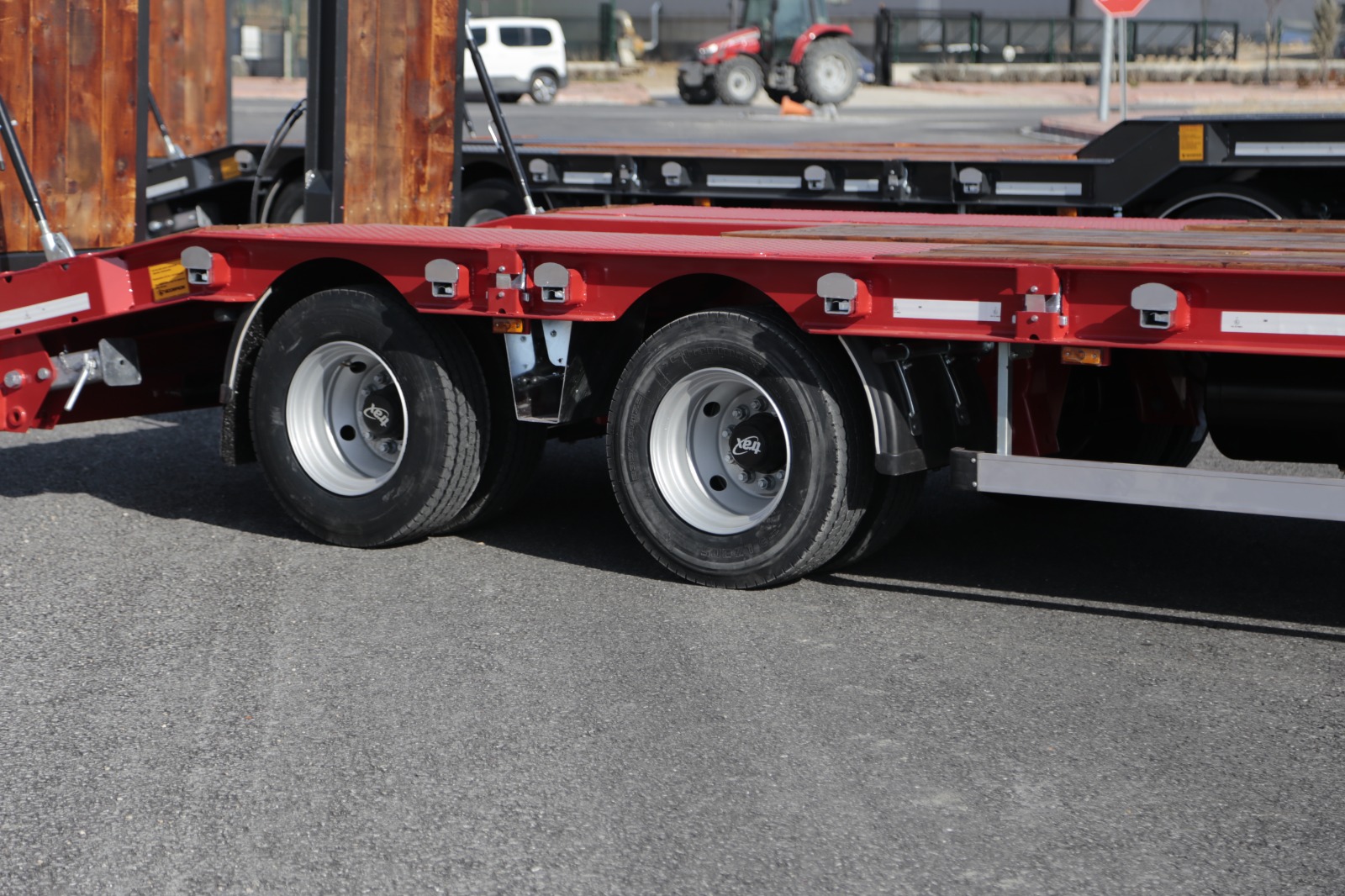

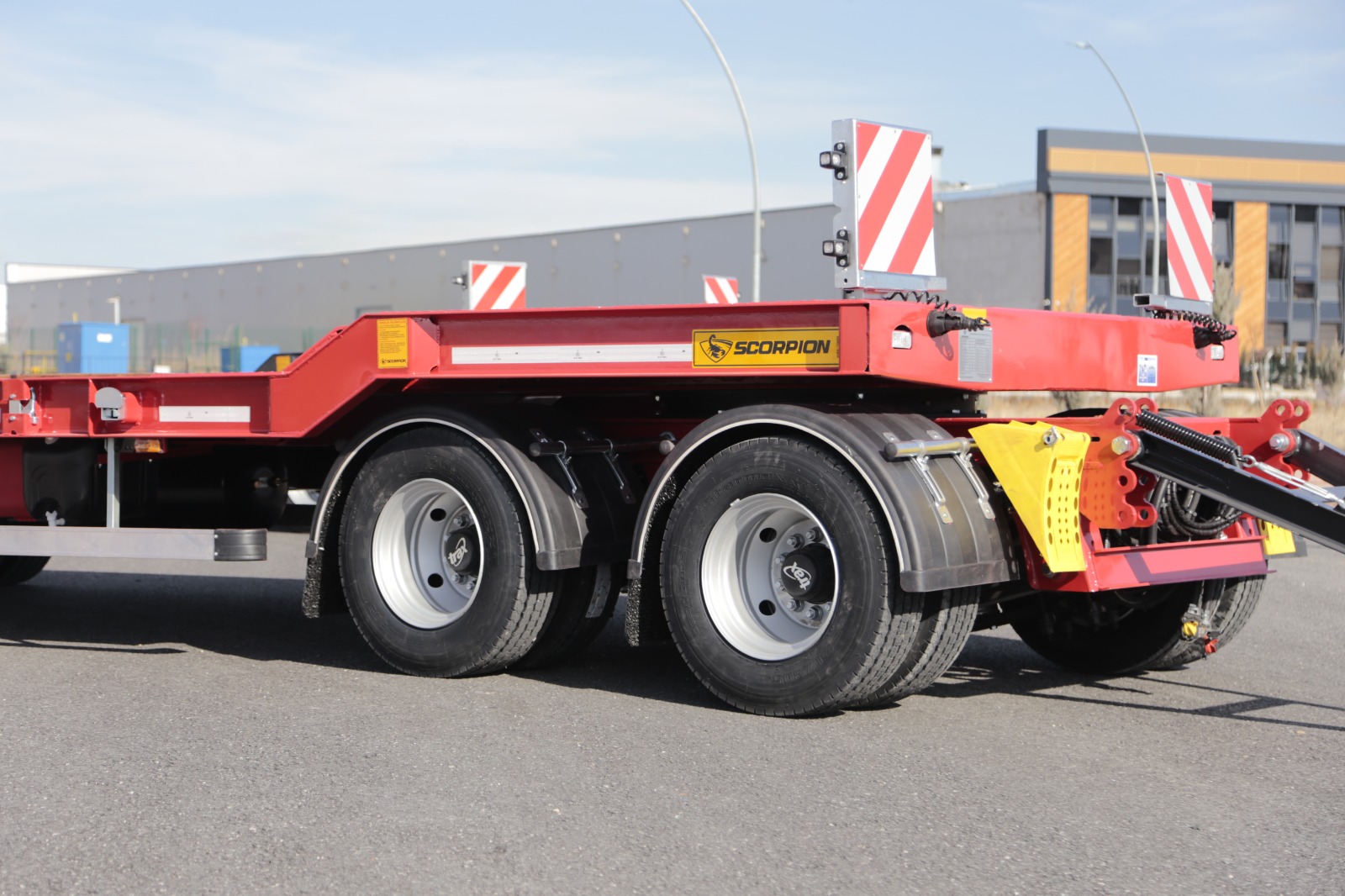

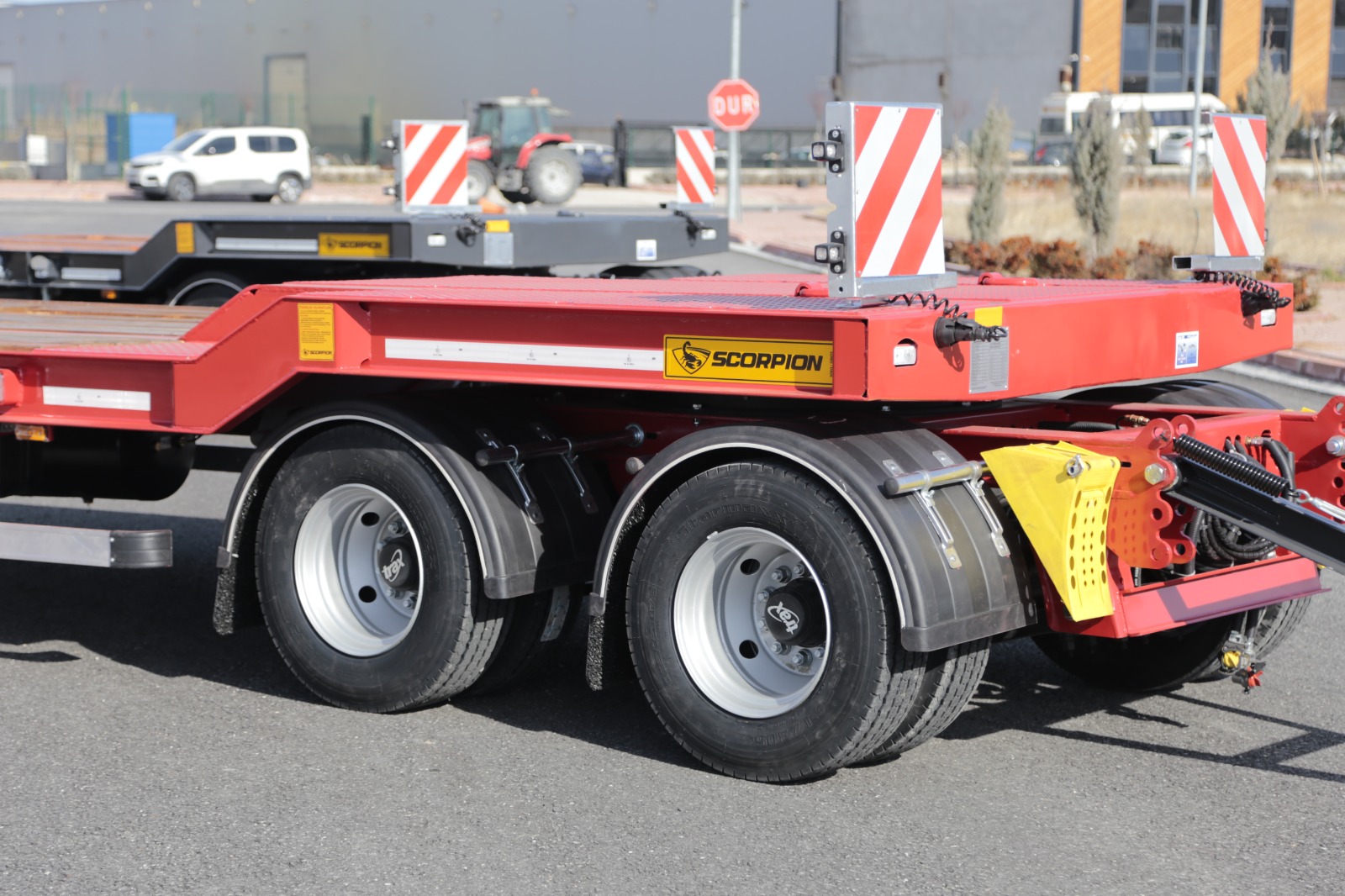

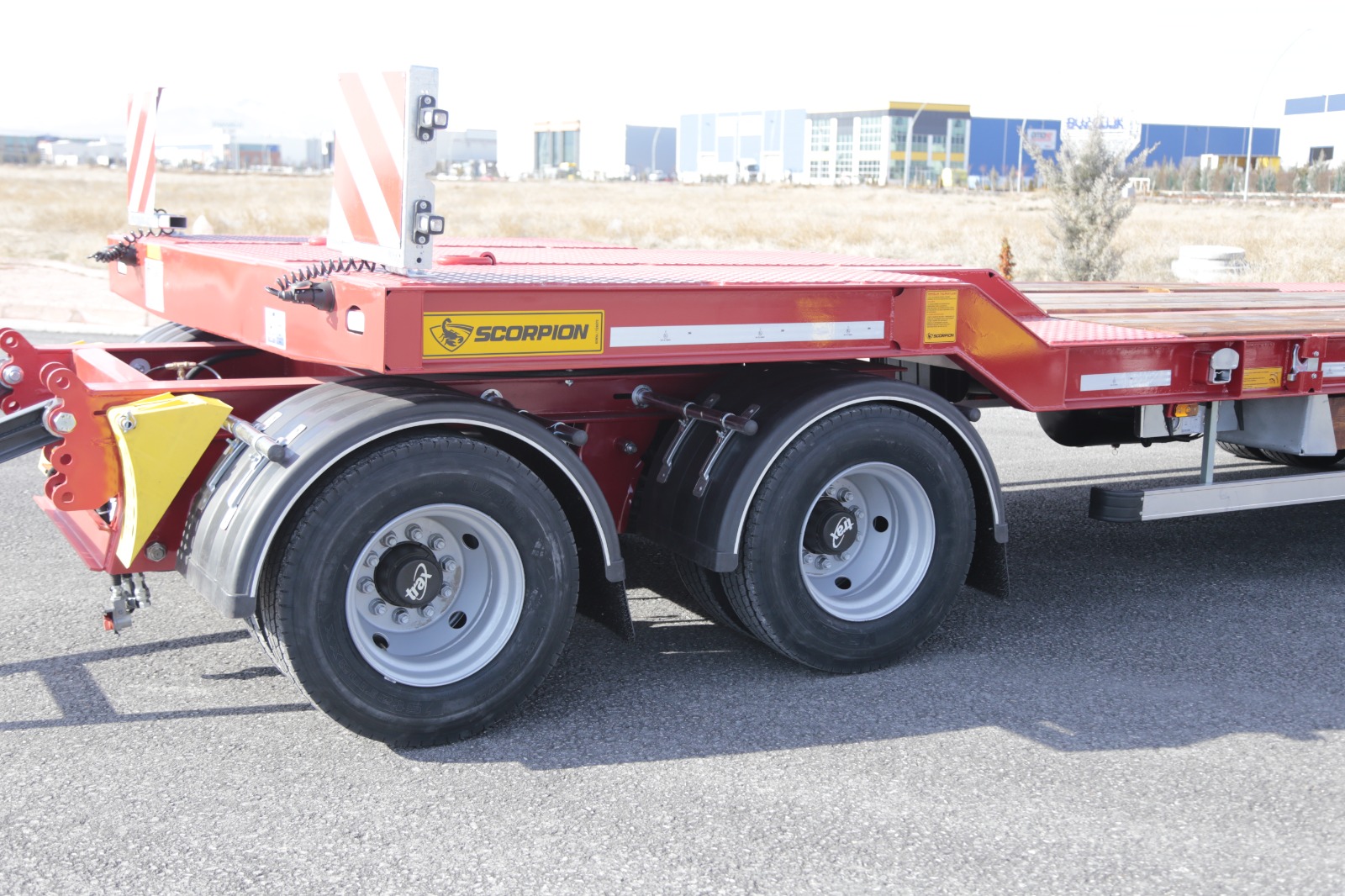

AXLE GROUP: 11 – tonner 4 pcs R:17,5” European Brand (SAF HOLLAND) or Turkish Brand.

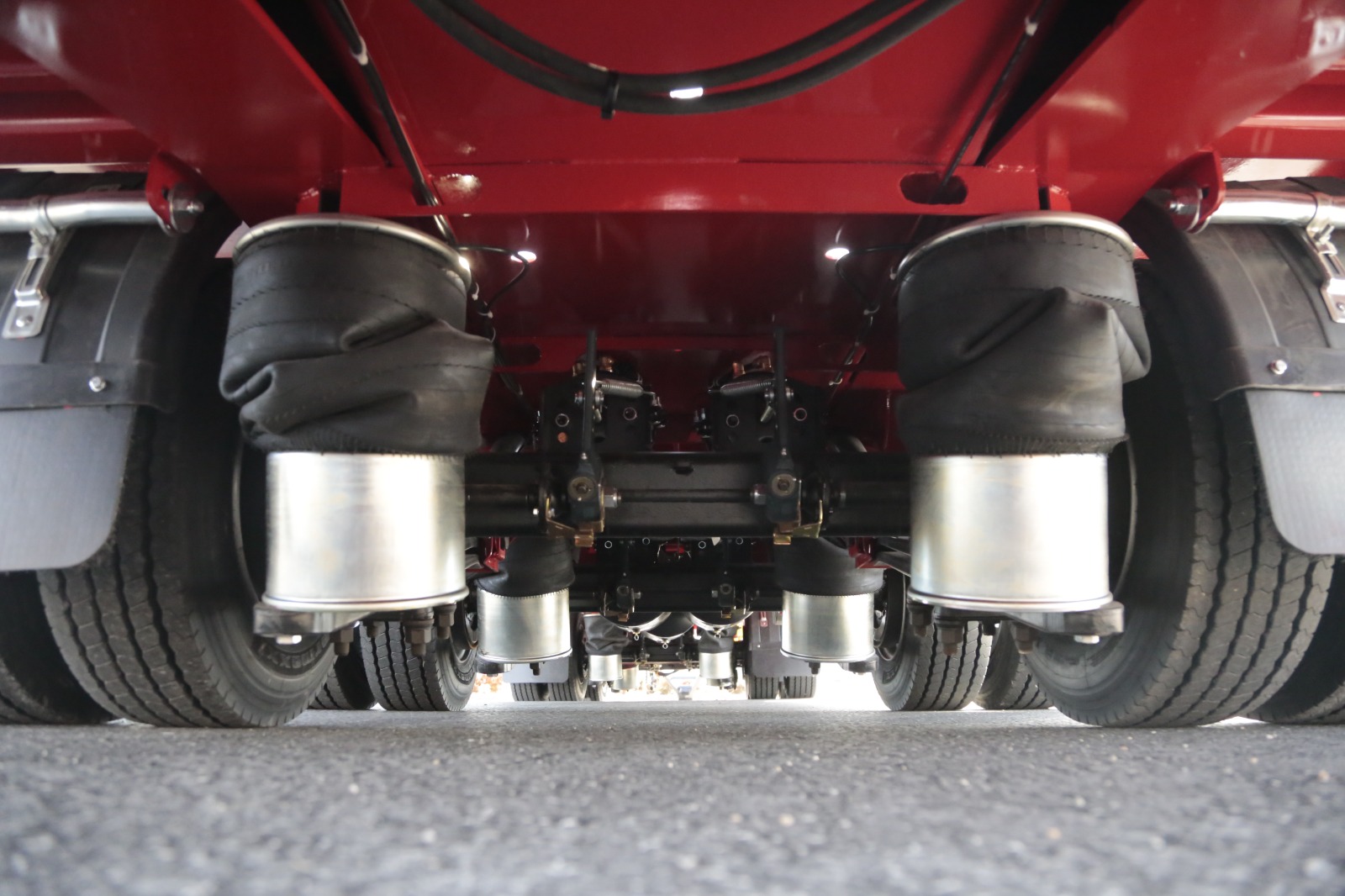

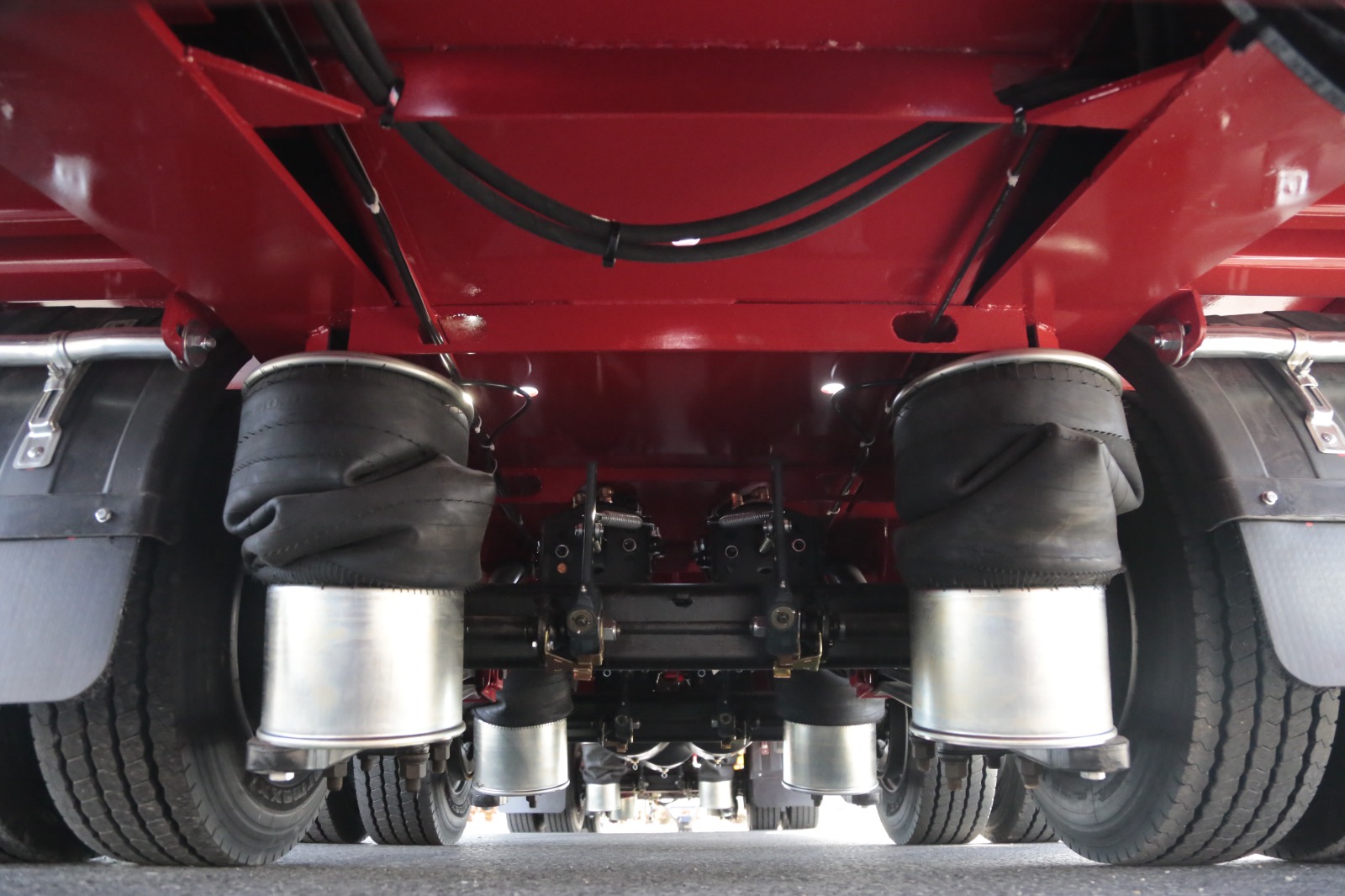

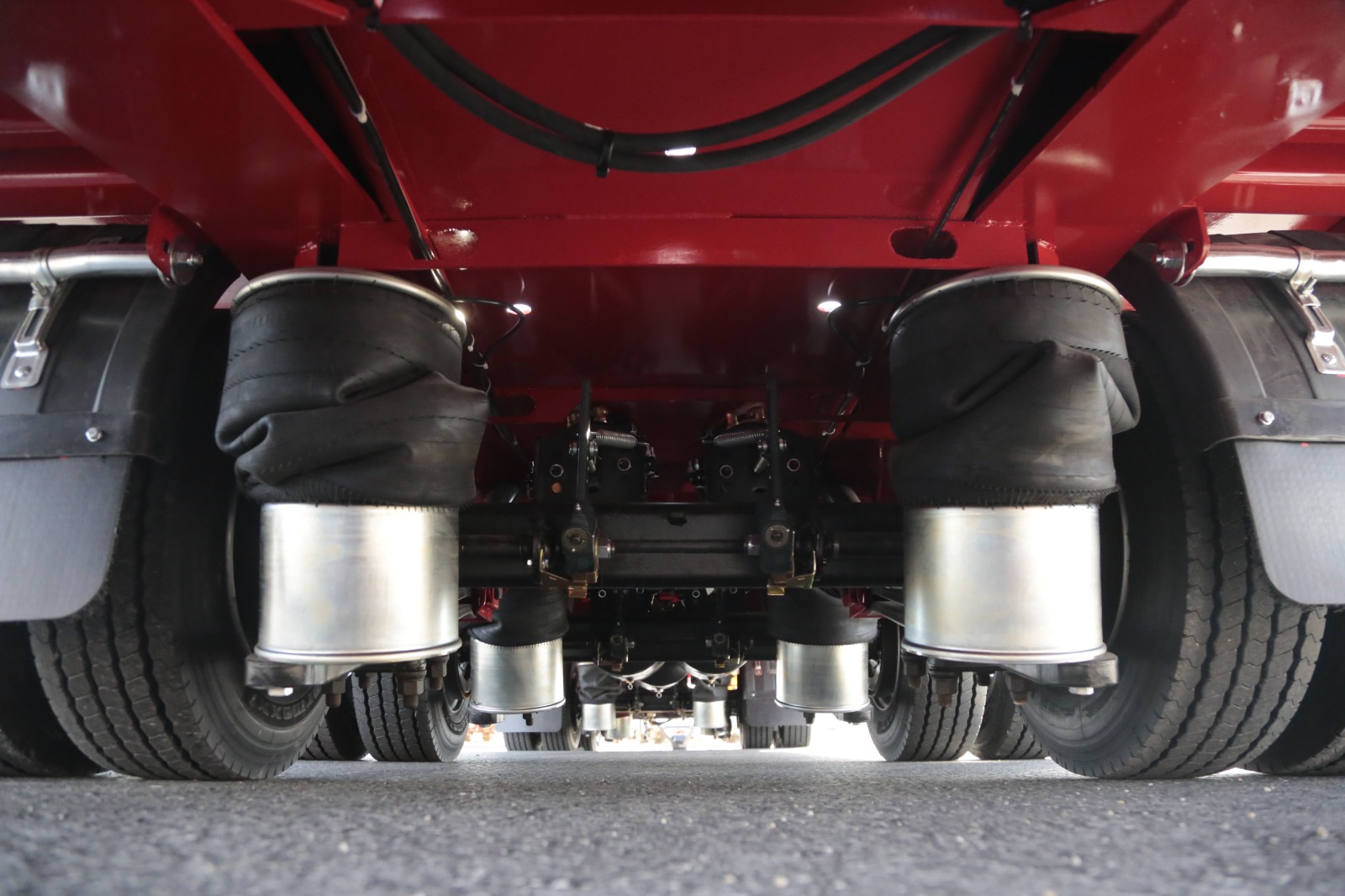

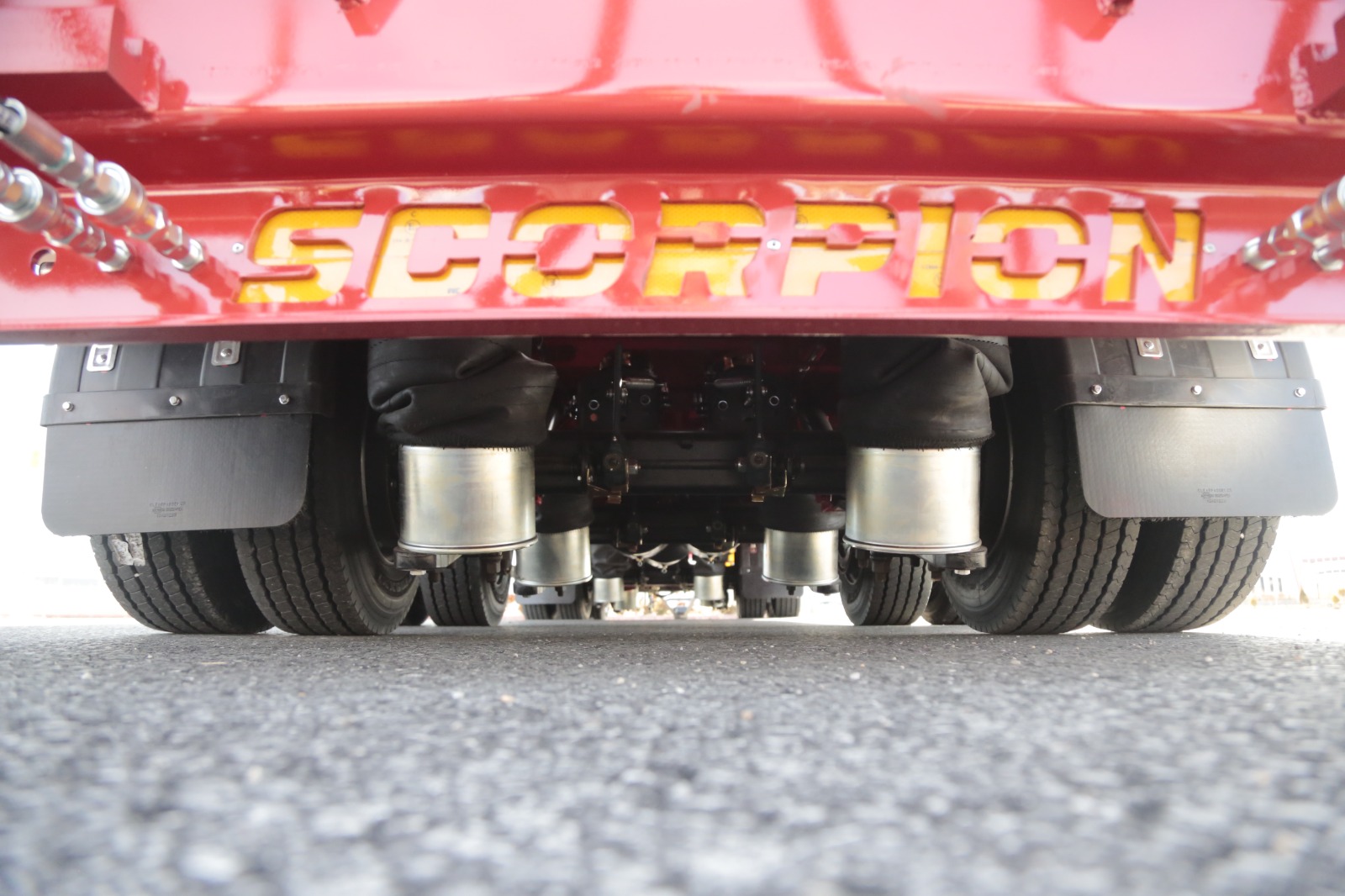

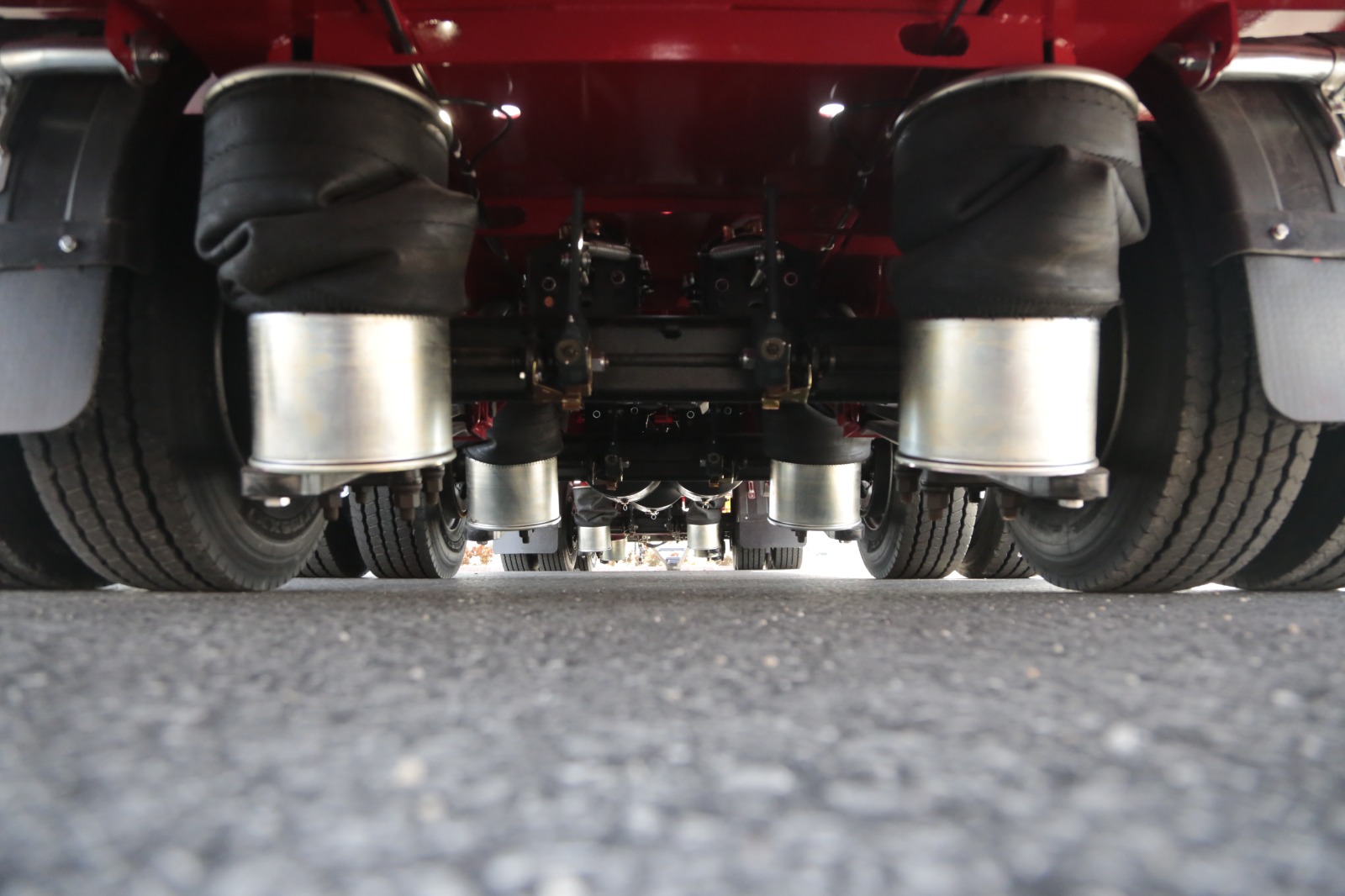

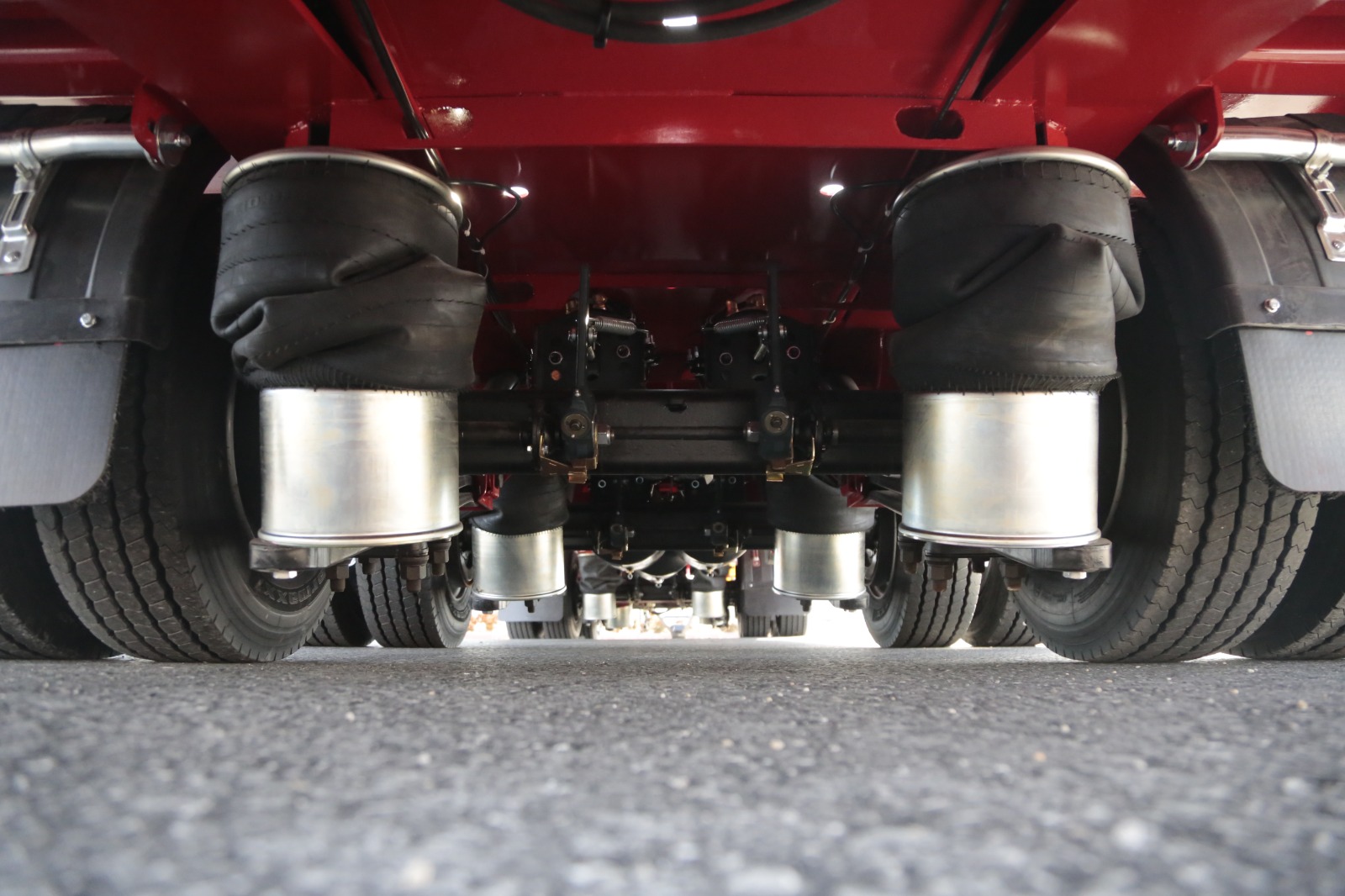

SUSPENSION: Air Suspension.

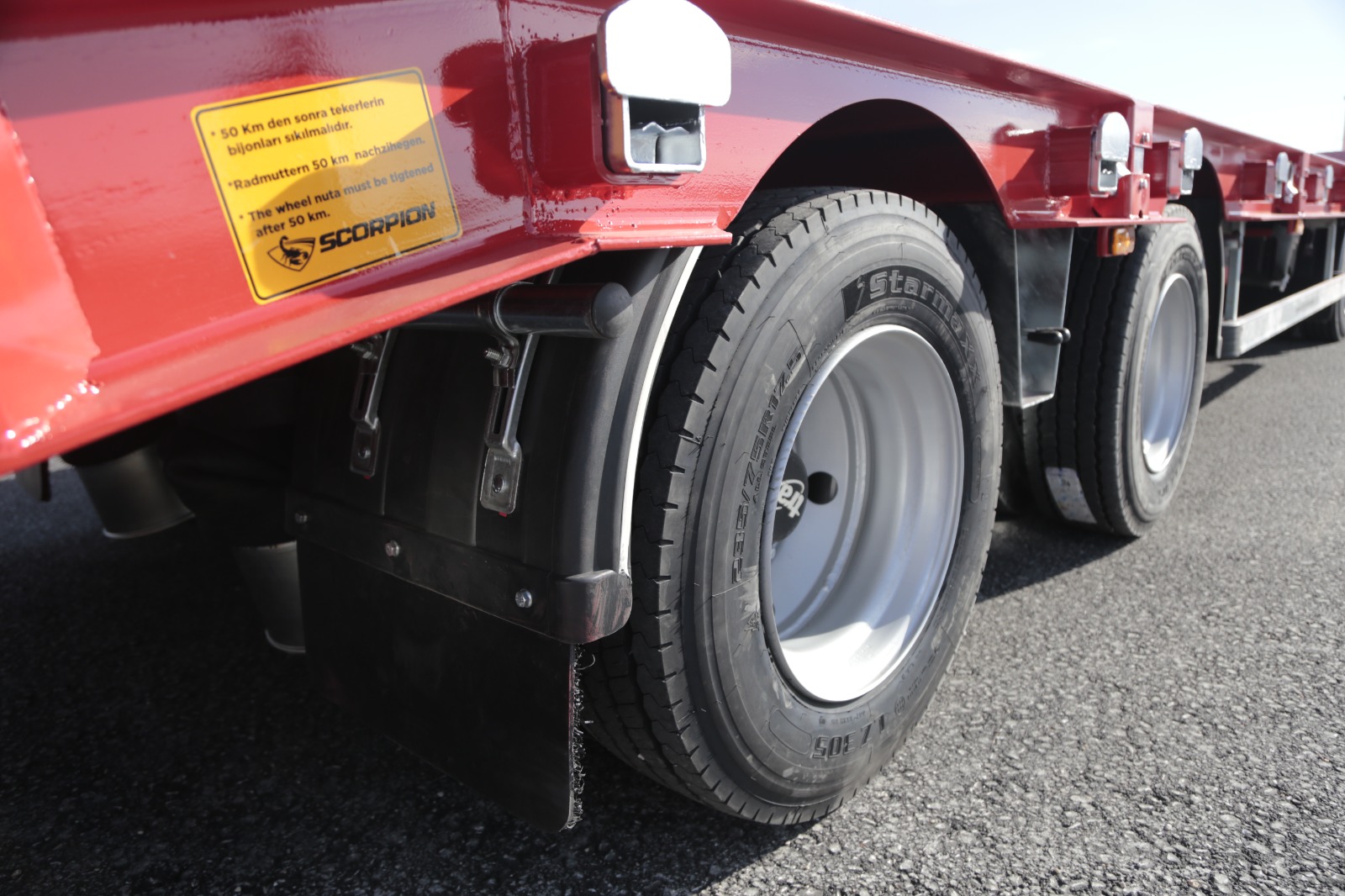

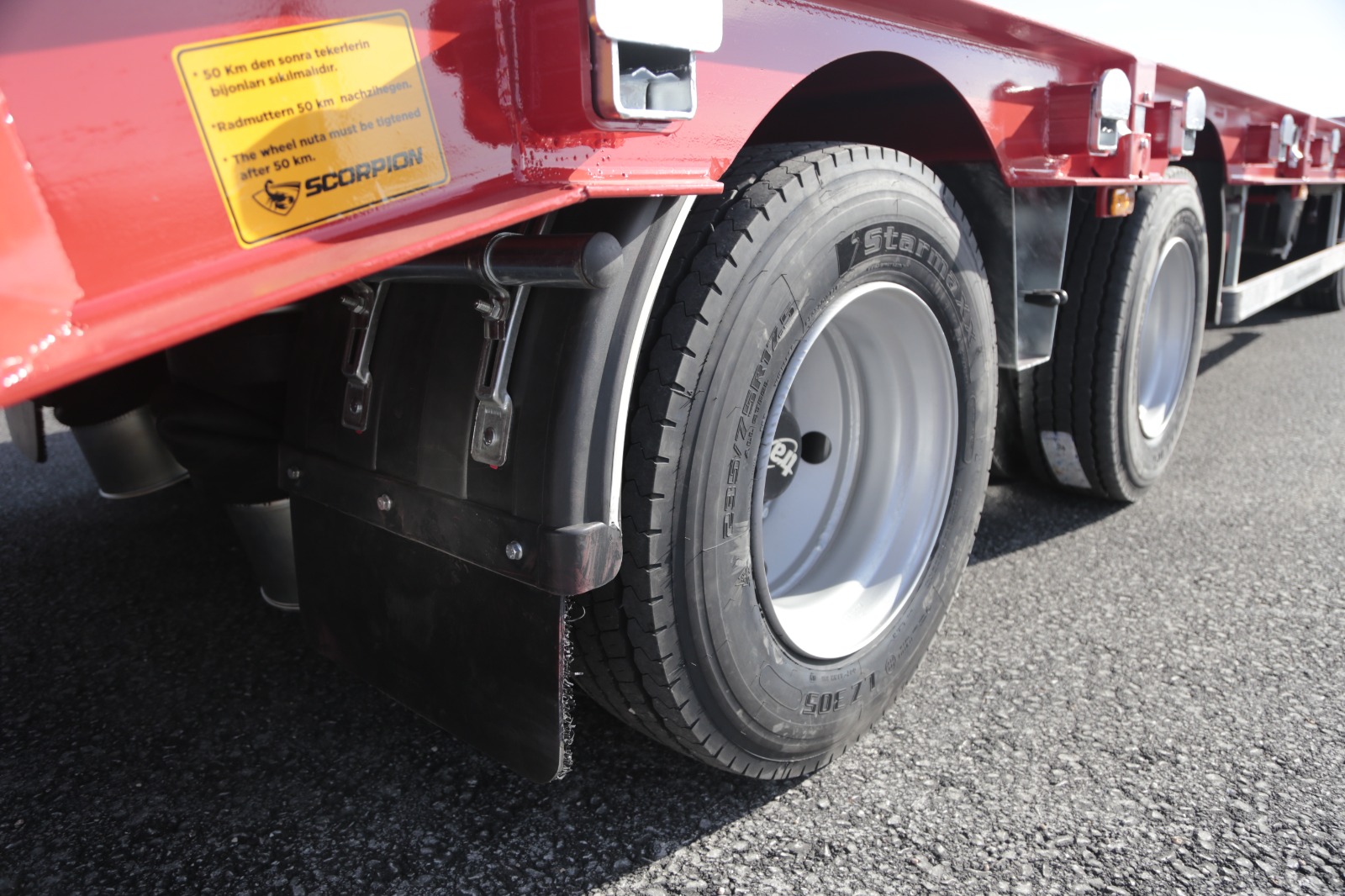

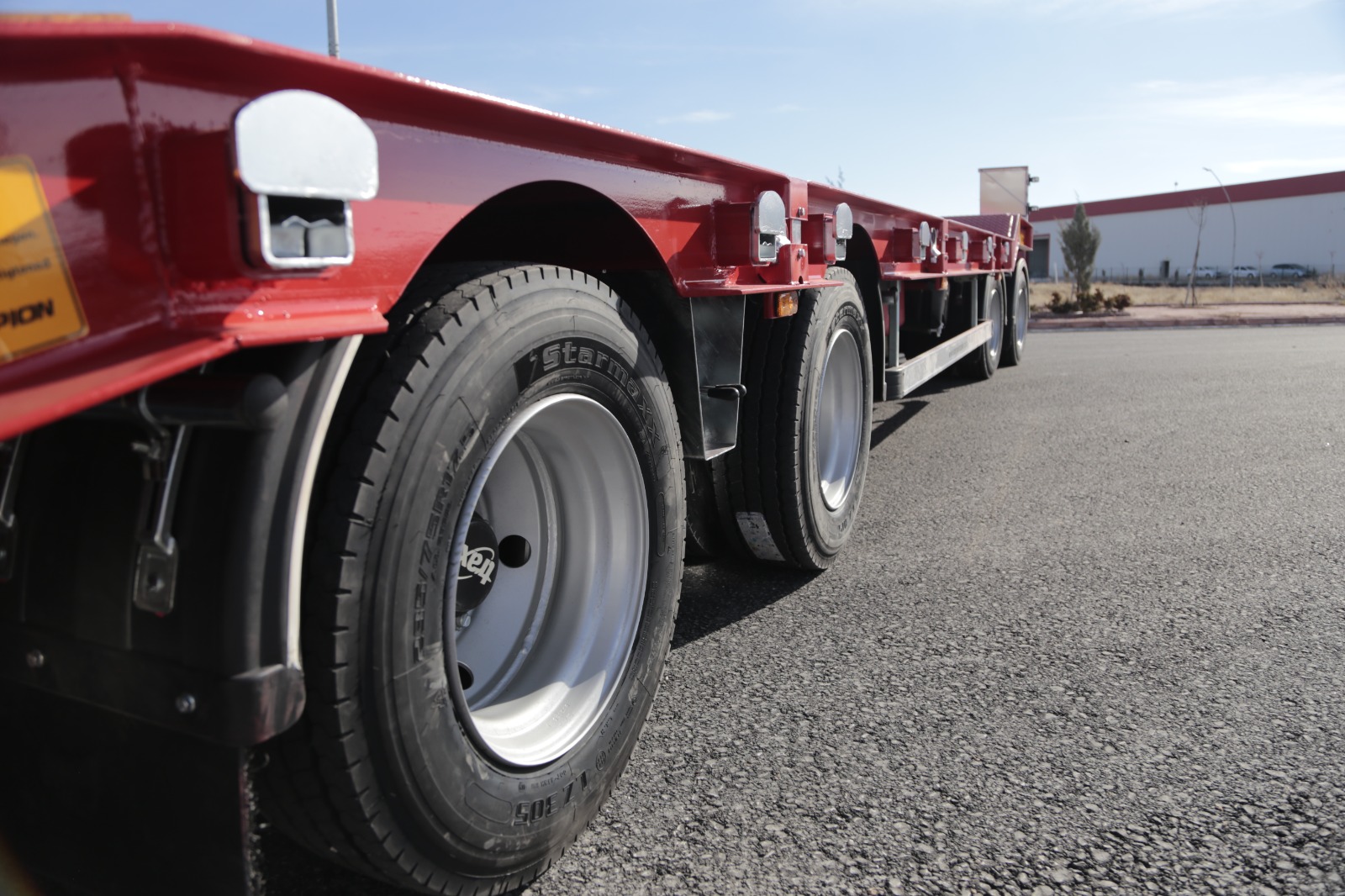

TIRES AND RIMS: Tire options suitable for 17,5” rims.

ELECTRICAL SYSTEM: 24 V Electrical system in accordance with European Standards.

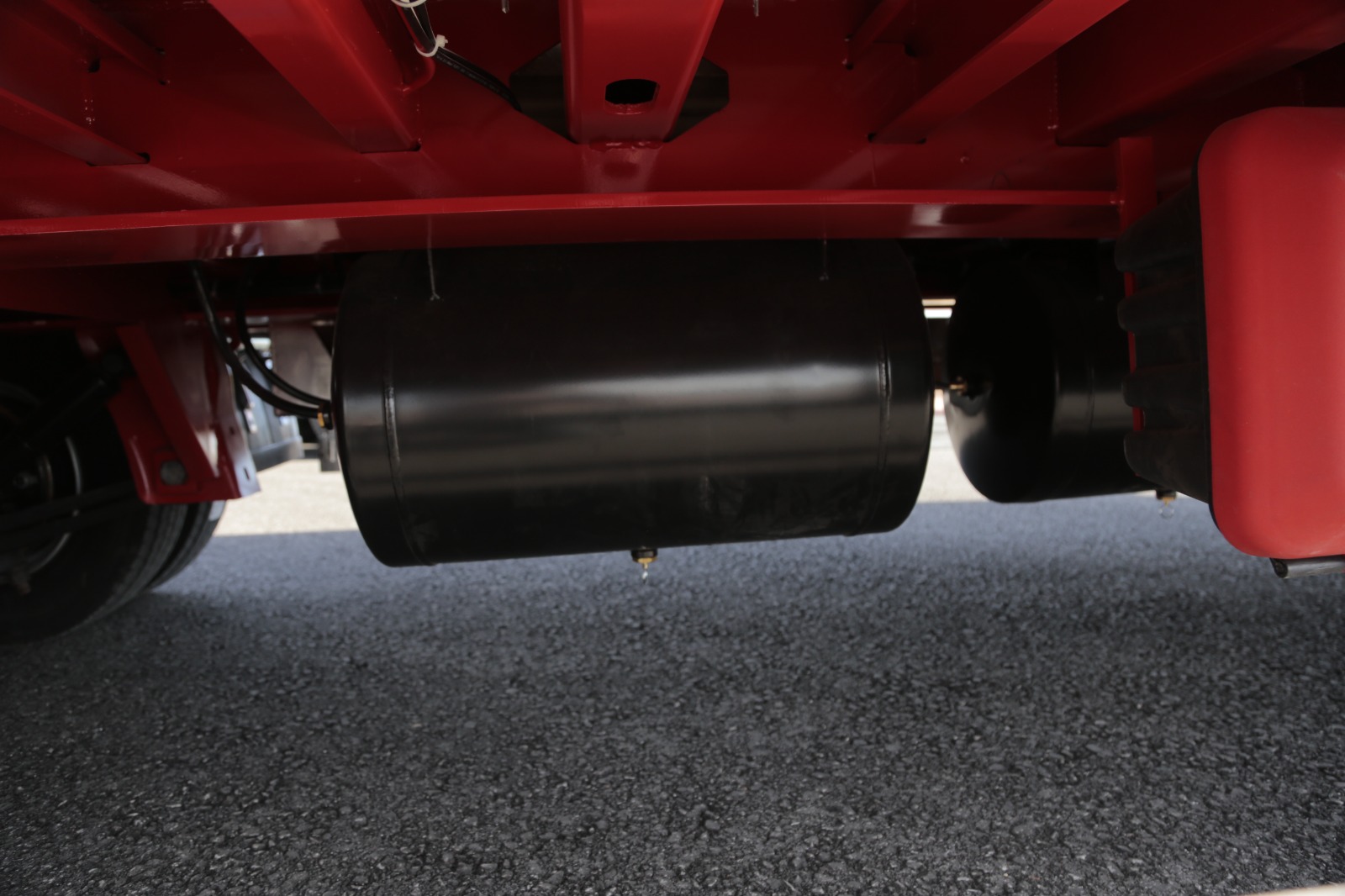

BRAKE SYSTEM: EBS brake system (4S/2M)(4S/3M) in conformity with 71 /320 / EWG or ECE R 13 Regulations.

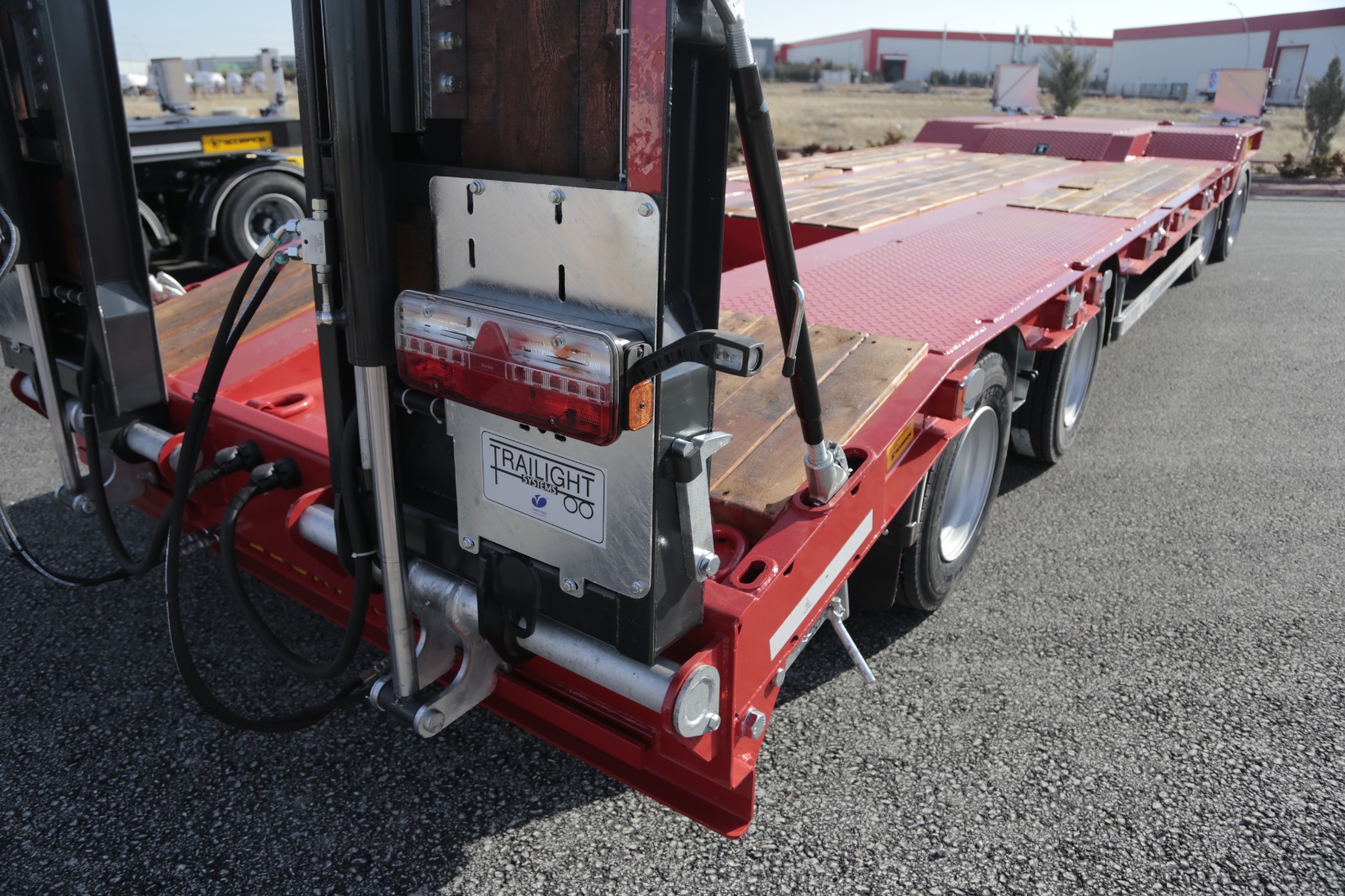

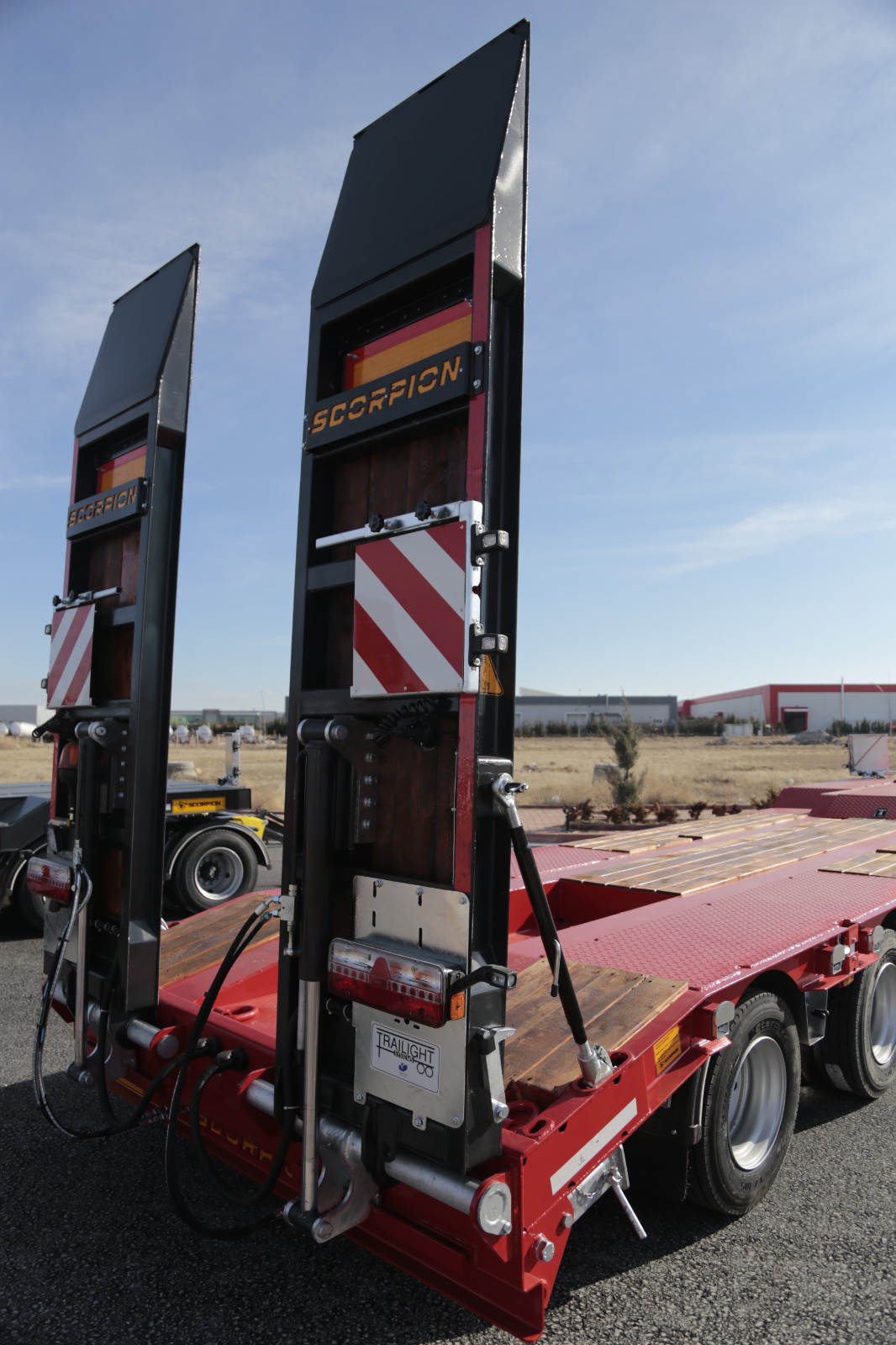

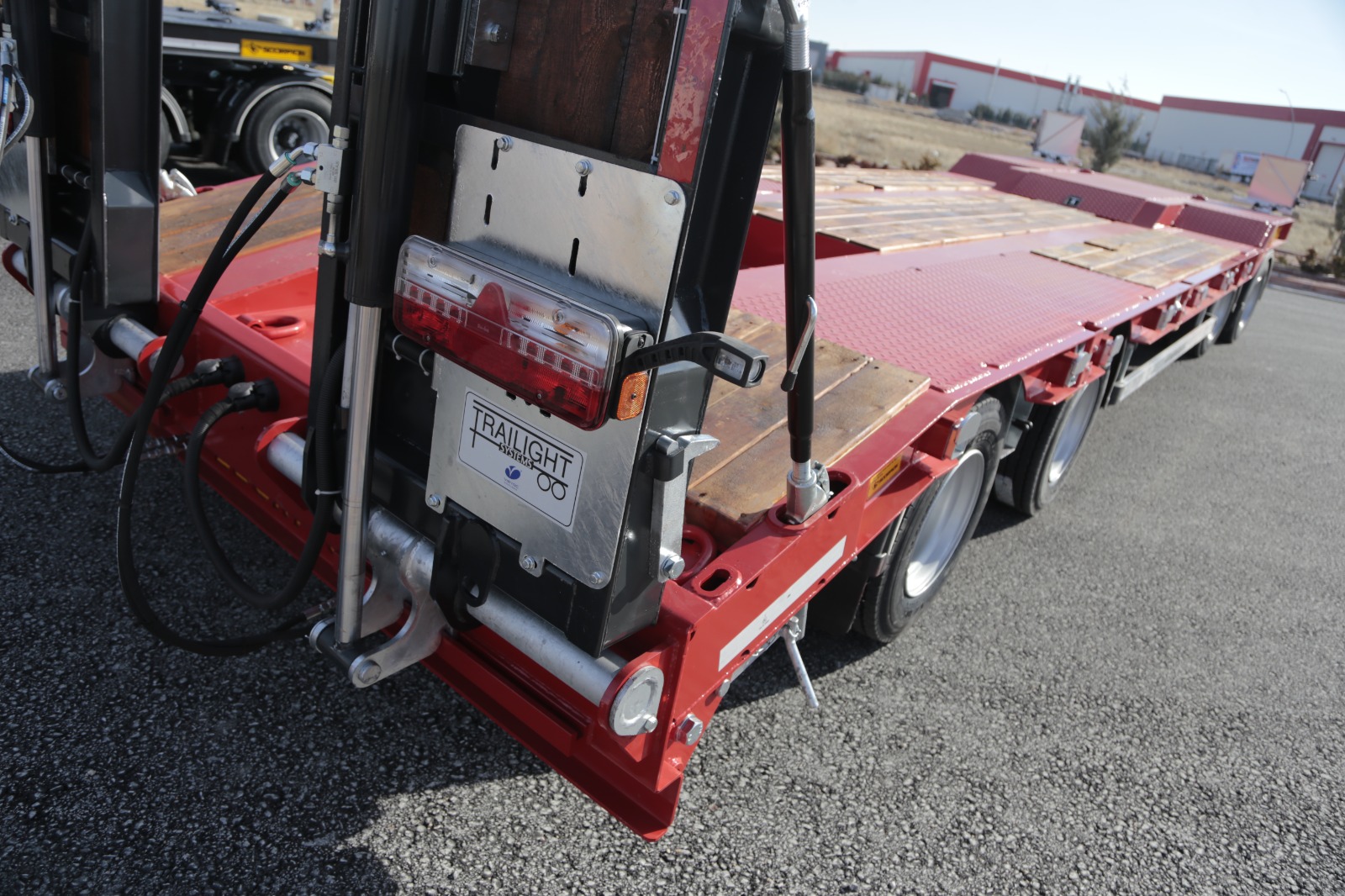

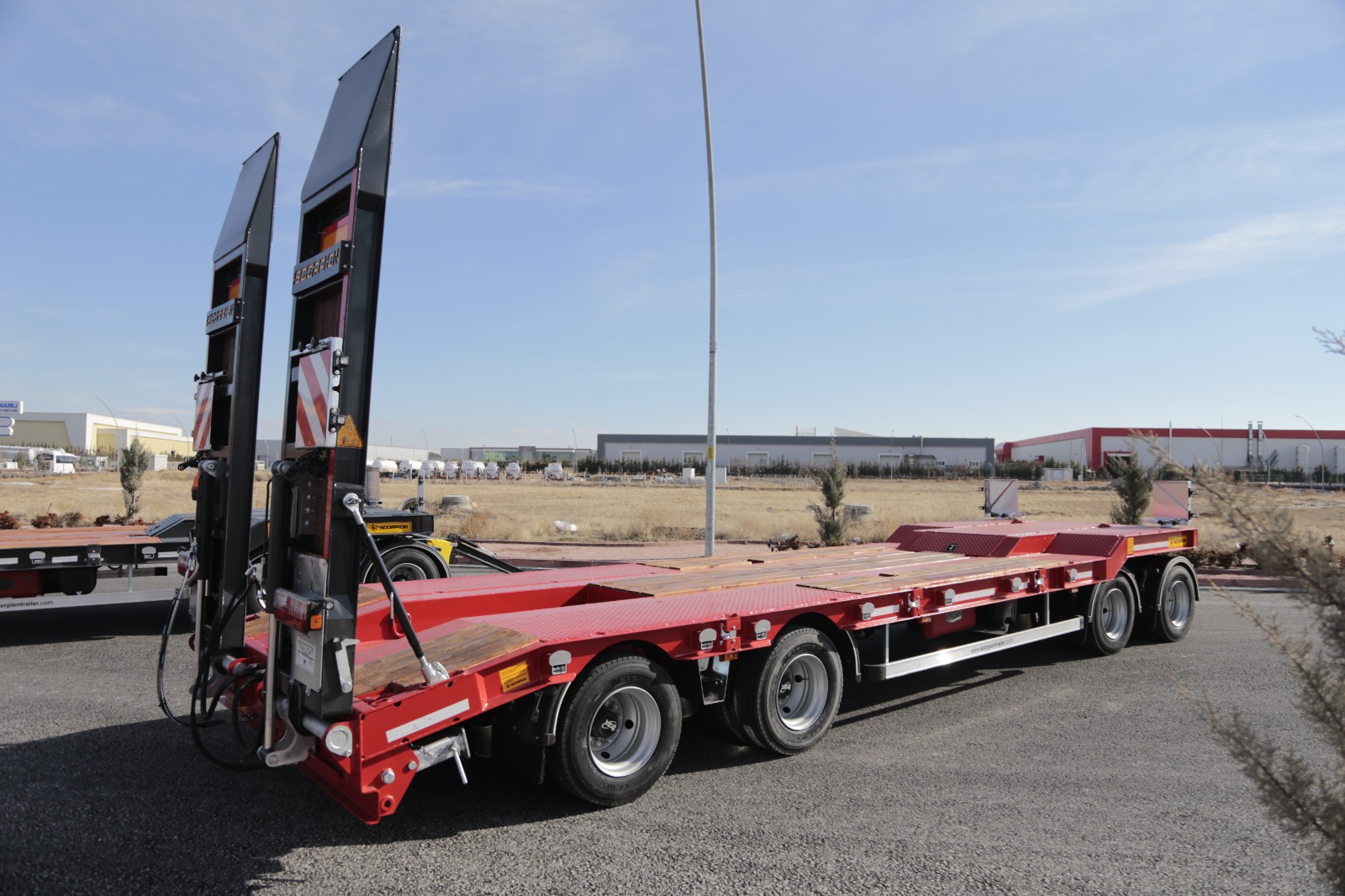

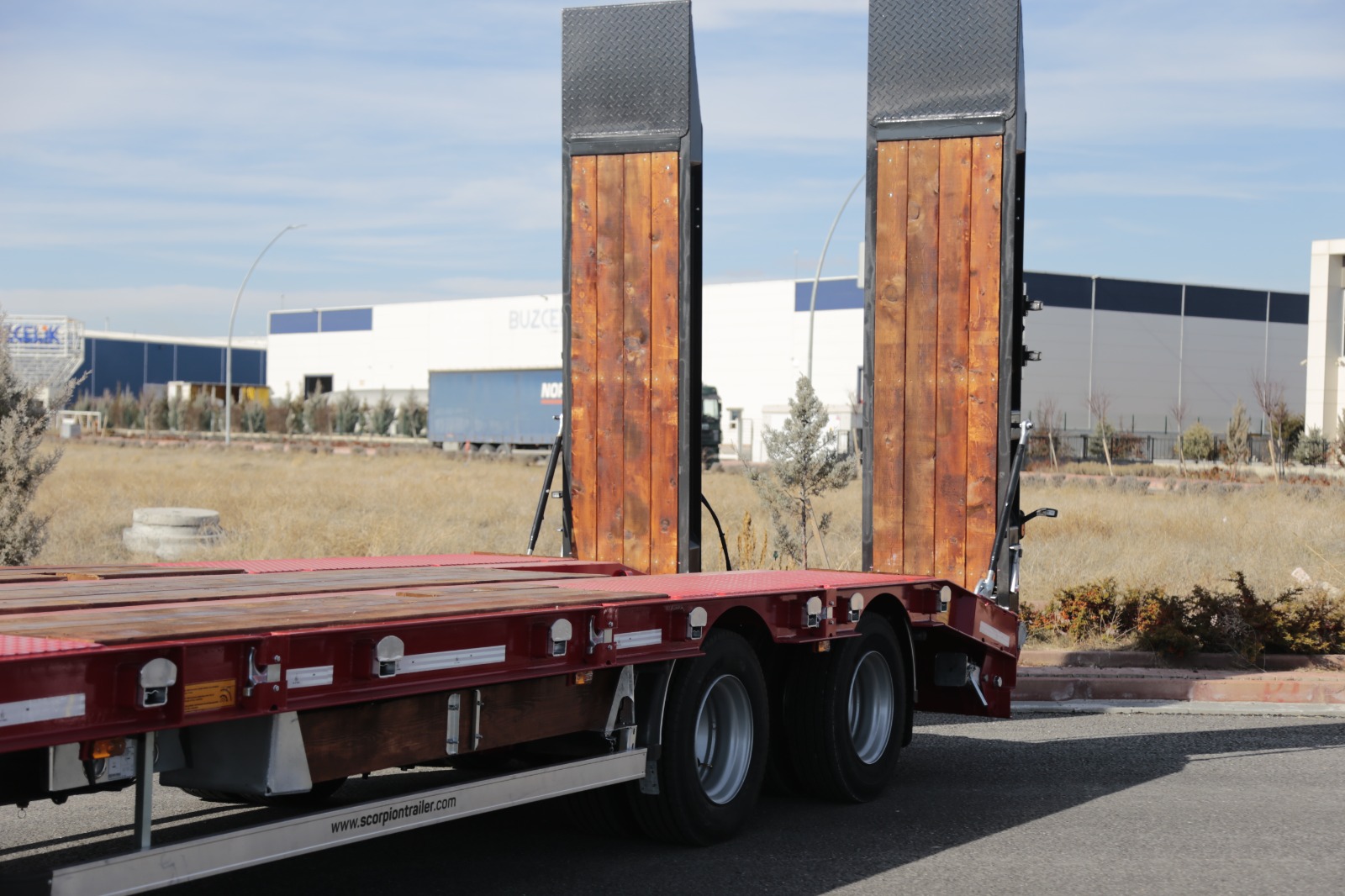

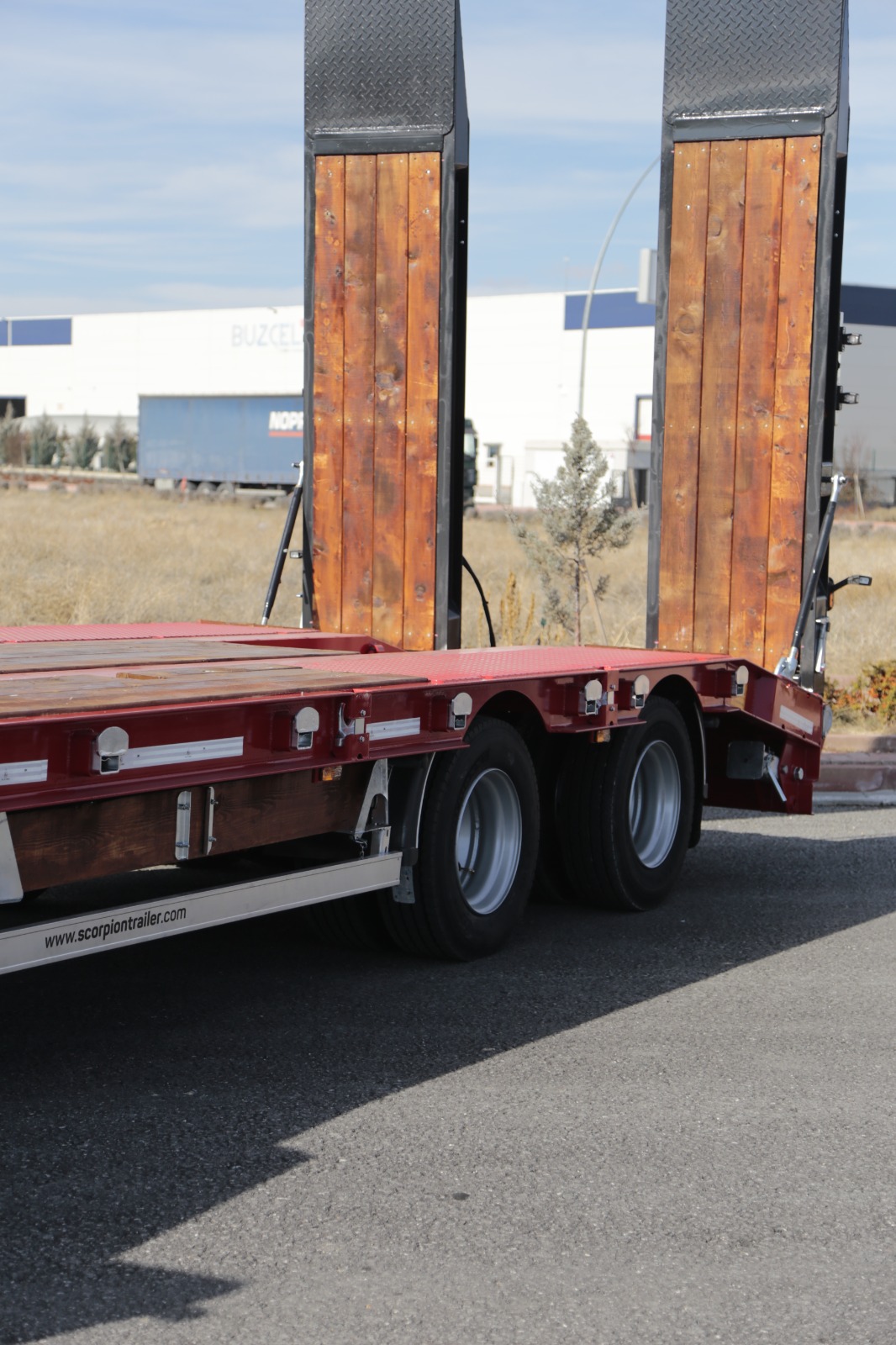

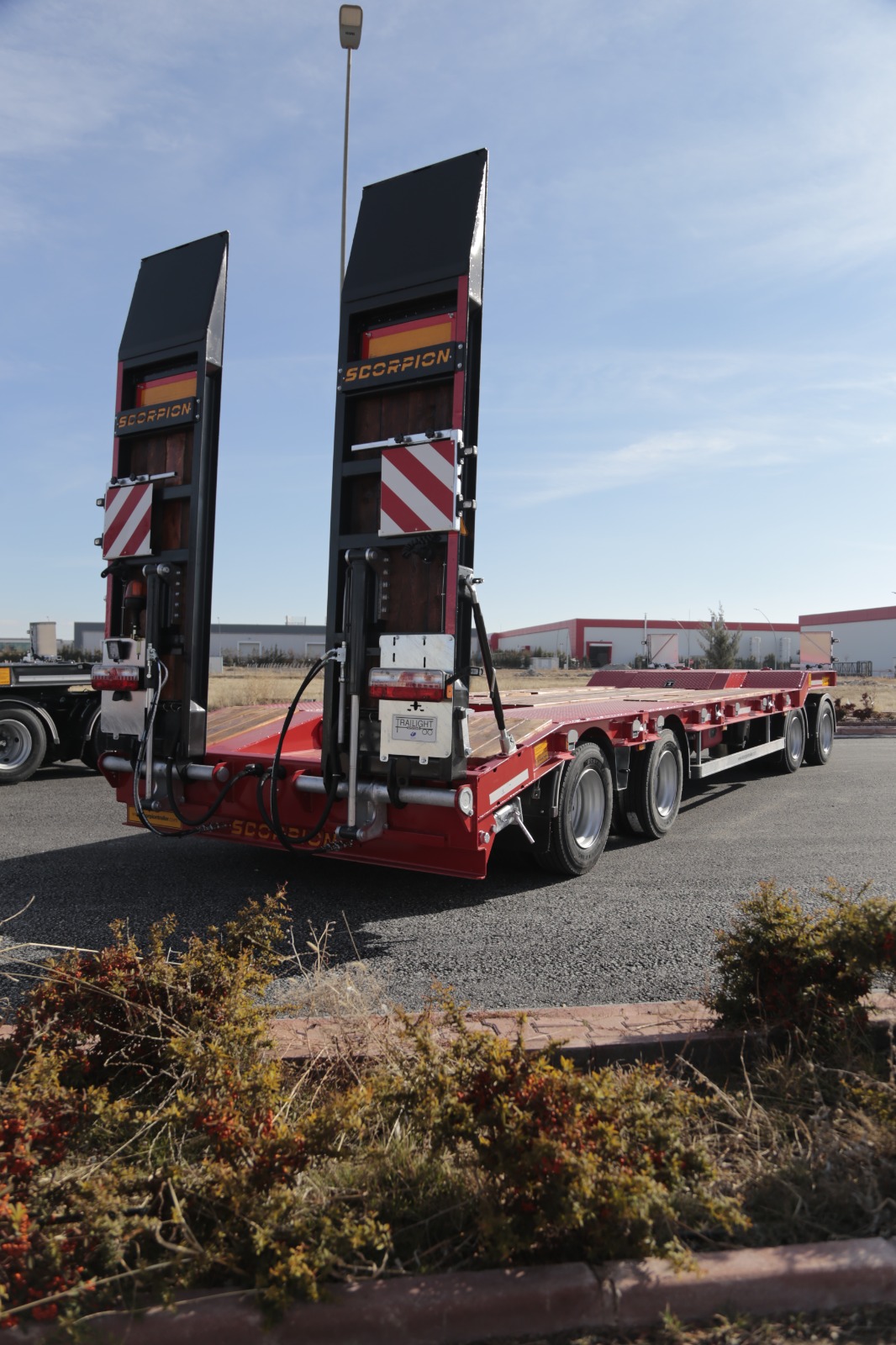

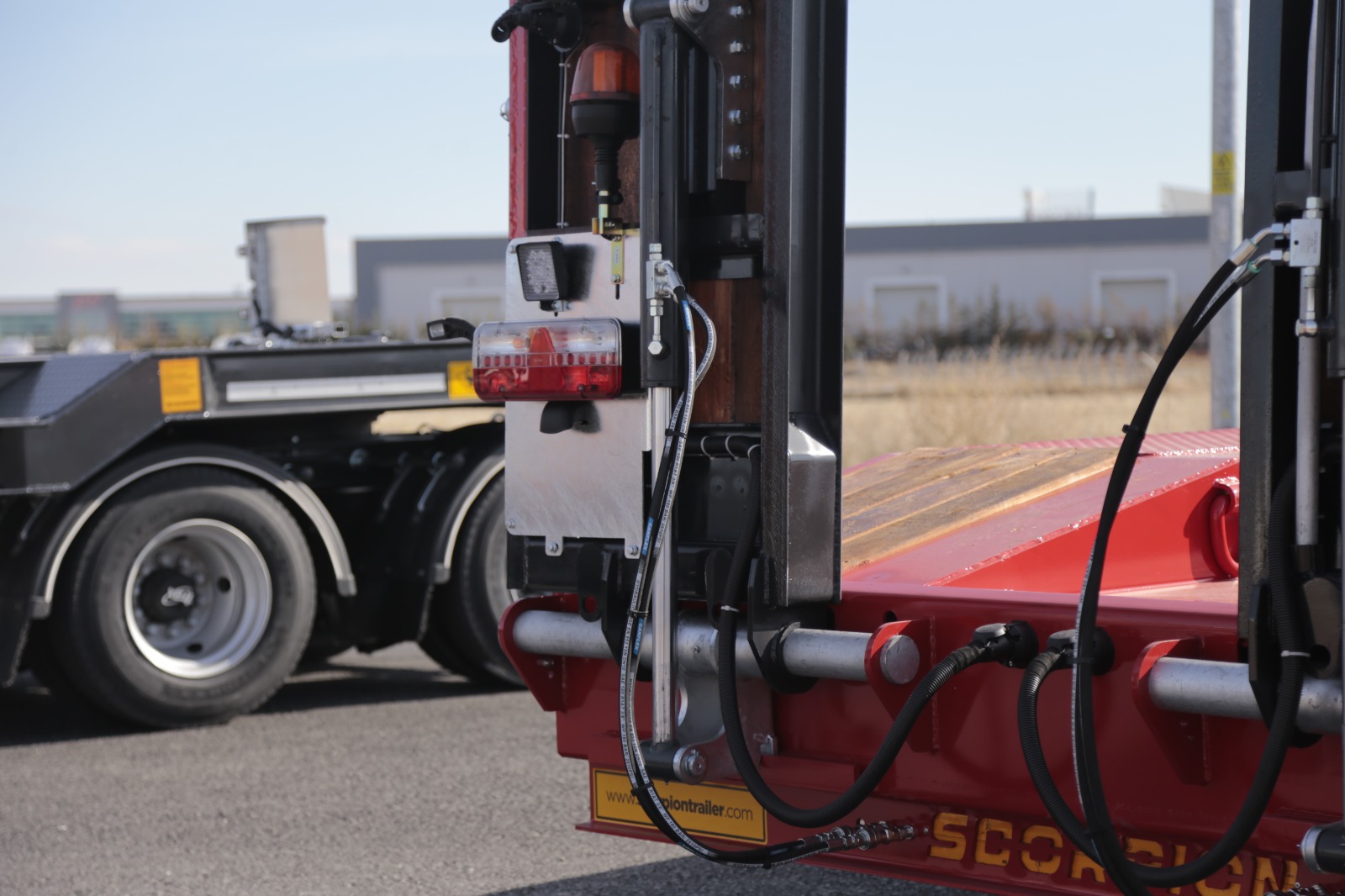

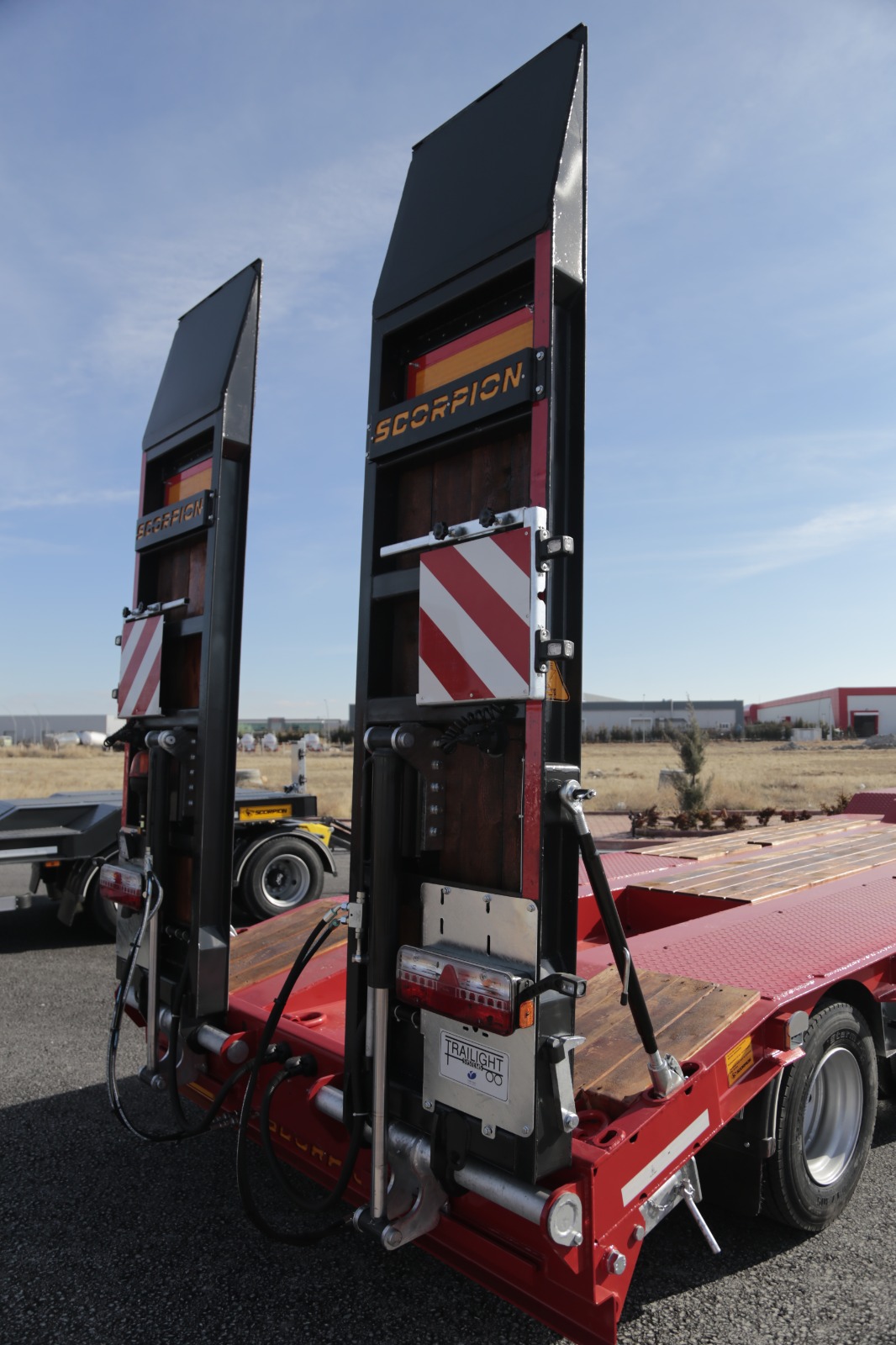

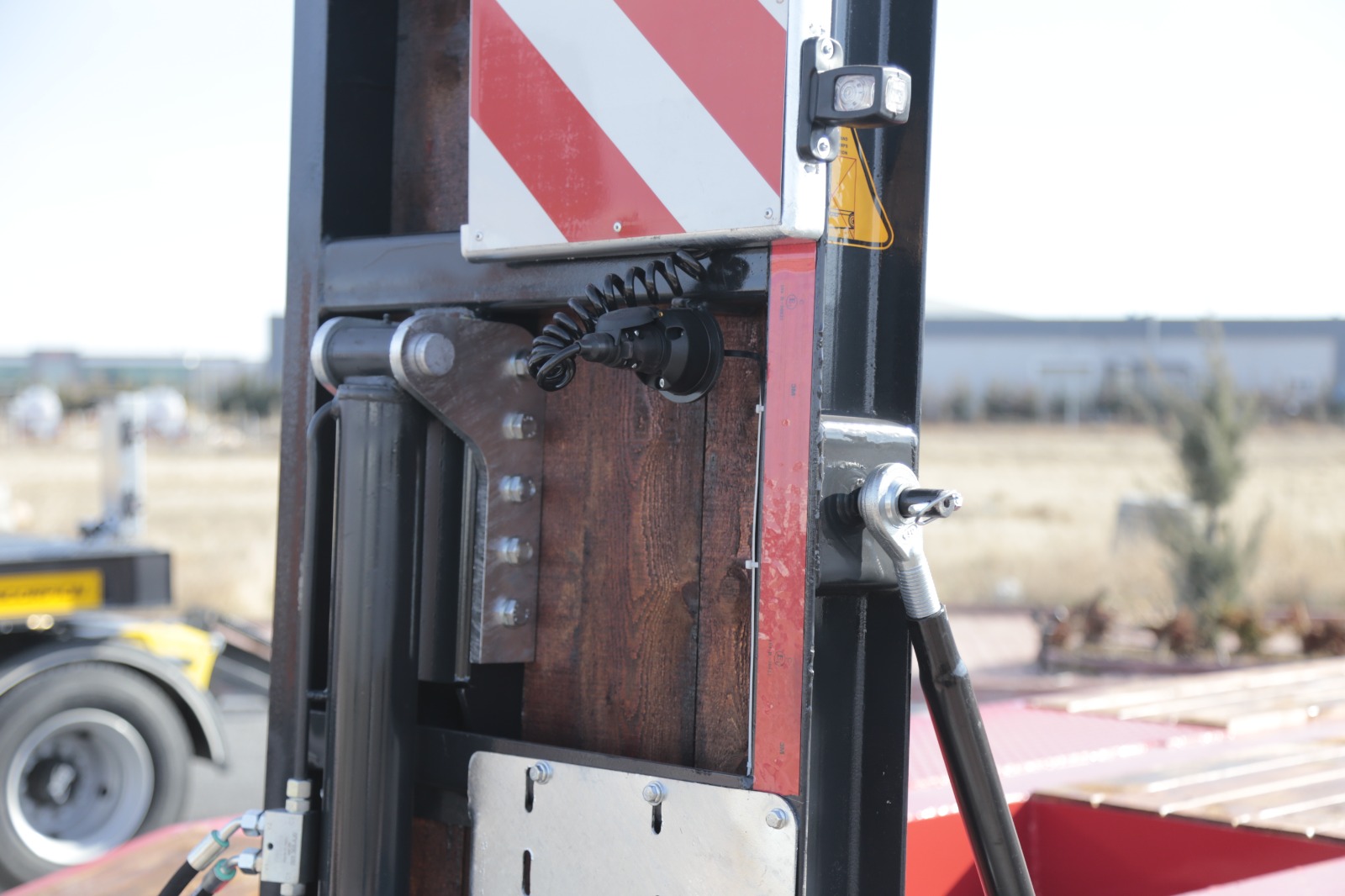

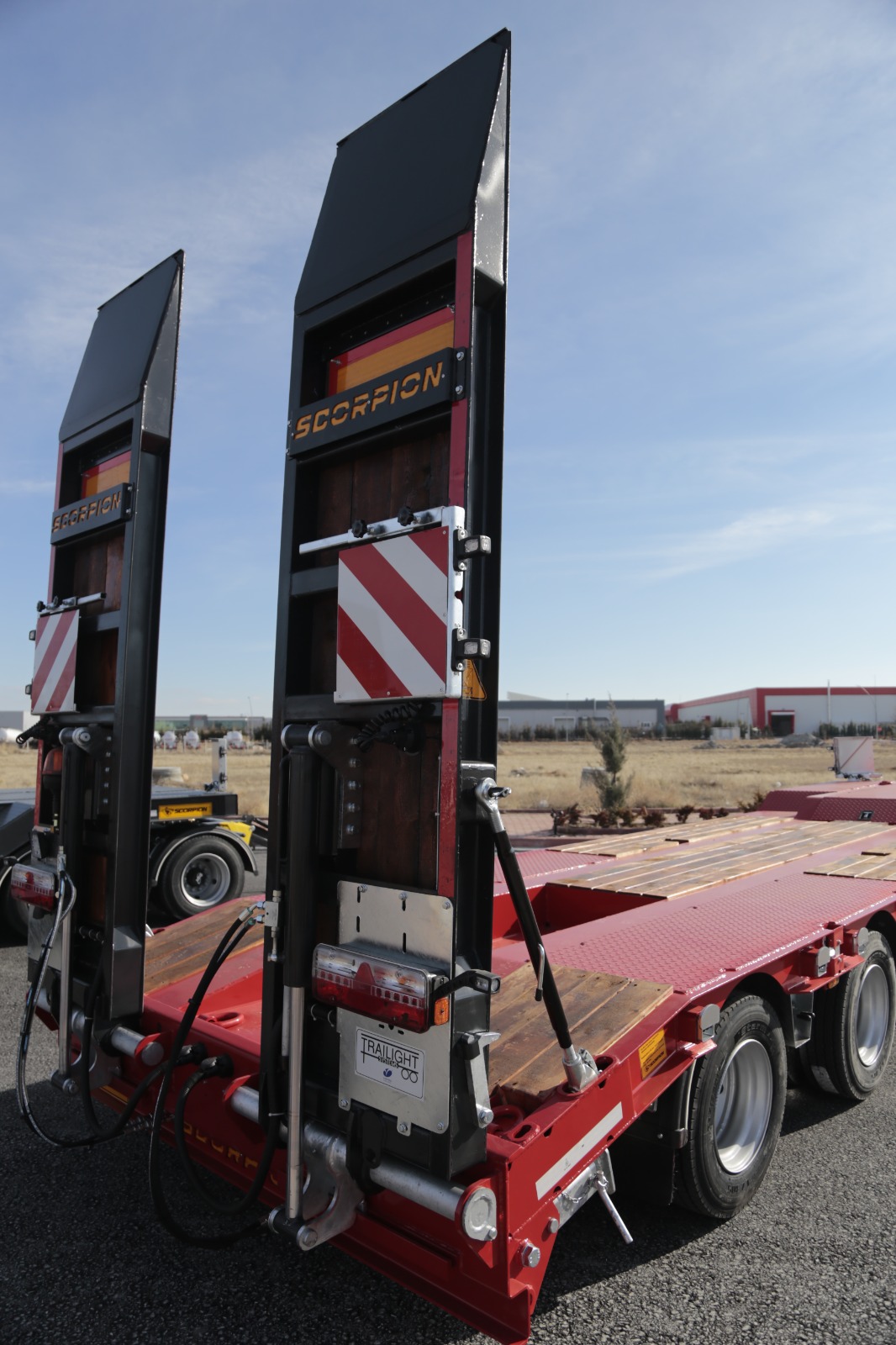

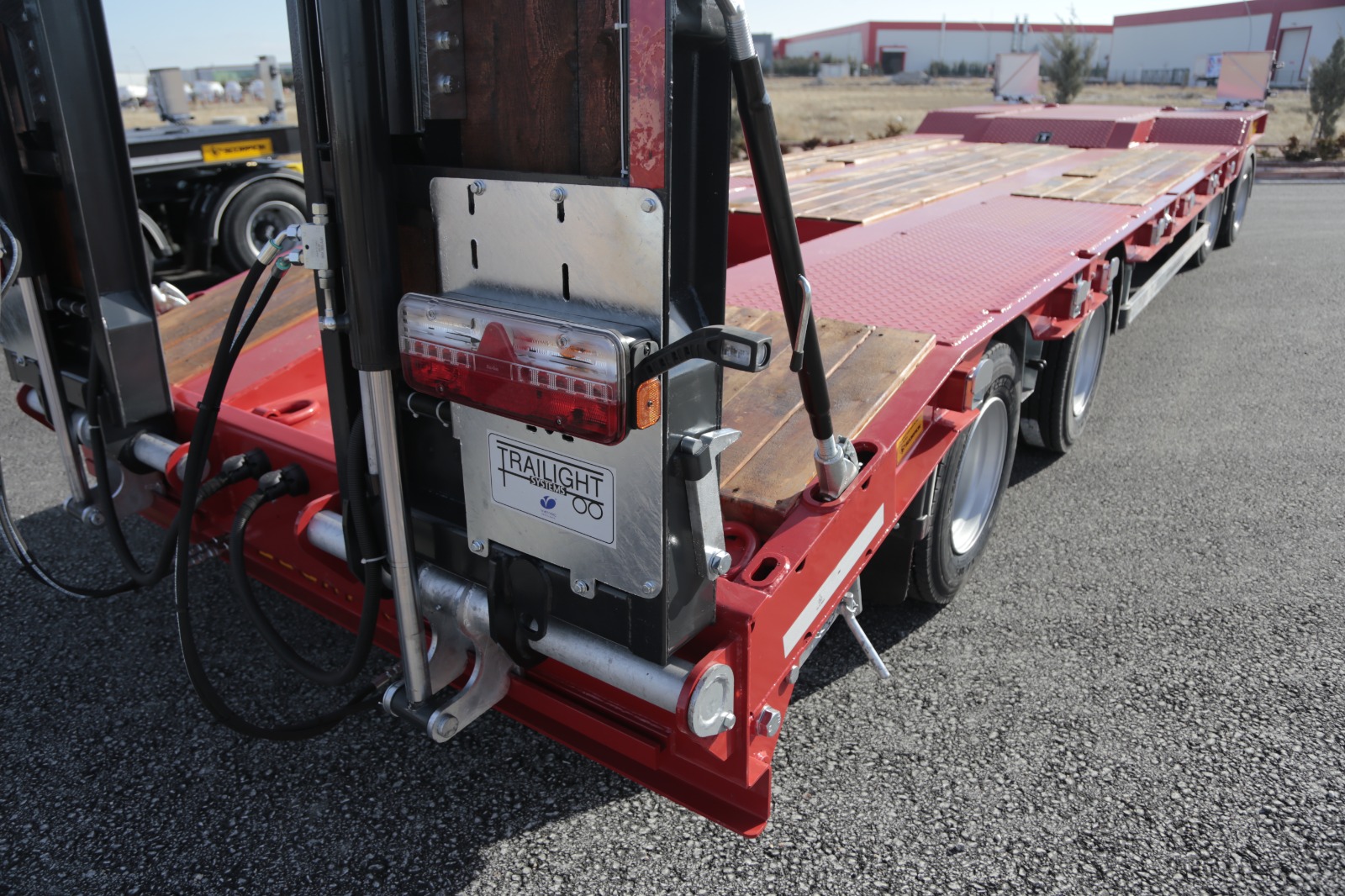

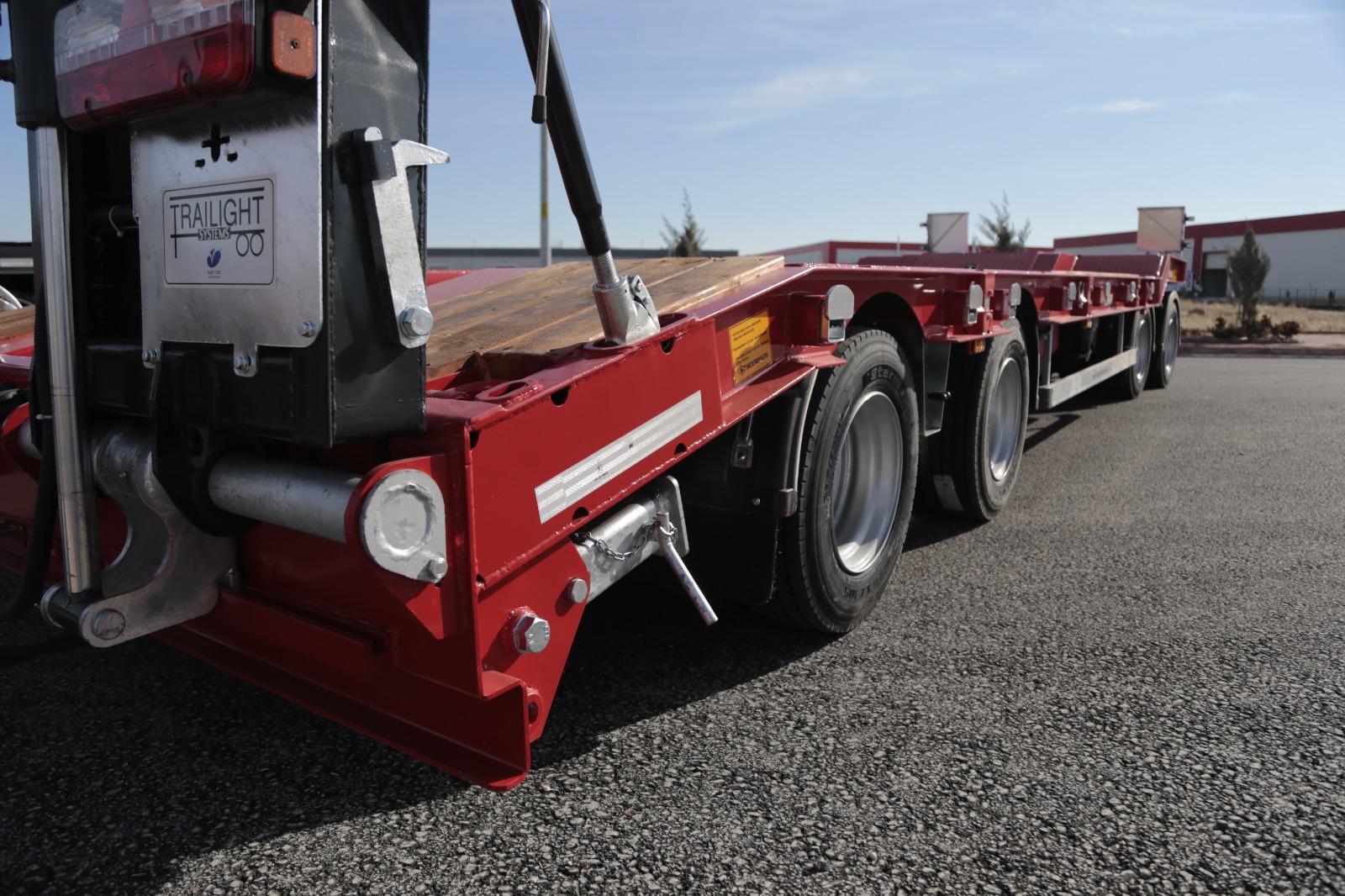

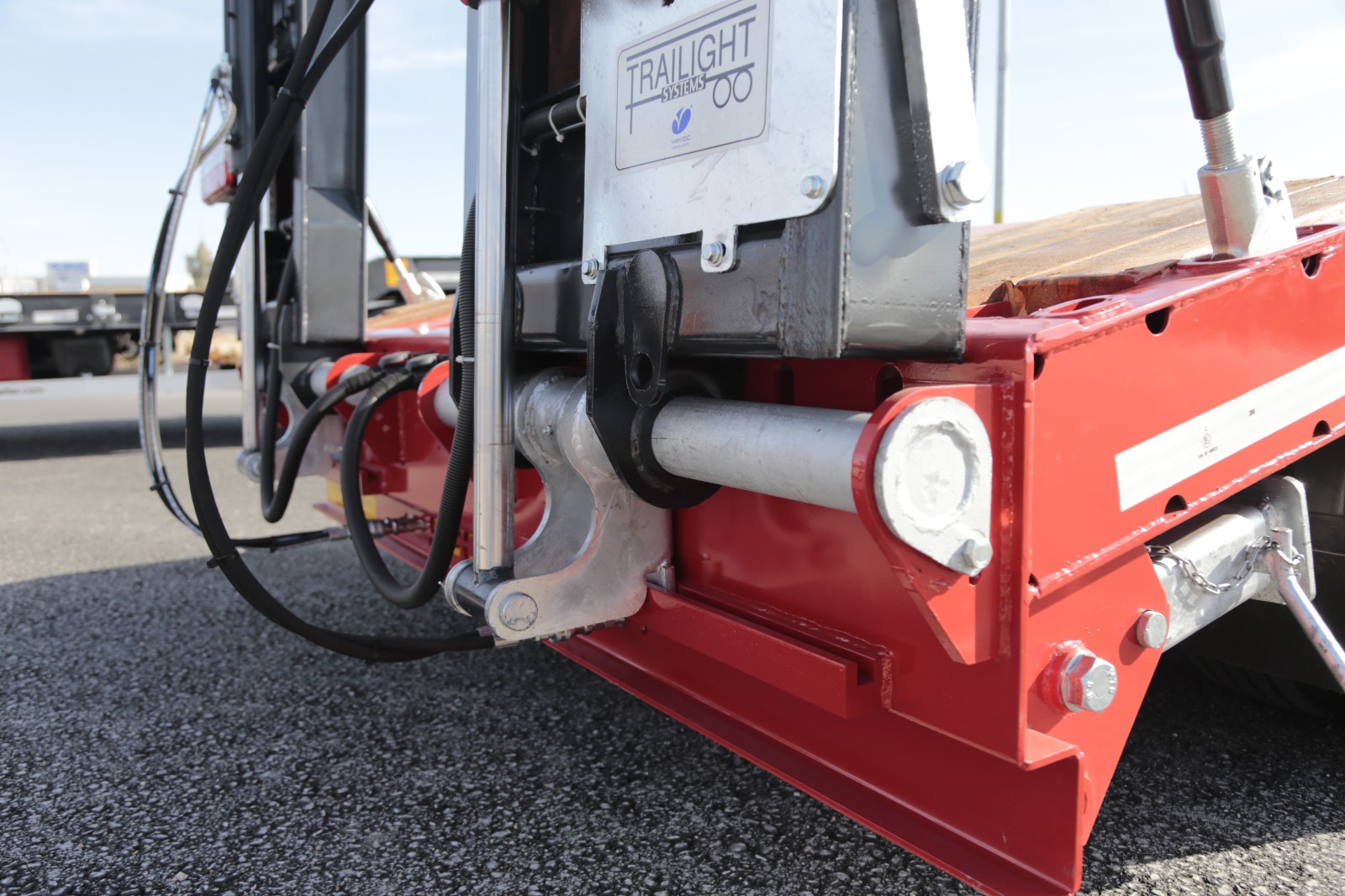

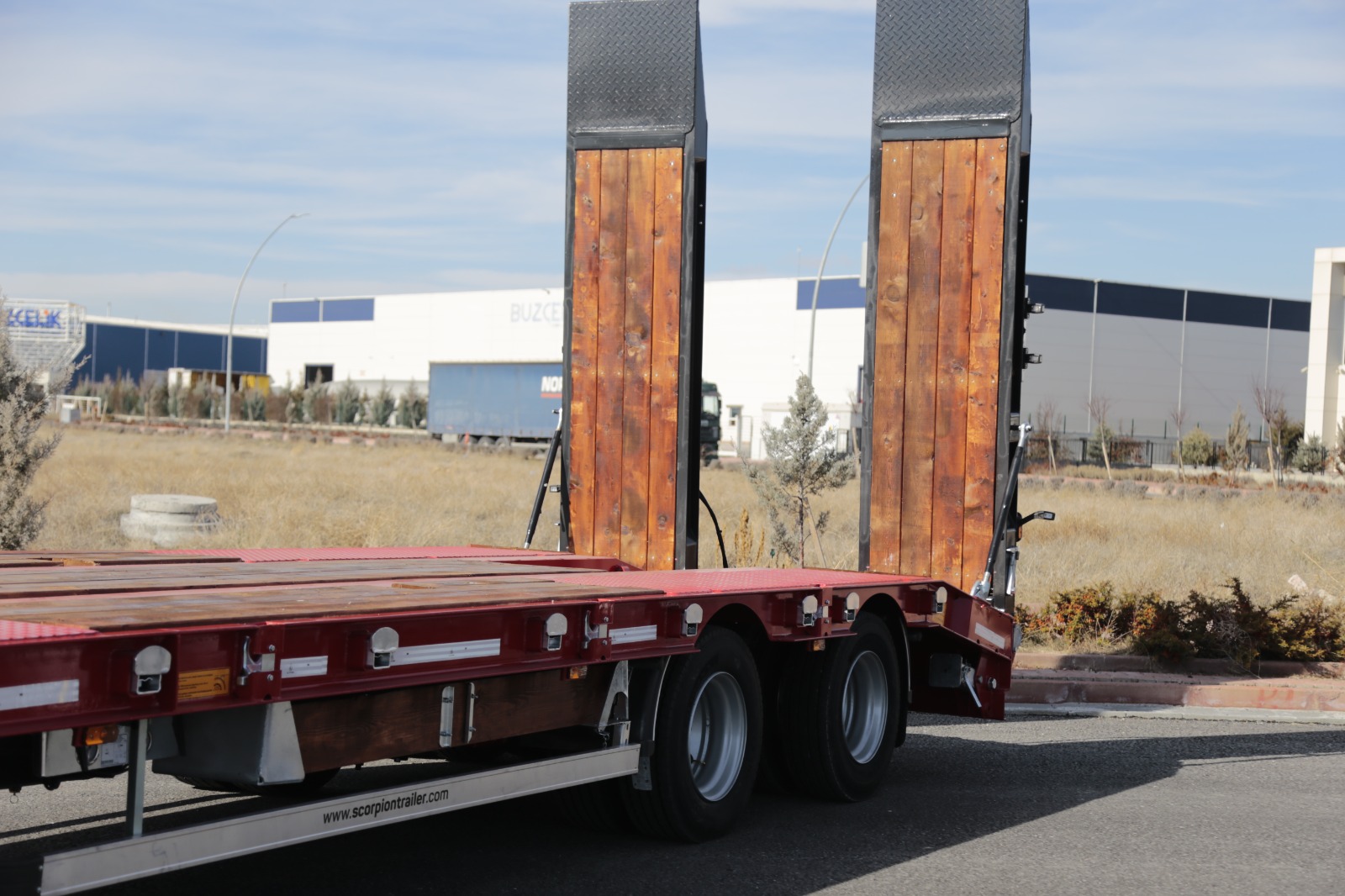

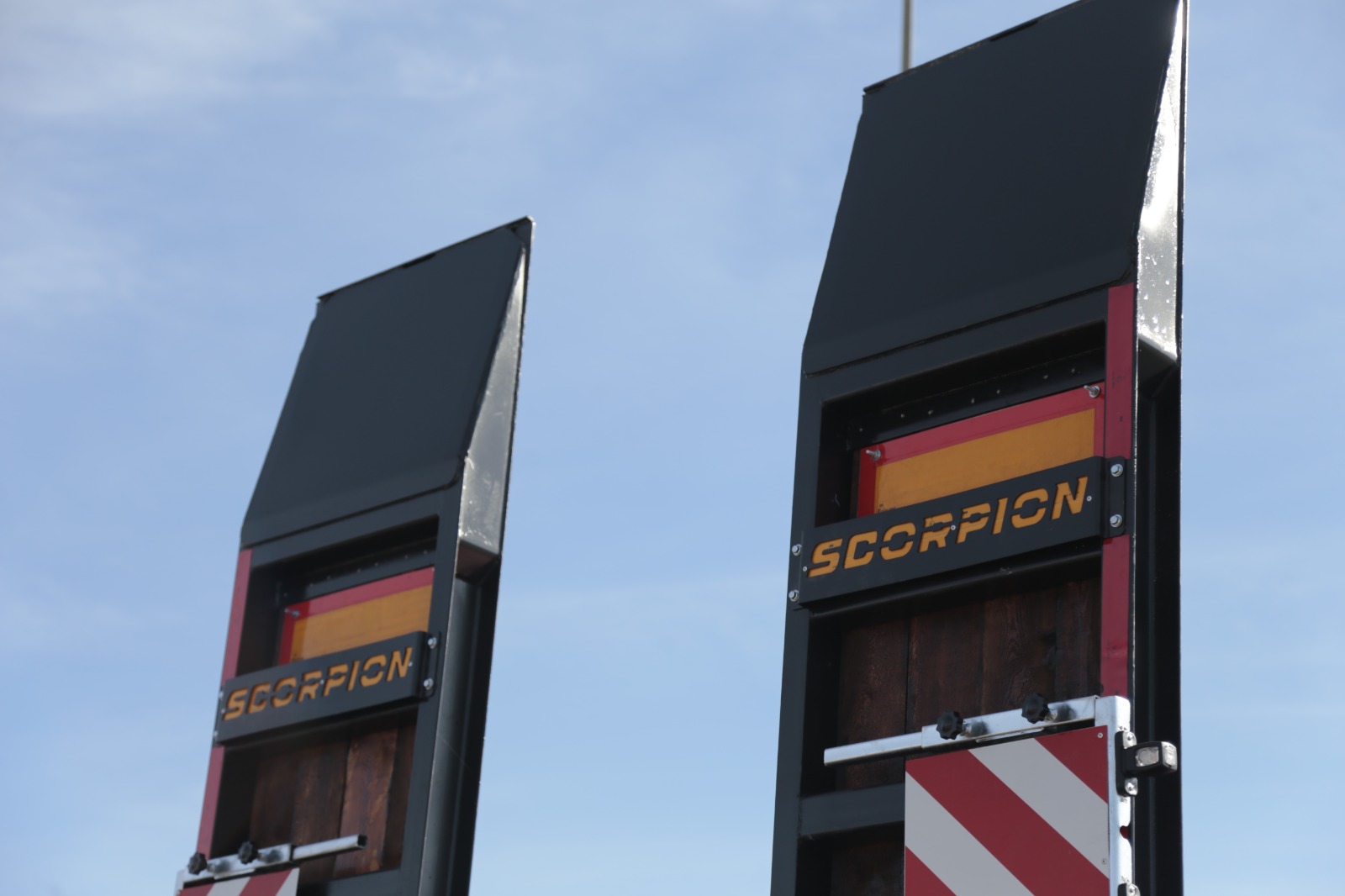

RAMPS: Hydraulic or manual operated ramps with appropriate dimensions according to the customers’ preferences.

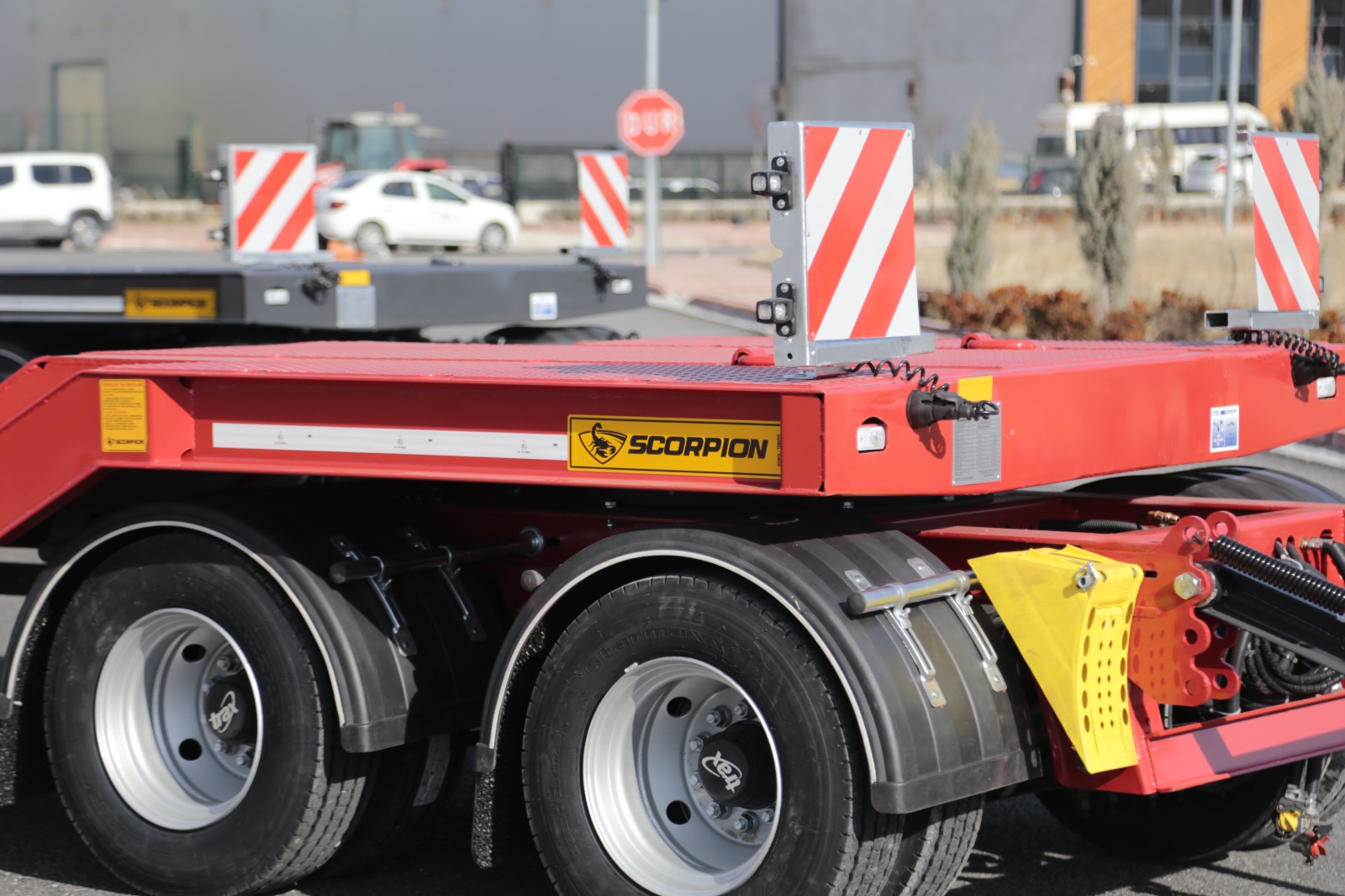

COUPLING EQUIPMENTS: SCORPION brand coupling device with 50mm - D190 KN eye in accordance with European Standards.

TURNTABLE: 110 ‘’ U’’ type double ball casting DEKSAN brand turntable with a carrying capacity of 30 tons is used.

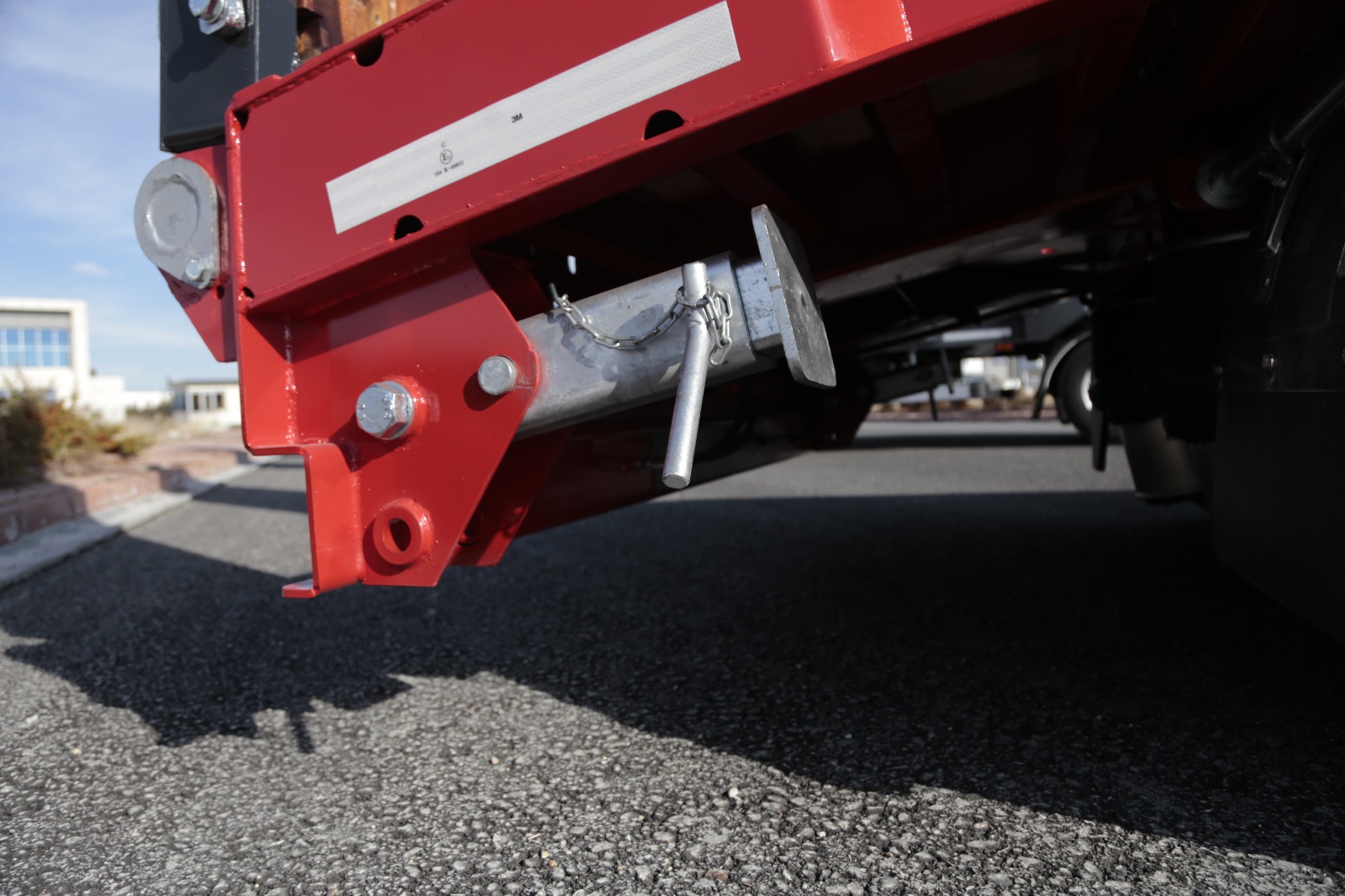

REAR STABILIZER BARS

GROSS WEIGHT: 44.100 Kgs

NET WEIGHT: 9.000 Kgs

LADEN MASS WEIGHT: 35.100 Kgs

Painting or galvanizing options are available according to the customers’ requests.

Main chassis and entire vehicle will be painted in paint oven as Washing + Sandblasting + two coat epoxy primer + two coat acrylic paint.

WHEEL CHOCK: Plastic (2 Pcs).

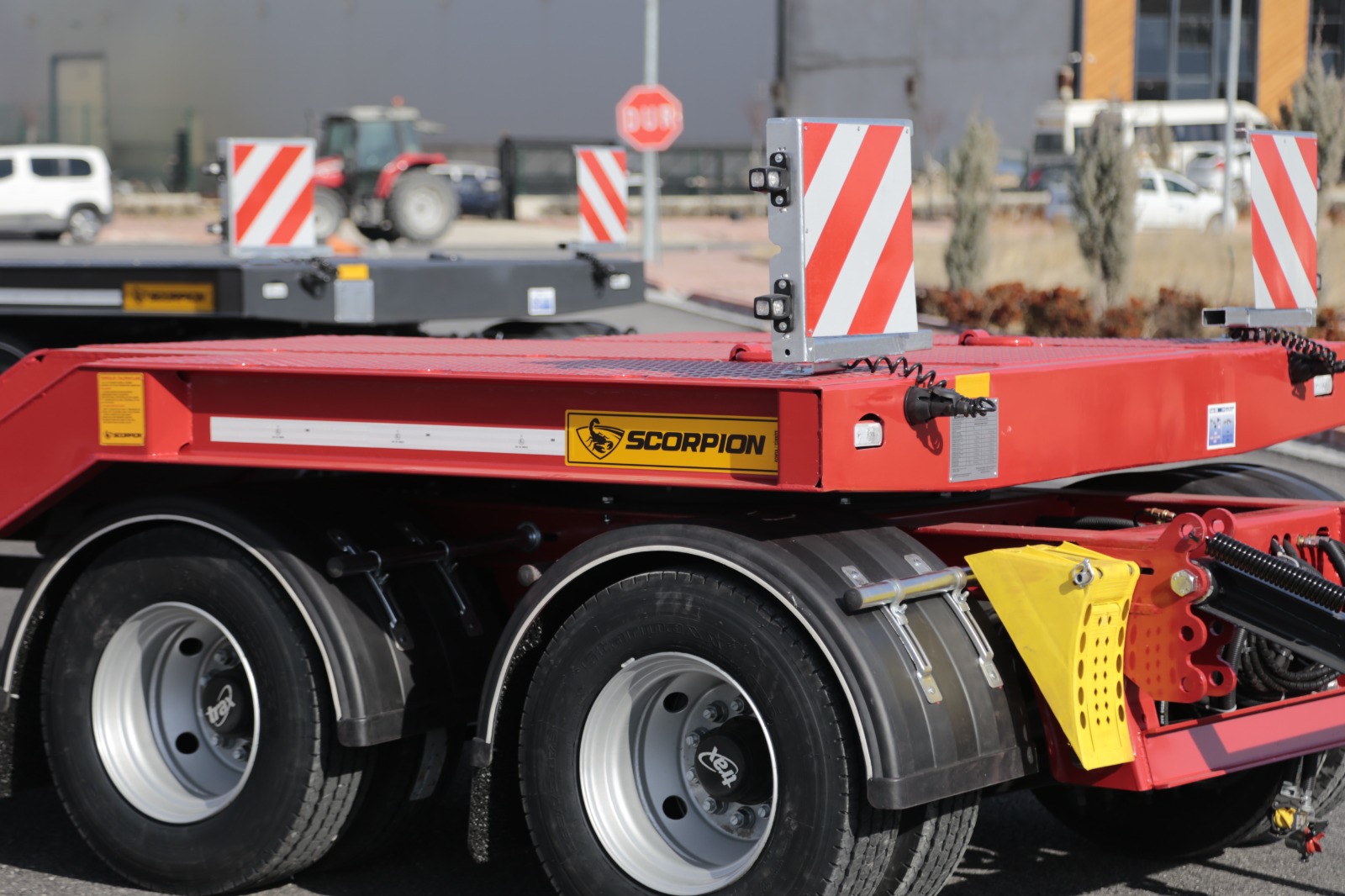

FENDER : Plastic Fenders.

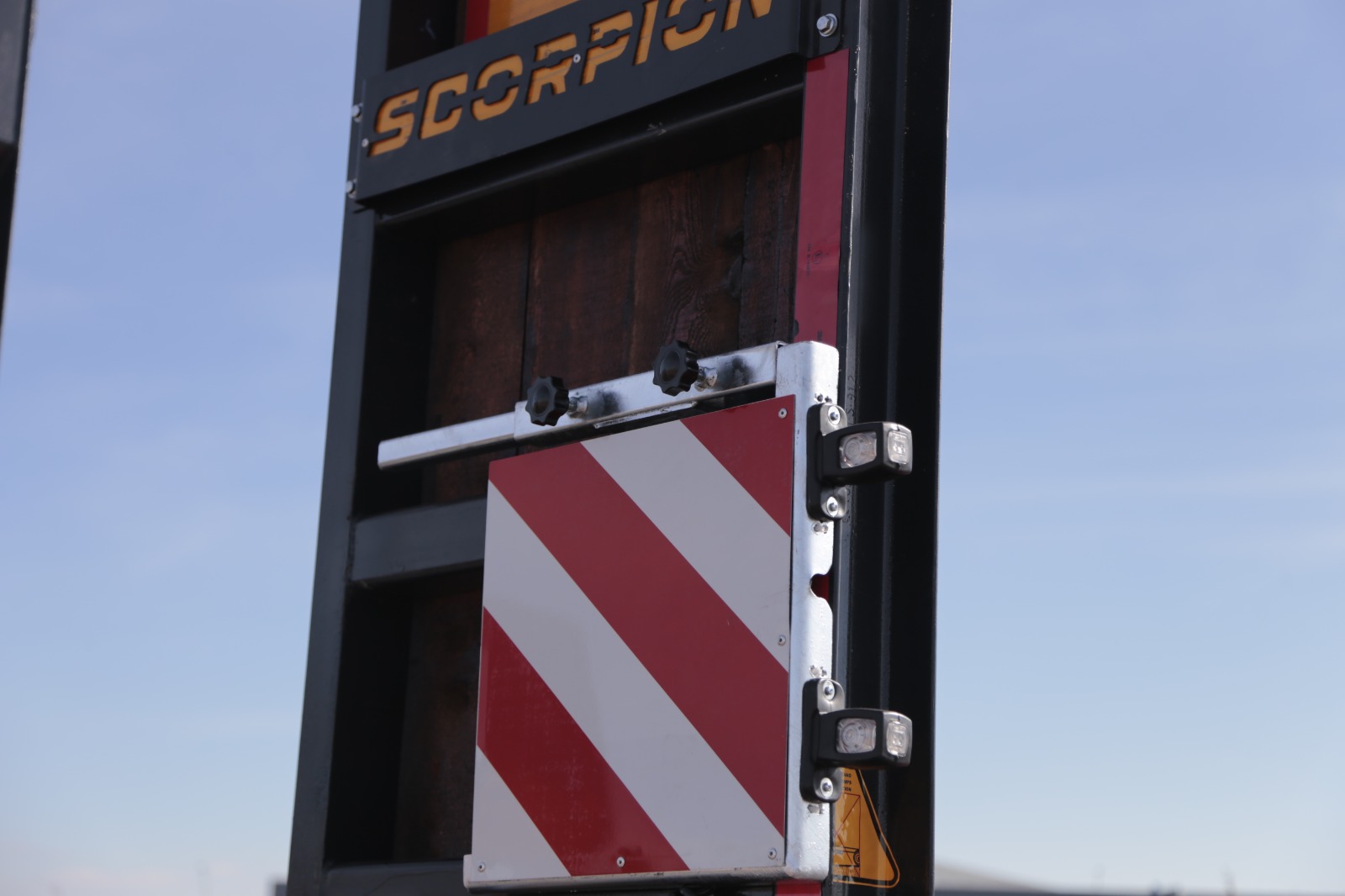

REFLECTORS:42x42mm. Reflectors and anti-spray mud laps in accordance with European Standards.

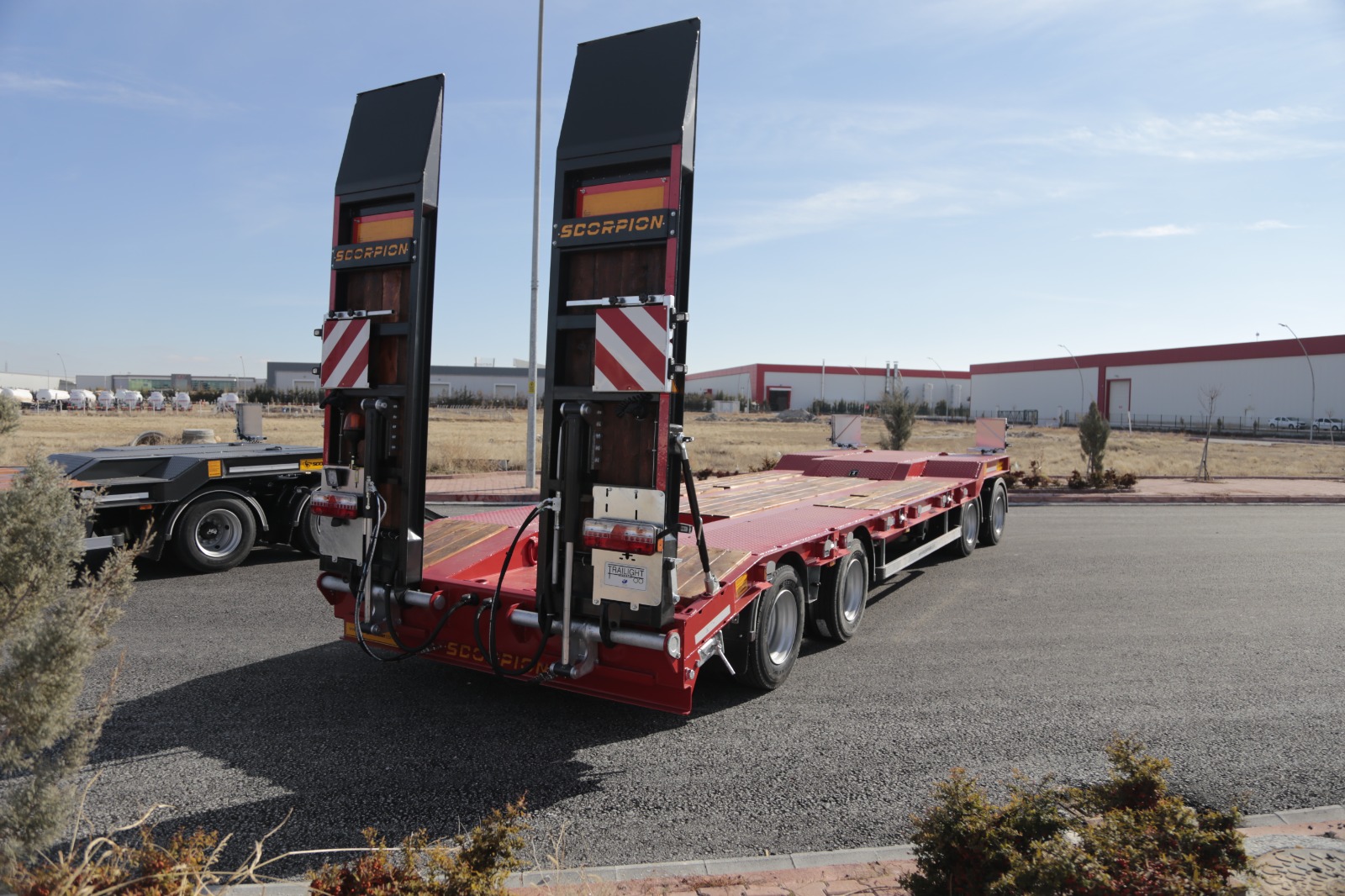

RAMPS: Sliding of ramps inside and outside, foldable ramps

SELF – STEERING AXLE

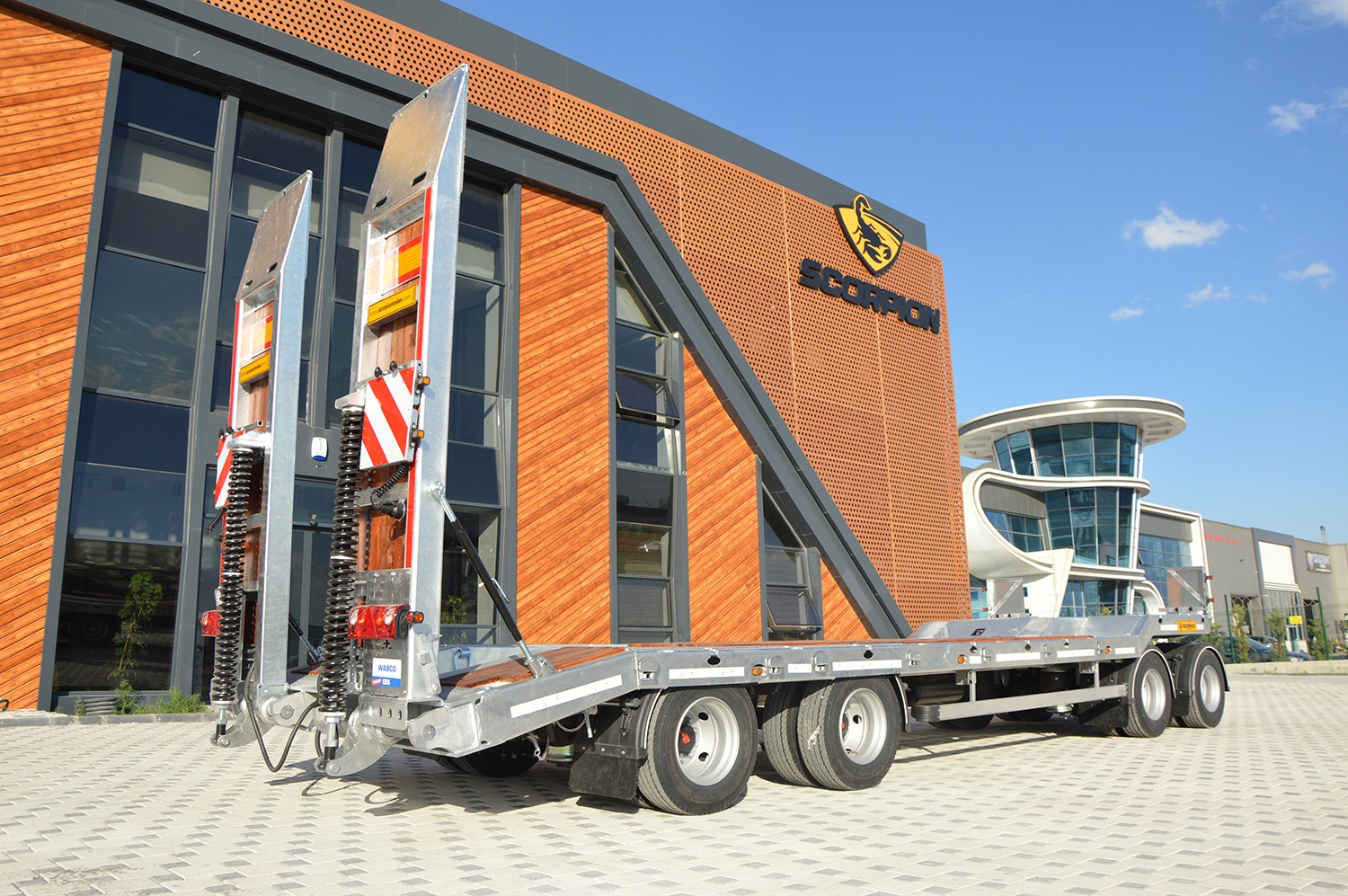

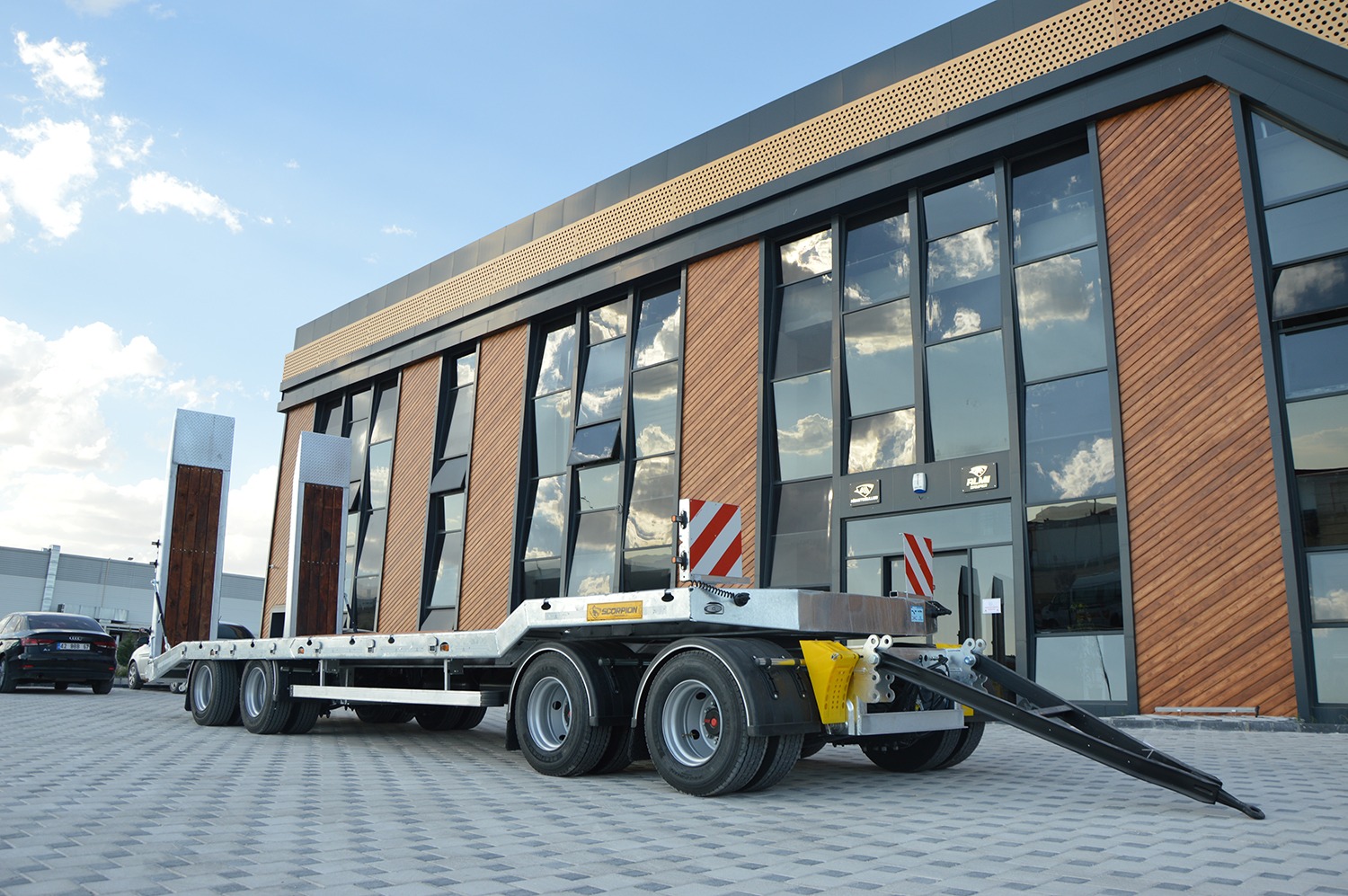

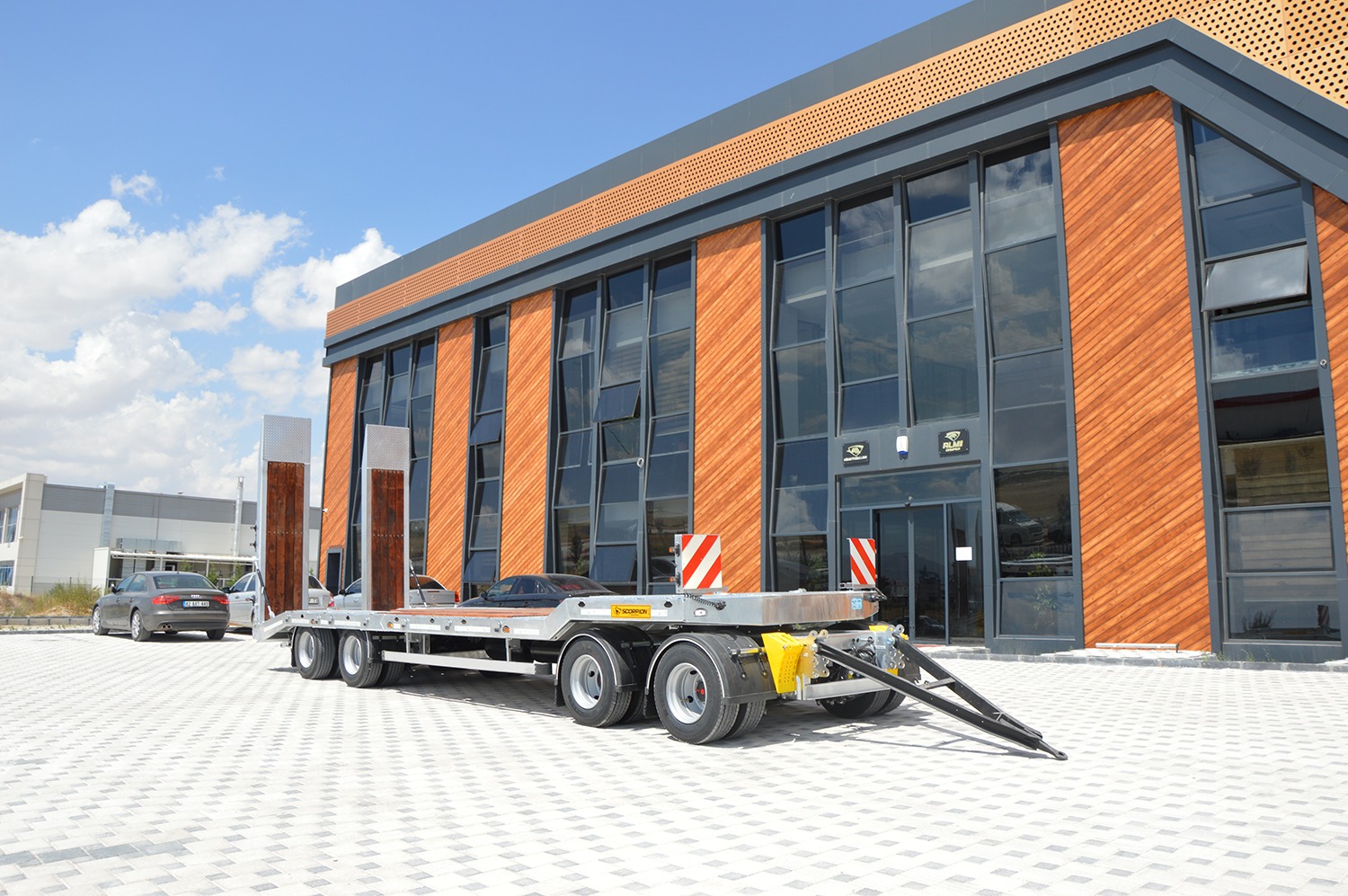

GALVANIZE:  The chassis and superstructure are immersed in the liquid zinc pool at 450 degrees C and the whole surface is covered with zinc. It provides protection against rusting and corrosion between 30 and 40 years by galvanizing.

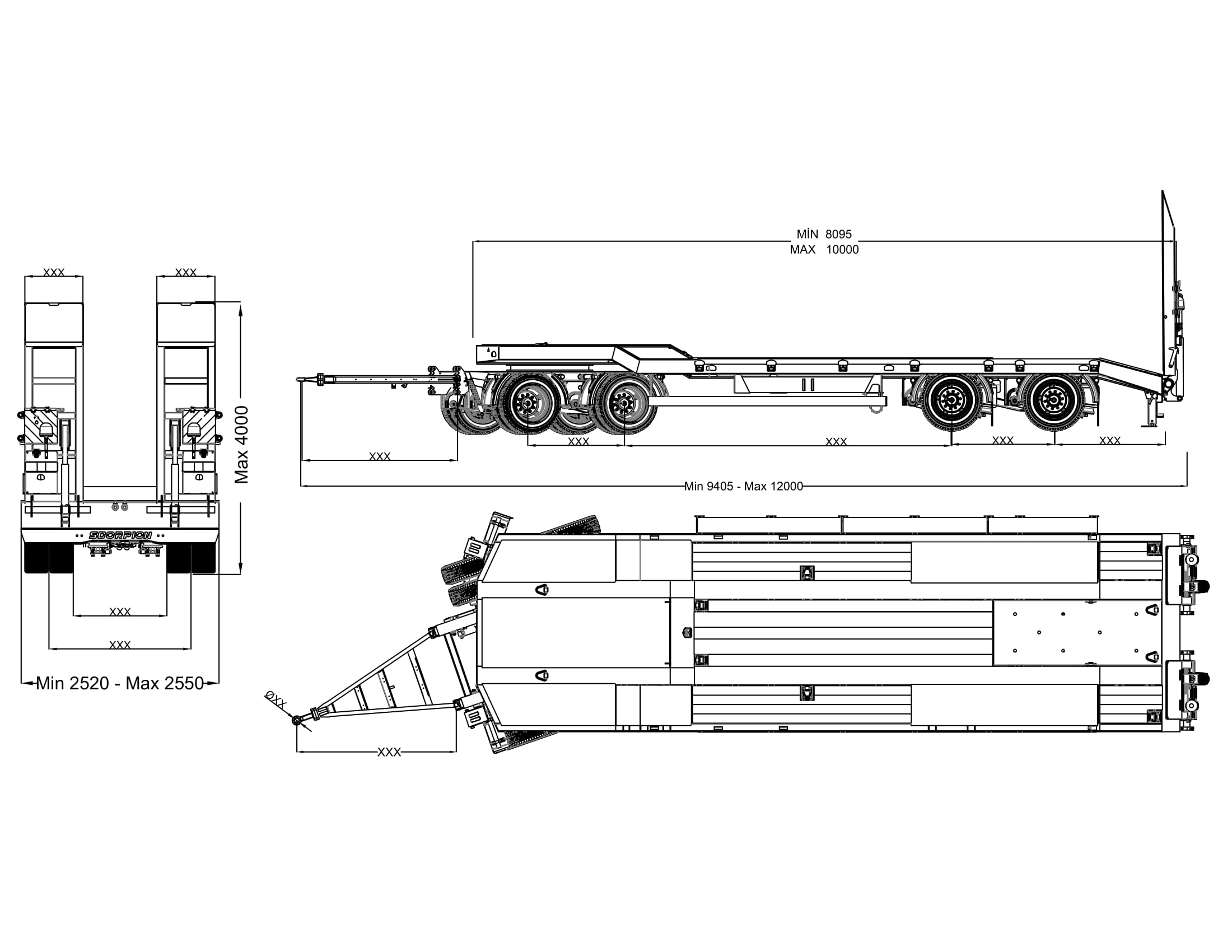

Measurements of vehicle can be designed within min./max. values in accordance with customers’ requirements.
